Tophammer Mining drill tools Drifter Drill Rod R32 3100mm

Tophammer Mining drill tools Drifter Drill Rod R32 3100mm Featured Image
  • Tophammer Mining drill tools Drifter Drill Rod R32 3100mm
  • Tophammer Mining drill tools Drifter Drill Rod R32 3100mm
  • Tophammer Mining drill tools Drifter Drill Rod R32 3100mm

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO


Product Detail

Product Tags

Product Detail

Condition: New Processing Type Forging
Applicable Industries: Energy & Mining, Underground Drilling And Surface Drilling Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
Video outgoing-inspection Provided Quality 100% quality similarity world top class brands
Machinery Test Report Provided Advantages high quality and factory prices
Marketing Type Ordinary Product Boby type Normal type or retrac type
Brand Name JCDRILL Thread R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
Type Thread Button Bit Tungsten carbide Spherical, ballistic,Conical,Hemispherical
Machine Type Drilling Tool Fact type Drop Center, Flat Face, Convex, Concave, etc
Material Carbon steel

Product Features

Introduction

Male/Male rod,Male/Female(M/F)Rod-Speed rod M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/F drill steel provides more rigid connections and is easier to uncouple and handle. The service life also tends to be better than with separate couplings.
For Extension Rod and M/F steel process, the below two different types of heat treatment are used to strengthen high speed and powerful percussive drill string components to maximize their performance and reliability.-Cannibalization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of the rod. - High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen thread life.

 Advantages:
Compared with the oversea brands, our advantages are bellowing:
•  Our products can match over 95% against the original products
•  Price are competitive against the famous brands and best quality against the small factory

Applications:

• Underground mining

• Tunneling,quarrying

• Widely used in benching, and long hole drilling

R32
Drifting and Tunneling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
41 1 5/8 2x9 4x9 35° 1 1 0.6
41 1 5/8 2x8 5x9 35° 1 1 0.7
43 1 2/3 2x9 5x9 35° 1 2 0.7
43 1 2/3 2x9 5x10 35° 1 1 0.7
43 1 2/3 2x9 6x9 40° 2 0.7
45 1 3/4 2x9 5x11 30° 1 1 0.8
45 1 3/4 2x9 6x10 35° 2 0.8
45 1 3/4 3x8 6x10 30° 3 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
48 1 7/8 2x9 6x10 30° 3 0.9
51 2 2x10 5x11 35° 1 1 1.0
51 2 2x10 6x10 40° 2 1.0
51 2 3x9 6x10 35° 3 1.0
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
76 3 4x11 8x11 40° 2 2.6
 2 Parabolic Buttons
41 1 5/8 2x8 5x9 40° 1 1 0.7
43 1 2/3 2x9 5x9 40° 1 2 0.7
43 1 2/3 2x9 5x10 40° 2 0.7
43 1 2/3 2x9 6x9 40° 3 1 0.7
45 1 3/4 2x9 5x11 30° 1 2 0.8
45 1 3/4 2x9 6x10 40° 2 2 0.8
45 1 3/4 3x8 6x10 40° 3 1 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 2x10 6x10 40° 2 1
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 cross 41 1 5/8 16x10 1 4 0.7
43 1 2/3 16x10 1 4 0.8
45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 18x13 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 rod 2400 7'10'' 32 1 1/4 15.3
3090 10'11/2'' 32 1 1/4 19.8
3400 11'13/4'' 32 1 1/4 21.7
4000 13'13/8'' 32 1 1/4 25.5
4310 14'11/2'' 32 1 1/4 27.5
4920 16'11/2'' 32 1 1/4 31.3
5530 18'11/2'' 32 1 1/4 35.2
3090 10'11/2'' 35 1 3/8 24
3700 12'11/2'' 35 1 3/8 28.7
4000 13'13/8'' 35 1 3/8 31.1
4310 14'11/2'' 35 1 3/8 33.4
4920 16'11/2'' 35 1 3/8 37.8
5530 18'11/2'' 35 1 3/8 42.9
6100 20' 35 1 3/8 47.3
3700 12'11/2'' 35 1 3/8 29
4310 14'11/2'' 35 1 3/8 34.1
4920 16'11/2'' 35 1 3/8 38.8
5530 18'11/2'' 35 1 3/8 43.6
6400 21' 35 1 3/8 50.3
Coupling Length Dimaeter Thread Weight
mm inch mm inch （KG）
 Coupling 170 6 3/4 55 2  5/32 R38 1.8
190 7 1/2 55 2  5/32 T38 2
150 6 1/8 45 1 3/4 R25-R32 1.1
160 6 1/4 45 1 3/4 R25-R32 1.2
160 6 1/4 45 1 3/4 R28-R32 1.2
160 6 1/4 55 2  5/32 R32-R38 1.8
170 6 3/4 55 2  5/32 R32-R38 2
180 71/16 55 2  5/32 R32-R38 2.2
210 8 1/4 55 2  5/32 R32-R38 2.8
170 6 3/4 56 2 1/8 R32-T38 2.1
180 71/16 56 2 1/8 R32-T38 2.2
210 8 1/4 56 2 1/8 R32-T38 2.8
190 7 1/2 63 2 33/64 R32-T45 3.2
Bench Drilling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
48 1 7/8 2x9 5x11 35° 1 2 1
48 1 7/8 3x8 6x10 40° 3 0.9
51 1 2x10 5x11 35° 1 2 1
51 2 3x9 6x10 35° 3 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 3x11 6x12 30° 3 1.6
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
70 3 4x11 8x11 40° 2 2.6
76 3 4x11,1x11 8x11 35° 2 2.6
 2 Parabolic Buttons
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 3 45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 16x10 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 4 915 3' 32 1 1/4 5.4
1000 3'33/8'' 32 1 1/4 5.9
1220 4' 32 1 1/4 7.2
1830 6' 32 1 1/4 10.8
2435 8' 32 1 1/4 14.3
3050 10' 32 1 1/4 17.9
3660 12' 32 1 1/4 21.5
 5 915 3' 32 1 1/4 6.2
1000 4' 32 1 1/4 8
1220 5' 32 1 1/4 9.8
1830 6' 32 1 1/4 11.6
2435 8' 32 1 1/4 15.1
3050 10' 32 1 1/4 18.7
3660 12' 32 1 1/4 22.3
 6 3050 10' 39 1 1/2 27
3660 12' 39 1 1/2 32
 7 1220 4' 46 1 3/4 10
1525 5' 46 1 3/4 12.5
1830 6' 46 1 3/4 14.2
3050 10' 46 1 3/4 25
Coupling Length Dimaeter Weight
mm inch mm inch （KG）
 8 150 6 1/8 44 1 3/4 1
160 6 1/4 44 1 3/4 1.1

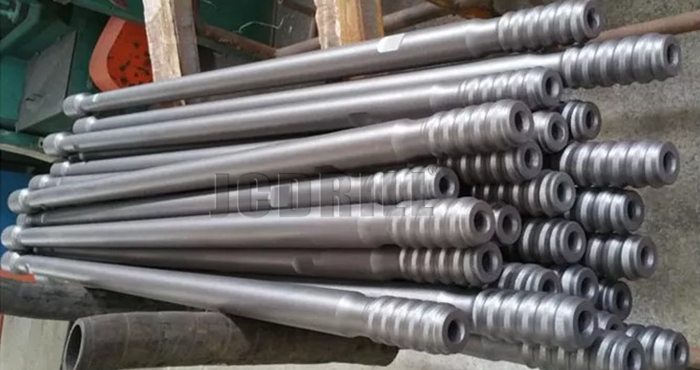

Threaded Drill Rods (14) Threaded Drill Rods (15)

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
