| Condition | New | Color | black or Customized |
| Applicable Industries | Construction works , Energy & Mining, Tunneling | Diameter | 45MM-76MM |
| Video outgoing-inspection | Provided | Thread Type | R25,R28,R32,R38,T38,T45,T51 |

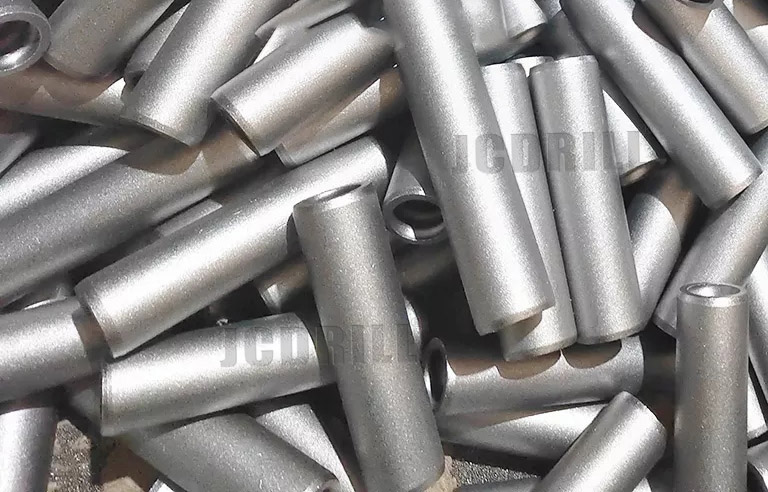

| Machinery Test Report | Provided | Key words | Coupling Sleeve |
| Brand Name | Jcdrill | Application | Mining / Quarrying / Tunneling/Blasting |
| Type | Drill Sleeve | Length | 150MM-235MM |
| Machine Type | Drilling Tool | Formation | Hard / Medium hard / Soft Rock Formation |
| Material | Carbide | Bridge type | Semi-bridge / Full-bridge |
| Processing Type | Forging | Raw Material | High quality alloy steel |
| Use | Mining |
Product Range:
Jcdrill supplies a complete series of drilling equipment and rock drilling tools, including DTH hammers, DTH bits, drilling
rods, casing pipes, breakout benches, RC hammers and bits. In addition, top hammer tools are also offered. They are threaded bits, threaded drilling rods, shank adapters, coupling sleeves, etc.
| T60 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 92 | 3 5/8 | 4x13,1x13 | 8x13 | 35° | 4 | 5.3 | ||
| 96 | 3 3/4 | 4x13,1x13 | 8x14 | 35° | 4 | 5.6 | ||
| 102 | 4 | 9x11 | 9x13 | 35° | 3 | 6 | ||
| 115 | 4 1/2 | 10x12 | 9x14 | 35° | 3 | 6.8 | ||
| 127 | 5 | 10x13 | 9x14 | 35° | 3 | 7.5 | ||
| 140 | 5 1/5 | 10x14 | 9x16 | 35° | 3 | 9 | ||
| 152 | 6 | 12x14 | 9x16 | 35° | 3 | 10.6 | ||
| Parabolic Buttons | ||||||||
| 92 | 1 5/8 | 4x13,1x13 | 8x13 | 35° | 1 | 5.3 | ||
| 96 | 1 2/3 | 4x13,1x13 | 8x14 | 35° | 1 | 5.6 | ||
| 102 | 1 2/3 | 9x11 | 9x13 | 35° | 2 | 6 | ||
| 115 | 1 2/3 | 10x12 | 9x14 | 35° | 3 | 6.8 | ||
| 127 | 1 3/4 | 10x13 | 9x14 | 35° | 1 | 7.5 | ||
| 140 | 1 3/4 | 10x14 | 9x16 | 35° | 2 | 9 | ||
| 152 | 1 3/4 | 12x14 | 9x16 | 35° | 3 | 10.6 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
3660 | 12' | 60 | 2 3/8 | 73.9 | |||
| 4265 | 14' | 60 | 2 3/8 | 85.5 | ||||
| 6095 | 20' | 60 | 2 3/8 | 116.6 | ||||
| 4265 | 14' | 60 | 2 1/2 | 95 | ||||
 |
3660 | 12' | 60 | 2 3/8 | 73.9 | |||
| 4265 | 14' | 60 | 2 3/8 | 85.5 | ||||
| 6095 | 20' | 60 | 2 3/8 | 116.6 | ||||
 |
1660 | 5'3'' | 87 | 3 1/2 | 39 | |||
| 4265 | 14' | 87 | 3 1/2 | 99 | ||||
| 5335 | 17'6'' | 76 | 3 | 124.9 | ||||
 |
3660 | 12' | 87 | 3 1/2 | 87.8 | |||
| 4265 | 14' | 87 | 3 1/2 | 99 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
