T51 Threaded Coupling Sleeve High Wear Resistance Full Bridge For Extension Rod

Short Description:

Product Name:	Thread crossover coupling sleeve
Thread	R25,R28,R32,R3212,T38,T45,
Diameter	45mm-63mm (or 1 3/8 inch to 1 7/9 inch)
Length	150mm-210mm (or 6 inch to 8 1/4 inch)
Material:	High strength alloy steel bar
Type	full-bridge, semi-bridge etc.
Color	Yellow, Gold, Black or based on customer requirements.
MOQ:	No MOQ required for testing and trial order

Send email to us

Product Detail

Product Tags

Product Detail

Condition	New	Color	black or Customized
Applicable Industries	Construction works , Energy & Mining, Tunneling	Diameter	45MM-76MM
Video outgoing-inspection	Provided	Thread Type	R25,R28,R32,R38,T38,T45,T51
Machinery Test Report	Provided	Key words	Coupling Sleeve
Brand Name	Jcdrill	Application	Mining / Quarrying / Tunneling/Blasting
Type	Drill Sleeve	Length	150MM-235MM
Machine Type	Drilling Tool	Formation	Hard / Medium hard / Soft Rock Formation
Material	Carbide	Bridge type	Semi-bridge / Full-bridge
Processing Type	Forging	Raw Material	High quality alloy steel
Use	Mining

Product Features

Introduction

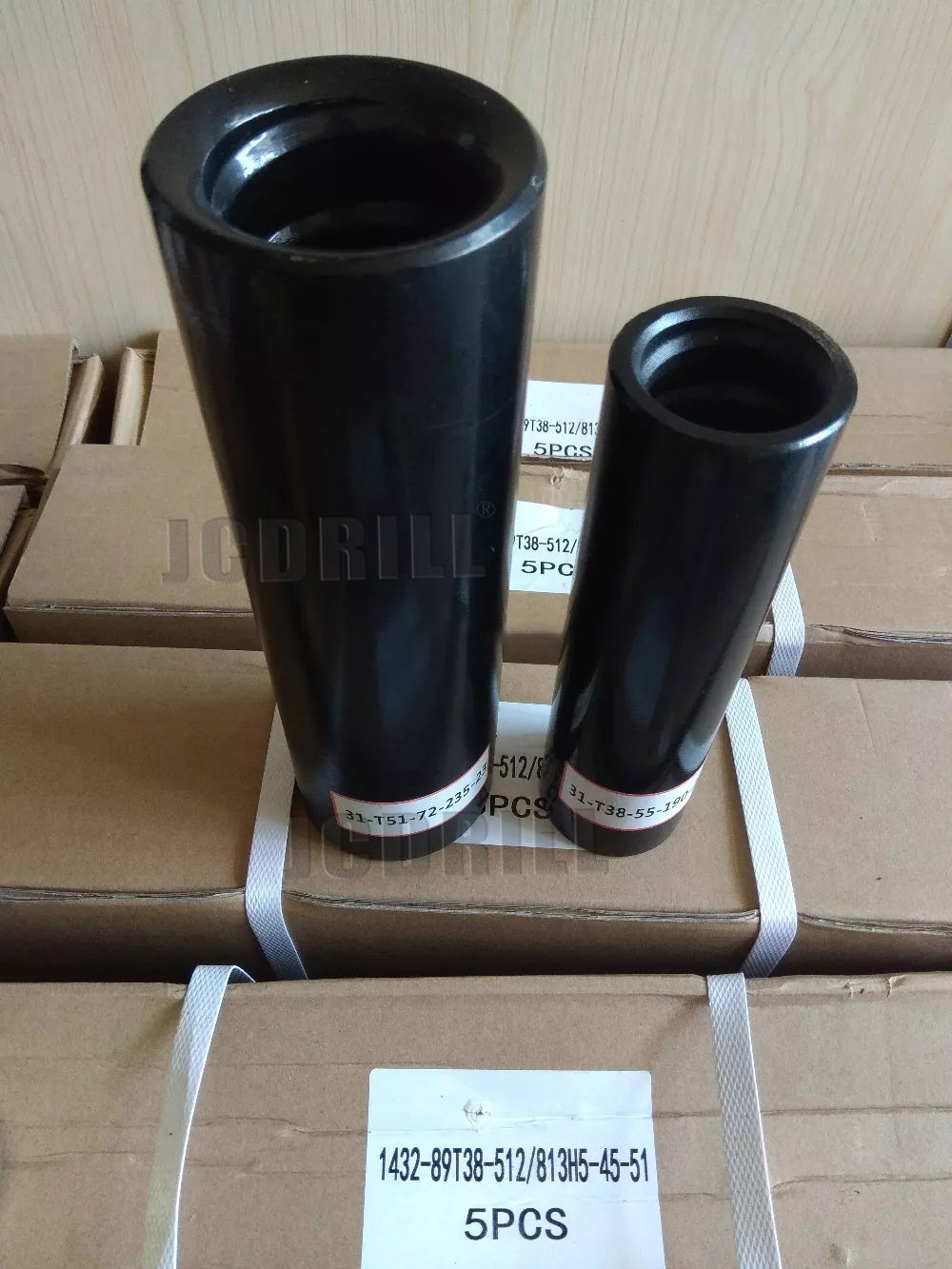

T51 Threaded Coupling Sleeve High Wear Resistance Full Bridge For Extension Rod

Full Bridge T51 Threaded Coupling Sleeve For Bench Drilling High Wear Resistance

Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission.
Coupling sleeves are also used to connect several rods to each other in the same way. Coupling sleeves have a middle stop to prevent over-threading on to the drill rod.

Thread: R22, R25, R28, R32, T38, T45, T51,
Function: Coupling sleeve, Adapter Coupling
Type: Full-bridge, Semi-bridge

Basic Information

Product Name:	Thread coupling sleeve
Thread	R25,R28,R32,T38,T45,T51
Diameter	35mm-77mm (or 1 3/8 inch to 3 inch)
Length	150mm-235mm (or 6 inch to 9 1/4 inch)
Material:	High strength alloy steel bar
Type	full-bridge, semi-bridge etc.
Color	Green, Gold, Black or based on customer requirements.
MOQ:	No MOQ required for testing and trial order

Applications

R25, R28, R32

Used in drifting and tunneling.

T38, T45, T51

Used in benching and long hole drilling.

Processing

CNC milling and proprietary heat treatment process

Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

T51
Drill Bit	Bit Dia.		NO x Button x Dia.			Flushing Hole		Weight
Drill Bit	mm	inch	Front	Gauge	Angle	Front	Side	（KG）
	spherical Buttons
	89	3 1/2	4x13	8x13	40°	2		4.9
	89	3 1/2	5x13	8x13	35°	2	1	4.9
	89	3 1/2	3x11,2x11		35°	4		4.9
	89	3 1/2	4x11,1x11	8x13	35°	4		4.9
	102	3 1/2	4x13,1x13	8x13	35°	4		4.9
	102	4	4x14	8x14	40°	2		5.8
	102	4	6x13	8x16	35°	2	1	5.8
	102	4	3x13,2x13	6x14	35°	3	1	5.8
	102	4	4x13,1x13	8x14	35°	4		5.8
	115	4	4x13,2x13	8x13	35°	4	1	5.8
	115	4 1/2	6x14	8x14	35°	2		6.8
	115	4 1/2	6x14	8x16	35°	2		6.8
	115	4 1/2	4x13,2x13	8x14	35°	4		6.8
	115	4 1/2	4x13,3x13	8x14	35°	4		6.8
	115	4 1/2	4x14,2x14	8x16	35°	4		6.8
	127	5	8x14	8x16	35°	2	1	7.5
	127	5	4x16,2x13	8x16	35°	4		7.5
	127	5	4x14,3x14	8x14	35°	4		7.5
	Parabolic Buttons
	89	3 1/2	5x13	8x13	35°	2	1	4.9
	89	3 1/2	3x11,2x11	6x13	35°	4		4.9
	89	3 1/2	4x11,1x11	8x13	35°	4		4.9
	89	3 1/2	4x13,1x13	8x13	35°	4		4.9
	102	4	4x14	8x14	40°	2		5.8
	102	4	6x13	8x16	35°	2	1	5.8
	102	4	3x13,2x13	6x14	35°	3	1	5.2
	102	4	4x13,1x13	8x14	35°	4		5.8
	102	4	4x13,2x13	8x13	35°	4	1	5.8
	115	4 1/2	6x14	8x16	35°	2		6.8
	115	4 1/2	4x13,2x13	8x14	35°	4		6.8
	115	4 1/2	4x13,3x13	8x14	35°	4		6.8
	115	4 1/2	4x14,2x14	8x16	35°	4		6.8
Drill Roll				Length		Dimaeter		Weight
Drill Roll				mm	inch	mm	inch	（KG）
				3050	10'	52	2	45.3
				3660	12'	52	2	54.1
				4270	14'	52	2	63
				4880	16'	52	2	71.8
				5530	18'	52	2	81.2
				6095	20'	52	2	89.4
				1525	5'	52	2	26.2
				1830	6'	52	2	30.6
				3050	10'	52	2	48.3
				3660	12'	52	2	57.1
				4270	14'	52	2	66
				4880	16'	52	2	74.8
				5530	18'	52	2	84.2
				6095	20'	52	2	92.4
Coupling				Length		Dimaeter		Weight
Coupling				mm	inch	mm	inch	（KG）
				225	8 7/8	71	2 51/64	4.6
				225	8 7/8	76	3	4.8
				235	9 1/4	72	2 7/8	4.7
				235	9 1/4	77	3	4.9


Commercial Terms of Product

Minimum Order Quantity	N/A
Price
Packaging Details	Standard Export Delivery Package
Delivery Time	7days
Payment Terms	T/T
Supply Ability	Based on Detailed Order
