T51 Extension Rod Speed Rod MF drill rod

T51 Extension Rod Speed Rod MF drill rod Featured Image
  • T51 Extension Rod Speed Rod MF drill rod
  • T51 Extension Rod Speed Rod MF drill rod
  • T51 Extension Rod Speed Rod MF drill rod

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO


Product Detail

Product Tags

Product Detail

Condition New Material Carbon steel
Applicable Industries Construction works , Energy & Mining Processing Type Forging
Video outgoing-inspection Provided Use Ore Mining
Machinery Test Report Provided Product name R25 - Hex25 - R25 drifter drill rod
Marketing Type Hot Product 2022 Application tunneling, mining
Brand Name JCDRILL Usage top hammer drilling
Type drill rod Name tunneling drill rod
Machine Type Drilling Equipment Word mining drill rod

Product Features

Extension rods are made by hollow drill steels. This hollow hole are usually named flushing hole, used for transmitting water or air during drilling.

And the threads can be used for connecting couplings, shanks, couplings or bits.

Body Type:

There are two shapes of extension rods, round type and hexagonal type.

Hexagon rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing.

Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications.

Thread Type:

Usually for extension rods, there are R32, T38, T45, T51, ST58, T60 threads,

and different lengths of rods are available from 600mm to 6400mm usually.

T51

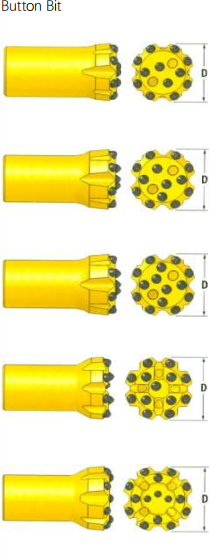

Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
89 3 1/2 4x13 8x13 40° 2 4.9
89 3 1/2 5x13 8x13 35° 2 1 4.9
89 3 1/2 3x11,2x11 35° 4 4.9
89 3 1/2 4x11,1x11 8x13 35° 4 4.9
102 3 1/2 4x13,1x13 8x13 35° 4 4.9
102 4 4x14 8x14 40° 2 5.8
102 4 6x13 8x16 35° 2 1 5.8
102 4 3x13,2x13 6x14 35° 3 1 5.8
102 4 4x13,1x13 8x14 35° 4 5.8
115 4 4x13,2x13 8x13 35° 4 1 5.8
115 4 1/2 6x14 8x14 35° 2 6.8
115 4 1/2 6x14 8x16 35° 2 6.8
115 4 1/2 4x13,2x13 8x14 35° 4 6.8
115 4 1/2 4x13,3x13 8x14 35° 4 6.8
115 4 1/2 4x14,2x14 8x16 35° 4 6.8
127 5 8x14 8x16 35° 2 1 7.5
127 5 4x16,2x13 8x16 35° 4 7.5
127 5 4x14,3x14 8x14 35° 4 7.5
Parabolic Buttons
89 3 1/2 5x13 8x13 35° 2 1 4.9
89 3 1/2 3x11,2x11 6x13 35° 4 4.9
89 3 1/2 4x11,1x11 8x13 35° 4 4.9
89 3 1/2 4x13,1x13 8x13 35° 4 4.9
102 4 4x14 8x14 40° 2 5.8
102 4 6x13 8x16 35° 2 1 5.8
102 4 3x13,2x13 6x14 35° 3 1 5.2
102 4 4x13,1x13 8x14 35° 4 5.8
102 4 4x13,2x13 8x13 35° 4 1 5.8
115 4 1/2 6x14 8x16 35° 2 6.8
115 4 1/2 4x13,2x13 8x14 35° 4 6.8
115 4 1/2 4x13,3x13 8x14 35° 4 6.8
115 4 1/2 4x14,2x14 8x16 35° 4 6.8
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 2 3050 10' 52 2 45.3
3660 12' 52 2 54.1
4270 14' 52 2 63
4880 16' 52 2 71.8
5530 18' 52 2 81.2
6095 20' 52 2 89.4
 3 1525 5' 52 2 26.2
1830 6' 52 2 30.6
3050 10' 52 2 48.3
3660 12' 52 2 57.1
4270 14' 52 2 66
4880 16' 52 2 74.8
5530 18' 52 2 84.2
6095 20' 52 2 92.4
Coupling Length Dimaeter Weight
mm inch mm inch （KG）
 4 225 8 7/8 71 2 51/64 4.6
225 8 7/8 76 3 4.8
235 9 1/4 72 2 7/8 4.7
235 9 1/4 77 3 4.9

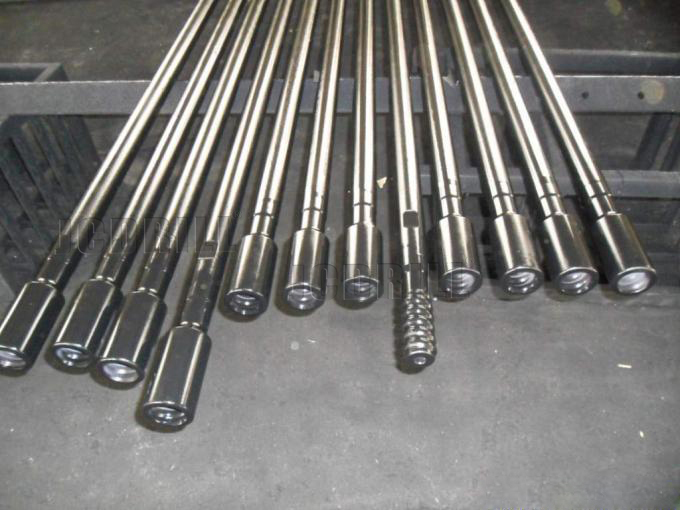

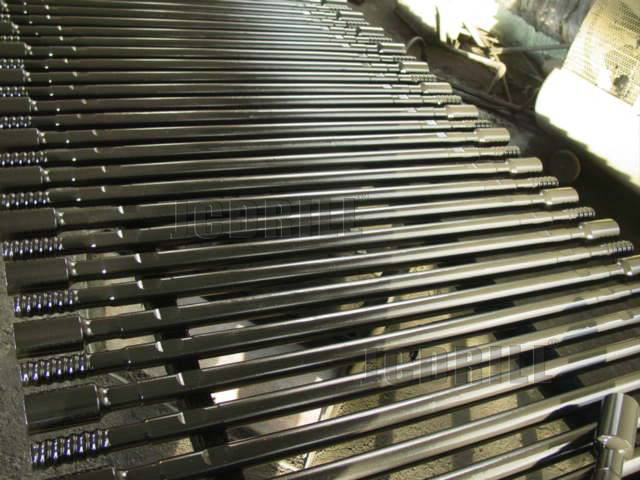

Threaded Drill Rods (25) Threaded Drill Rods (24)
