| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |
Introduction
We are a professional productions base of series of rock drilling tools, mining tools, DTH Drill tools. Construction tools and excavating coal pick cutter tools, we can also produce other products according to the customers requirements. We sincerely welcome our friends of both home and abroad to come for business talks.

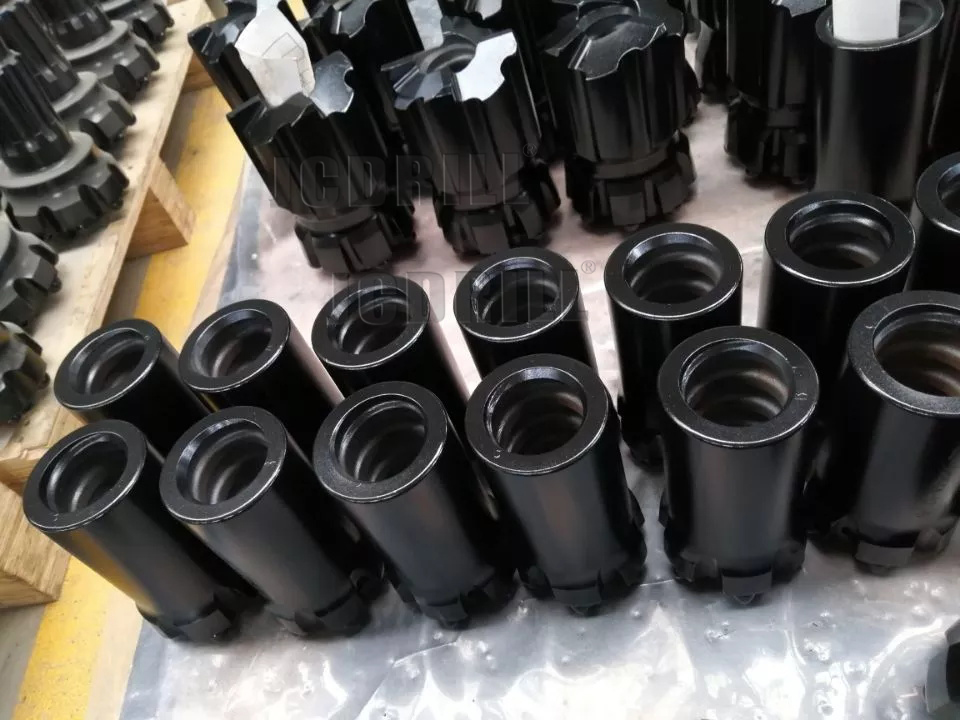

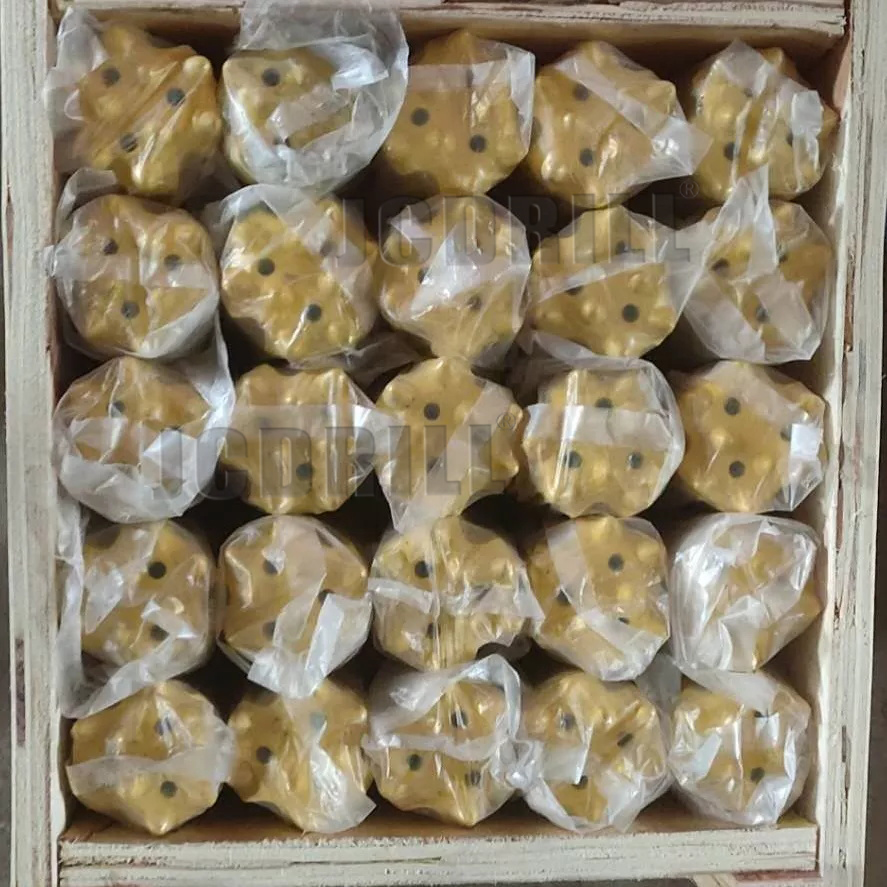

| Product Name: | Button bit for rock drilling tool |
| Description: | Thread button bits made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands |
| Material: | carbide+steel |
| MOQ: | 10PCS |
| Thread type | R22,R25,R28,R32,R38,T38,T45,T51 |
| Diameter | 38mm-127mm |
| Use | Mining and drilling |
| Color | According to the your requirement |
Rock drill bits of premium designs and steel and premium tungsten carbide insert grade T6 supplied rock drilling tools manufacturer ProDrill threaded button bits offers industry-leading strength and penetration rates for more productivity, excellent straightness and hole clean quality, get max drilling performance for rock drill with long life to save up fuel cost rate. Prodrill R32-51 is specially designed for hard stone rock formation.
For Tunneling is suitable for mining,quarrying,tunneling and so on. It is widely used for ground drilling and underground drilling
| T38 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 64 | 2 1/2 | 3x11 | 6x12 | 35° | 3 | 1.8 | ||
| 64 | 2 1/2 | 4x10,1x10 | 8x10 | 40° | 2 | 1.6 | ||
| 64 | 2 1/2 | 3x10,1x10 | 6x11 | 35° | 3 | 1.7 | ||
| 70 | 2 3/4 | 4x11 | 8x11 | 40° | 2 | 1.9 | ||
| 70 | 2 3/4 | 4x10,1x10 | 8x11 | 30° | 4 | 1.9 | ||
| 70 | 2 3/4 | 3x10,1x10 | 6x12 | 35° | 3 | 1.8 | ||
| 76 | 3 | 4x11 | 8x11 | 40° | 2 | 2.4 | ||
| 76 | 3 | 5x11 | 8x13 | 35° | 2 | 1 | 2.4 | |
| 76 | 3 | 3x11,1x11 | 6x12 | 35° | 3 | 1 | 2.6 | |
| 76 | 3 | 4x11,1x11 | 8x12 | 35° | 4 | 2.6 | ||
| 76 | 3 | 4x11,1x11 | 8x11 | 40° | 4 | 2.6 | ||
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | 3.3 | ||
| 89 | 3 1/2 | 5x13 | 8x13 | 35° | 2 | 3.3 | ||
| 89 | 3 1/2 | 6x11 | 8x12 | 35° | 2 | 3.3 | ||
| 89 | 3 1/2 | 3x11,2x11 | 6x12 | 35° | 3 | 1 | 3.3 | |
| 89 | 3 1/2 | 4x11,1x11 | 8x13 | 35° | 4 | 3.3 | ||
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 3.3 | ||
 |
Parabolic Buttons | |||||||
| 64 | 2 1/2 | 3x11 | 6x12 | 35° | 3 | 1.8 | ||
| 64 | 2 1/2 | 4x10 | 8x10 | 40° | 2 | 1.6 | ||
| 64 | 2 1/2 | 3x10,1x10 | 6x11 | 35° | 3 | 1.7 | ||
| 70 | 2 3/4 | 4x11 | 8x11 | 40° | 2 | 1.9 | ||
| 70 | 2 3/4 | 3x10,1x10 | 6x12 | 35° | 3 | 1.9 | ||
| 76 | 3 | 4x11 | 8x11 | 40° | 2 | 2.4 | ||
| 76 | 3 | 5x11 | 8x13 | 35° | 2 | 1 | 2.4 | |
| 76 | 3 | 3x11,1x11 | 6x13 | 35° | 3 | 1 | 2.6 | |
| 76 | 3 | 4x11,1x11 | 8x12 | 35° | 4 | 2.6 | ||
| 76 | 3 | 4x11,1x11 | 8x11 | 40° | 4 | 2.6 | ||
| 89 | 3 1/2 | 5x13 | 8x13 | 35° | 2 | 3.3 | ||
| 89 | 3 1/2 | 6x11 | 8x12 | 35° | 2 | 3.3 | ||
| 89 | 3 1/2 | 3x11,1x11 | 6x13 | 35° | 3 | 1 | 3.3 | |
| 89 | 3 1/2 | 4x11,1x11 | 8x13 | 35° | 4 | 3.3 | ||
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 3.3 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |

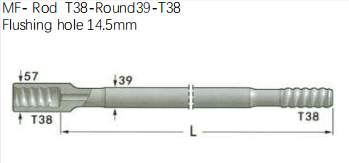

1220 | 4' | 39 | 1 1/2 | 10.2 | |||
| 1525 | 5' | 39 | 1 1/2 | 12.8 | ||||
| 1830 | 6' | 39 | 1 1/2 | 15.3 | ||||
| 2435 | 8' | 39 | 1 1/2 | 20.4 | ||||
| 3050 | 10' | 39 | 1 1/2 | 25.5 | ||||
| 3660 | 12' | 39 | 1 1/2 | 30.9 | ||||
| 3965 | 13' | 39 | 1 1/2 | 33.2 | ||||
| 4270 | 14' | 39 | 1 1/2 | 35.7 | ||||
| 4880 | 16 | 39 | 1 1/2 | 41 | ||||
| 5530 | 18'11/2'' | 39 | 1 1/2 | 46.3 | ||||
| 6095 | 20' | 39 | 1 1/2 | 50.9 | ||||
 |

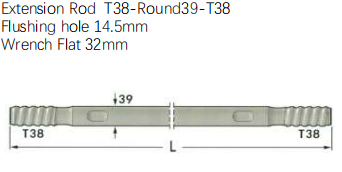

915 | 3' | 39 | 1 1/2 | 10.7 | |||
| 1220 | 4' | 39 | 1 1/2 | 13.3 | ||||
| 1525 | 5' | 39 | 1 1/2 | 15.8 | ||||
| 1830 | 6' | 39 | 1 1/2 | 18.3 | ||||
| 3050 | 10' | 39 | 1 1/2 | 28.5 | ||||
| 3660 | 12' | 39 | 1 1/2 | 33.6 | ||||
| 4270 | 14' | 39 | 1 1/2 | 38.7 | ||||
| 4880 | 16' | 39 | 1 1/2 | 43.7 | ||||
| 5530 | 18'11/2'' | 39 | 1 1/2 | 49.2 | ||||
| 6095 | 20' | 39 | 1 1/2 | 53.9 | ||||
 |

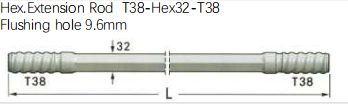

1220 | 4' | 32 | 1 1/4 | 8.6 | |||
| 1830 | 6' | 32 | 1 1/4 | 12.6 | ||||
| 2435 | 8' | 32 | 1 1/4 | 16.6 | ||||
| 3050 | 10' | 32 | 1 1/4 | 20.8 | ||||
| 3660 | 12' | 32 | 1 1/4 | 24.9 | ||||
 |

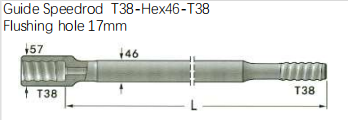

3050 | 10' | 46 | 1 3/4 | 25.7 | |||
| 3660 | 12' | 46 | 1 3/4 | 30.9 | ||||
 |
1830 | 6' | 46 | 1 3/4 | 23.5 | |||
| 3050 | 10' | 46 | 1 3/4 | 37.2 | ||||
| 3660 | 12' | 46 | 1 3/4 | 44 | ||||
| 4270 | 14' | 46 | 1 3/4 | 50.9 | ||||
| 4880 | 16' | 46 | 1 3/4 | 57.7 | ||||
| 5530 | 18'11/2'' | 46 | 1 3/4 | 65 | ||||
| 6095 | 20' | 46 | 1 3/4 | 71.3 | ||||
| Coupling | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
190 | 7 1/2 | 55 | 2 1/6 | 2.1 | |||
