| Condition | New | Material | Carbon steel |
| Applicable Industries | Construction works , Energy & Mining | Processing Type | Forging |
| Video outgoing-inspection | Provided | Use | Ore Mining |

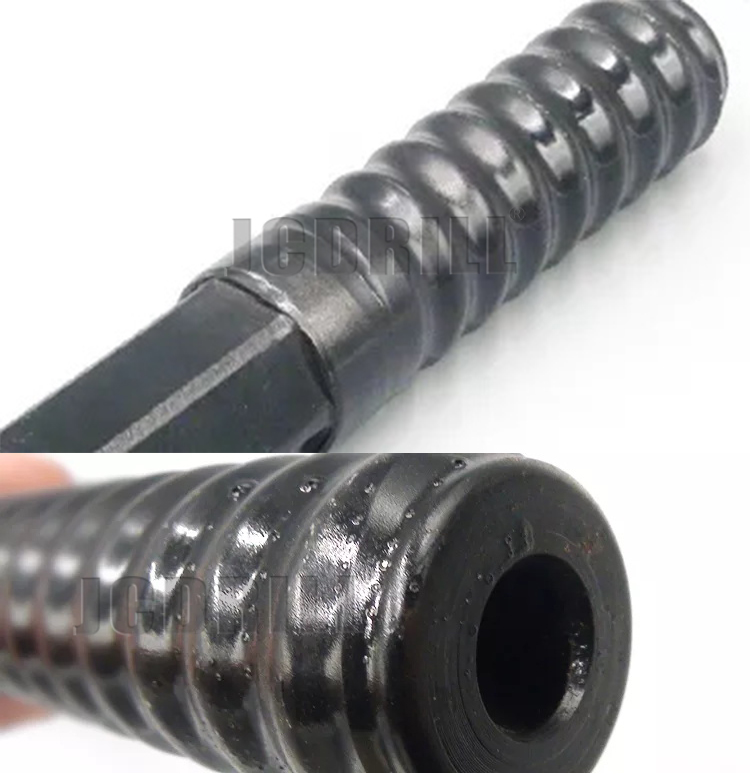

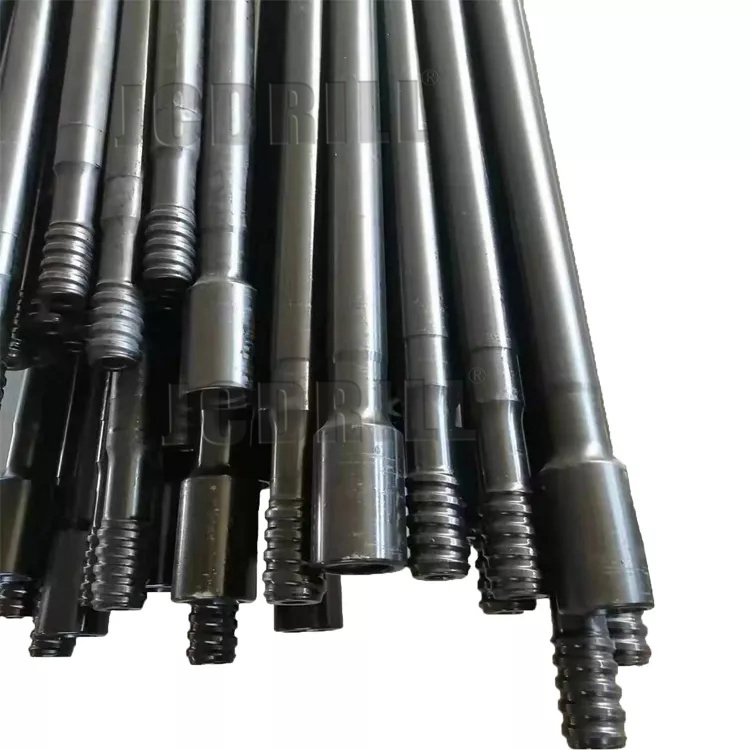

| Machinery Test Report | Provided | Product name | R25 - Hex25 - R25 drifter drill rod |
| Marketing Type | Hot Product 2022 | Application | tunneling, mining |
| Brand Name | JCDRILL | Usage | top hammer drilling |
| Type | drill rod | Name | tunneling drill rod |
| Machine Type | Drilling Equipment | Word | mining drill rod |
Description
Drill tube using ST68 thread system.
• ST68 thread system
• Widely used in drifting, tunneling, benching, and long hole drilling
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type:ST68 Drill Tube Flushing Hole 30 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
| ST68 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 102 | 4 | 6x14 | 8x14 | 35° | 2 | 8.7 | ||
| 102 | 4 | 4x12,4x12 | 10x12 | 35° | 4 | 8.7 | ||
| 105 | 4 1/8 | 6x14 | 8x14 | 35° | 2 | 8.9 | ||
| 105 | 4 1/8 | 4x12,4x12 | 8x14 | 35° | 4 | 8.9 | ||
| 105 | 4 3/8 | 6x14 | 8x16 | 35° | 2 | 9.4 | ||
| 110 | 4 3/8 | 4x14,2x14 | 8x16 | 35° | 4 | 8.9 | ||
| 110 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 9.6 | ||
| 115 | 4 1/2 | 4x14,2x14 | 8x16 | 35° | 4 | 9.5 | ||
| 115 | 4 1/2 | 4x14,4x14 | 10x14 | 35° | 4 | 9.5 | ||
| 115 | 5 | 8x14 | 9x16 | 35° | 3 | 11.0 | ||
| 127 | 5 | 4x14,3x14 | 8x16 | 35° | 4 | 10.8 | ||
| 127 | 6 | 8x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x14,3x14 | 9x16 | 35° | 3 | 16.2 | ||
| Parabolic Buttons | ||||||||
| 102 | 4 | 6x14 | 8x14 | 35° | 2 | 8.7 | ||
| 102 | 4 | 4x12,4x12 | 10x12 | 35° | 4 | 8.7 | ||
| 105 | 4 1/8 | 6x14 | 8x14 | 35° | 2 | 8.9 | ||
| 105 | 4 1/8 | 4x12,4x12 | 8x14 | 35° | 4 | 8.9 | ||
| 105 | 4 3/8 | 6x14 | 8x16 | 35° | 2 | 9.4 | ||
| 110 | 4 3/8 | 4x14,2x14 | 8x16 | 35° | 4 | 8.9 | ||
| 110 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 9.6 | ||
| 115 | 4 1/2 | 4x14,2x14 | 8x16 | 35° | 4 | 9.5 | ||
| 115 | 4 1/2 | 4x14,4x14 | 10x14 | 35° | 4 | 9.5 | ||
| 115 | 5 | 8x14 | 9x16 | 35° | 3 | 11.0 | ||
| 127 | 5 | 4x14,3x14 | 8x16 | 35° | 4 | 10.8 | ||
| 127 | 6 | 8x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x14,3x14 | 9x16 | 35° | 3 | 16.2 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
1525 | 5' | 87 | 3 4/9 | 35.5 | |||
| 1830 | 6' | 87 | 3 4/9 | 43.8 | ||||
| 3660 | 12' | 87 | 3 4/9 | 80 | ||||
| 6110 | 20' | 87 | 3 4/9 | 133 | ||||
We supply full series of high quality shank adaptors for most type of rock drills.
You can tell me the P/N or Specifications of any drill bits you are interested, I will be able to give you more details on that.
Or I can send our catalogue for you so that you can select the suitable one.
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
