| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |
Description
| Product Name: | T38 T45 T51 T60 T68 Button Bits | Color: | As Request |
| Applications: | Top Hammer Drilling Machine,rock Blasting | Face Shape: | Flat, Drop Center |
| Diameter: | 64mm-152mm | Material: | Carbide, Steel Skirt And Carbide Bit |
| High Light: | rock drill accessories
, borehole drilling tools |
||

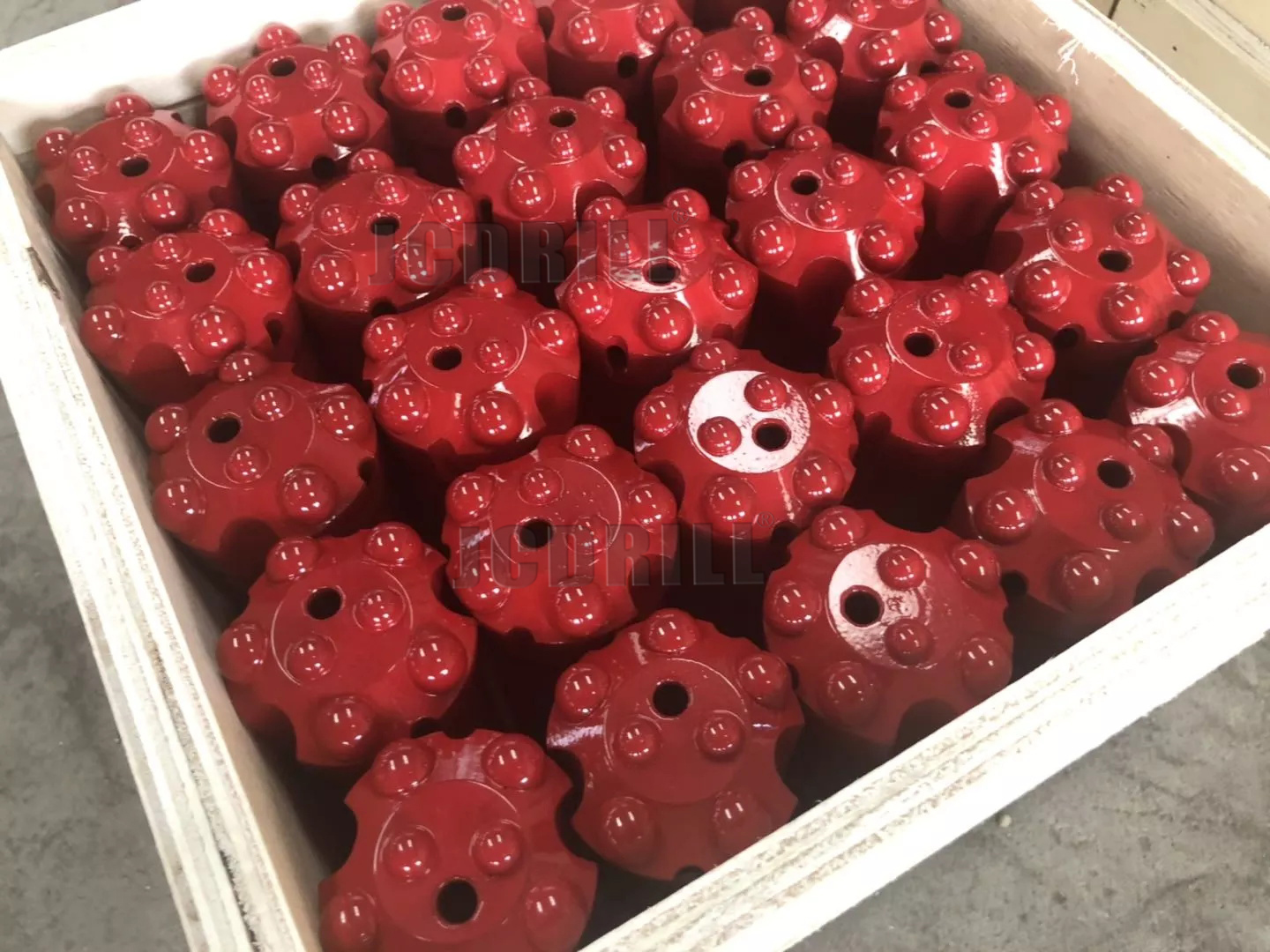

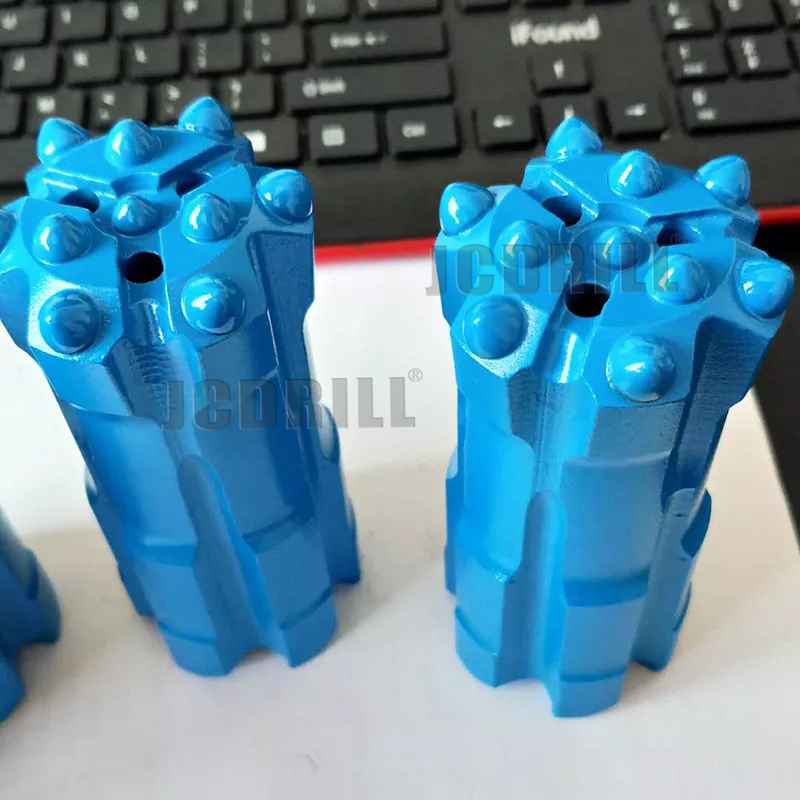

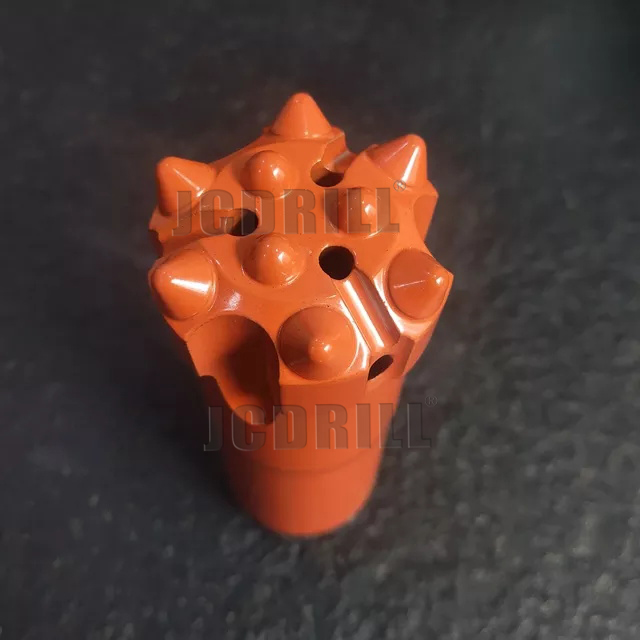

Thread Button Bits
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
(1) Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, T58, T60
(2) Diameter: 38-127mm.
Before Official Order, please confirm below informations:
(1) Thread Type
(2) Standard or Retrac
(3) Bit button shape (tip shape)--Spherical or Ballistic

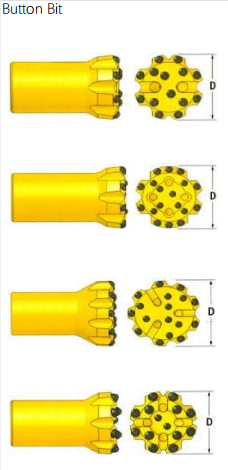

(4) Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...
| ST68 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 102 | 4 | 6x14 | 8x14 | 35° | 2 | 8.7 | ||
| 102 | 4 | 4x12,4x12 | 10x12 | 35° | 4 | 8.7 | ||
| 105 | 4 1/8 | 6x14 | 8x14 | 35° | 2 | 8.9 | ||
| 105 | 4 1/8 | 4x12,4x12 | 8x14 | 35° | 4 | 8.9 | ||
| 105 | 4 3/8 | 6x14 | 8x16 | 35° | 2 | 9.4 | ||
| 110 | 4 3/8 | 4x14,2x14 | 8x16 | 35° | 4 | 8.9 | ||
| 110 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 9.6 | ||
| 115 | 4 1/2 | 4x14,2x14 | 8x16 | 35° | 4 | 9.5 | ||
| 115 | 4 1/2 | 4x14,4x14 | 10x14 | 35° | 4 | 9.5 | ||
| 115 | 5 | 8x14 | 9x16 | 35° | 3 | 11.0 | ||
| 127 | 5 | 4x14,3x14 | 8x16 | 35° | 4 | 10.8 | ||
| 127 | 6 | 8x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x14,3x14 | 9x16 | 35° | 3 | 16.2 | ||
| Parabolic Buttons | ||||||||
| 102 | 4 | 6x14 | 8x14 | 35° | 2 | 8.7 | ||
| 102 | 4 | 4x12,4x12 | 10x12 | 35° | 4 | 8.7 | ||
| 105 | 4 1/8 | 6x14 | 8x14 | 35° | 2 | 8.9 | ||
| 105 | 4 1/8 | 4x12,4x12 | 8x14 | 35° | 4 | 8.9 | ||
| 105 | 4 3/8 | 6x14 | 8x16 | 35° | 2 | 9.4 | ||
| 110 | 4 3/8 | 4x14,2x14 | 8x16 | 35° | 4 | 8.9 | ||
| 110 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 9.6 | ||
| 115 | 4 1/2 | 4x14,2x14 | 8x16 | 35° | 4 | 9.5 | ||
| 115 | 4 1/2 | 4x14,4x14 | 10x14 | 35° | 4 | 9.5 | ||
| 115 | 5 | 8x14 | 9x16 | 35° | 3 | 11.0 | ||
| 127 | 5 | 4x14,3x14 | 8x16 | 35° | 4 | 10.8 | ||
| 127 | 6 | 8x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x16 | 9x16 | 35° | 3 | 16.2 | ||
| 152 | 6 | 9x14,3x14 | 9x16 | 35° | 3 | 16.2 | ||

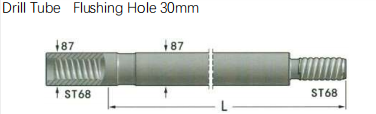

| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
1525 | 5' | 87 | 3 4/9 | 35.5 | |||
| 1830 | 6' | 87 | 3 4/9 | 43.8 | ||||
| 3660 | 12' | 87 | 3 4/9 | 80 | ||||
| 6110 | 20' | 87 | 3 4/9 | 133 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
