| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |
Introduction

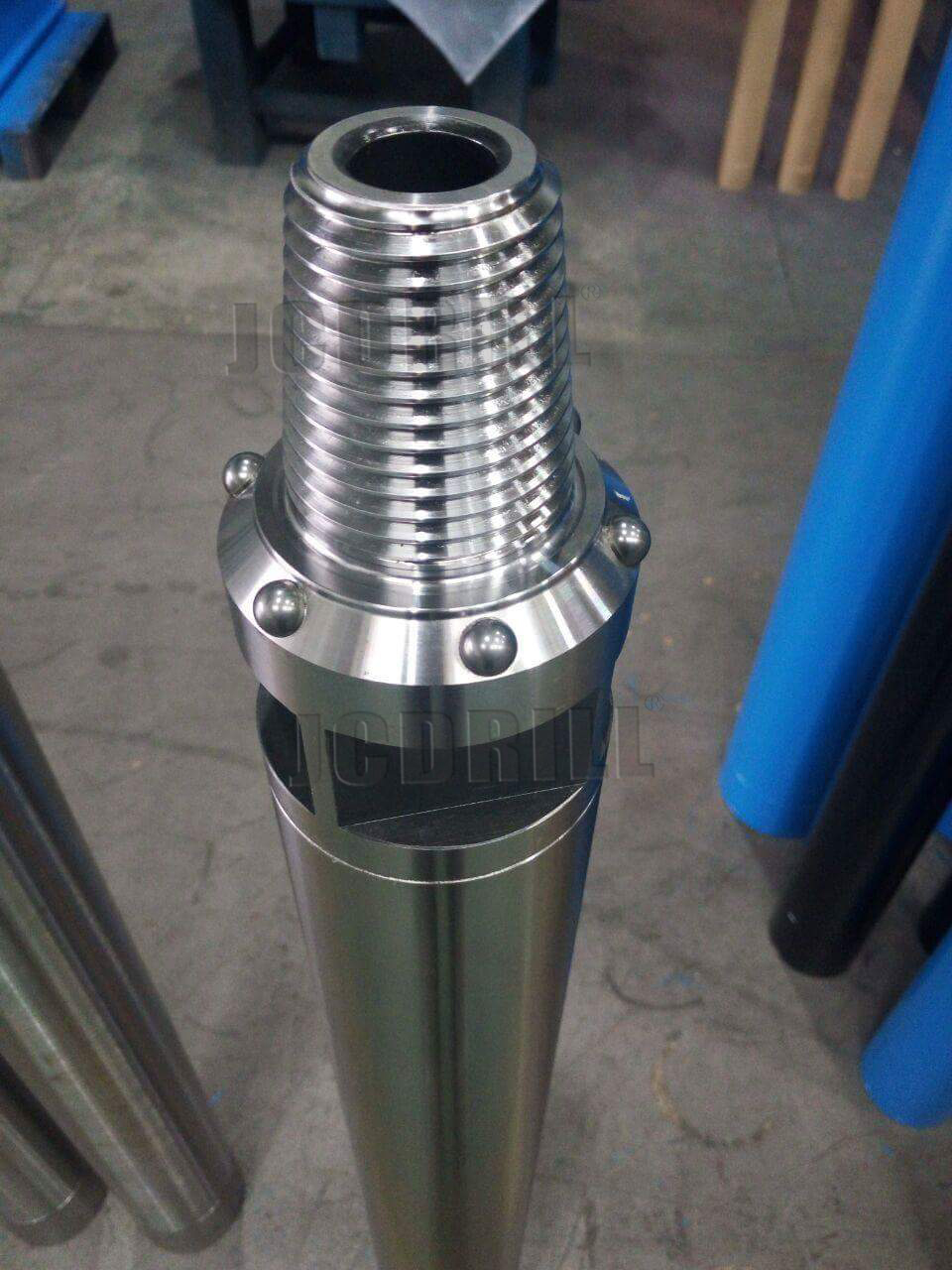

DTH Hammer Advantages:
1. Using the latest rock drilling theory, optimizing the inside structure and the size of the air distribution, to make the DTH hammer obtain the optimal energy transfer and make it achieve faster- drilling speed and lower air consumption.
2. For such projects as the drill bit break, retrieving very difficult, we specially designed a safe and reliable anti-shedding device for the bit.
3. The check valve can be replaced to the one with bigger air controlling hole to provide more efficient cutting discharge.
4. The top sub and the drive chuck have special thread, which can achieve an easier disassemble.
| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Type | Model | Length | Weight | External Dia.(mm) | Hole Range |
| (mm) | (kg) | (mm) | |||
| 3.5 inch | DHD3.5 | 930 | 25 | 82 | 90-110 |
| 4 inch | DHD340 | 1030 | 39 | 99 | 110-135 |
| SD4 | 1084 | 40.5 | 99 | ||
| QL40 | 1097 | 41 | 99 | ||
| Mission40 | 1005 | 40 | 99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | 125 | 135-155 |
| SD5 | 1175 | 72.5 | 125 | ||
| QL50 | 1147 | 73 | 125 | ||
| Mission50 | 1110 | 68.5 | 125 | ||
| 6 inch | DHD360 | 1248 | 100 | 142 | 155-190 |
| SD6 | 1261 | 100 | 142 | ||
| QL60 | 1212 | 95 | 146 | ||
| Mission60 | 1161 | 90 | 146 | ||
| 8 inch | D85 | 1492 | 188 | 180 | 195-254 |
| SD8 | 1463 | 192 | 180 | ||
| QL80 | 1465 | 182 | 180 | ||
| Mission80 | 1338 | 176 | 180 | ||
| 10 inch | SD10 | 1502 | 290 | 226 | 254-311 |
| NUMA100 | 1510 | 288 | 226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa 125 | |||||
| 14 inch | JD140A | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
