R3212 Round and Hex Speed Bench Drill mm/Mf Extension Rod

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO

Product Detail

Product Tags

Product Detail

Condition:	New	Processing Type	Forging
Applicable Industries:	Energy & Mining, Underground Drilling And Surface Drilling	Use	Ore Mining, quarry,mining,blasting,construction,open bit etc.
Video outgoing-inspection	Provided	Quality	100% quality similarity world top class brands
Machinery Test Report	Provided	Advantages	high quality and factory prices
Marketing Type	Ordinary Product	Boby type	Normal type or retrac type
Brand Name	JCDRILL	Thread	R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
Type	Thread Button Bit	Tungsten carbide	Spherical, ballistic,Conical,Hemispherical
Machine Type	Drilling Tool	Fact type	Drop Center, Flat Face, Convex, Concave, etc
Material	Carbon steel

Product Features

Introduction

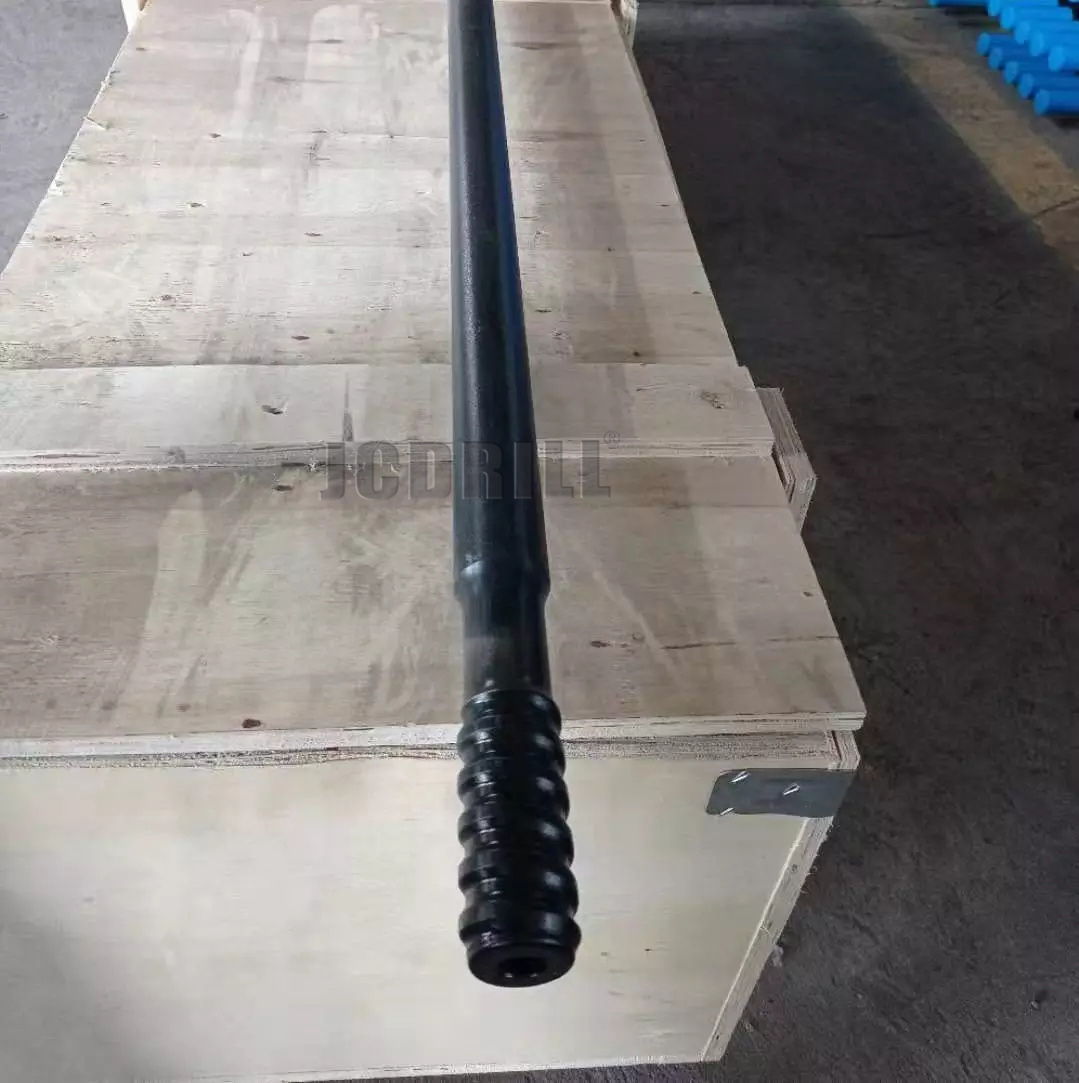

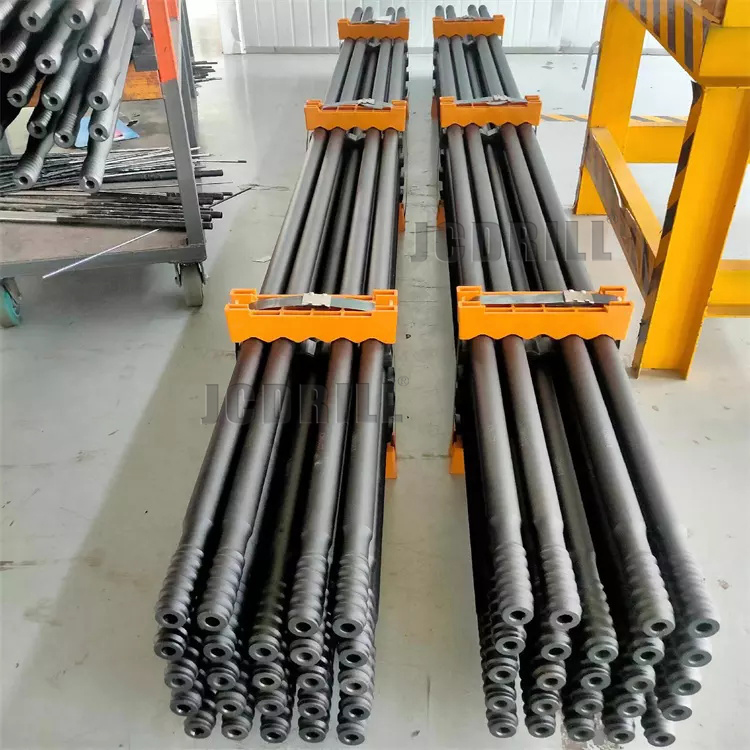

Male/Female (M/F) rod, speed rod
M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/F drill steel provides more rigid connections and is easier to uncouple and handle. The service life also tends to be better than with separate couplings. The advantages of drilling with M/F steel include: Easy handling, quicker uncoupling, tighter connections, the potential to drill straighter holes, and longer service life.
For Extension Rod and M/F steel process, the below two different types of heat treatment are used to strengthen high speed and powerful percussive drill string components to maximize their performance and reliability. Longer steel larger in diameter, conventional extension steel, Hexagonal and round cross sections are available.
- Carburization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of the rod.
- High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen thread life.

R3212
Drill Bit	Bit Dia.		NO x Button x Dia.			Flushing Hole		Weight
Drill Bit	mm	inch	Front	Gauge	Angle	Front	Side	（KG）
	48	1 7/8	2x9	3x11	35°	1	1	0.7
	48	1 7/8	2x9	5x11	35°	1	1	0.7
	55	2 1/8	1x12	3x14	35°	1	1	0.9
	55	2 1/8	2x10,1x10	4x12	35°	1	1	0.8
	55	2 1/8	2x10,1x10	4x10	35°	1	1	0.8
	55	2 1/8	3x9	6x10	35°	3		0.9
	60	2 3/8	2x12	3x14	40°	1	1	1.0
	60	2 3/8	2x11	5x12	40°	1	1	1.0
	60	2 3/8	2x10,1x10	4x12	40°	2	1	0.9
	60	2 3/8	3x10	6x11	40°	3		1.1
	65	2 1/2	2x13	3x14	40°	1	1	1.1
	65	2 1/2	3x12	3x14	40°	1	1	1.1
	65	2 1/2	2x12,1x12	4x12	40°	1	1	1.2
	65	2 1/2	2x12,1x12	4x14	35°	1	1	1.5
	65	2 1/2	3x12	6x12	35°	1	1	1.2
	65	2 1/2	3x12	6x12	35°	3		1.2
	70	2 3/4	3x12	3x14	35°	1	1	1.6
	70	2 3/4	3x12	6x12	35°	1	1	1.4
	70	2 3/4	3x12	6x12	35°	3		1.4
	75	3	5x10	6x12	35°	2	1	1.7
	55	2 1/8	16x10			1	2	0.8
	60	2 3/8	16x10					0.9
	65	2 1/2	16x10					1.0
	70	2 3/4	16x10					1.1
	75	3	16x10					1.3
	80	3 1/8	16x10					1.6
Drill Roll				Length		Dimaeter		Weight
Drill Roll				mm	inch	mm	inch	（KG）
				600	2'	32	1 1/4	3.53
				800	2'7''	32	1 1/4	4.7
				900	2'	32	1 1/4	5.3
				1000	3'3''	32	1 1/4	5.9
				1100	3'6''	32	1 1/4	6.52
				1200	3'9''	32	1 1/4	7.1
				600	2'	32	1 1/4	4.45
				800	2'7''	32	1 1/4	5.6
				900	2'	32	1 1/4	6.17
				1000	3'3''	32	1 1/4	6.8
				1100	3'6''	32	1 1/4	7.4
				1200	3'9''	32	1 1/4	7.9
Coupling			Length		Dimaeter		Thread	Weight
Coupling			mm	inch	mm	inch		（KG）
			150	6 1/8	44	1 3/4	R3212	1
			160	6 1/4	44	1 3/4	R3212	1.1
			160	6 1/4	48	1 7/8	R3212	1.5


Commercial Terms of Product

Minimum Order Quantity	N/A
Price
Packaging Details	Standard Export Delivery Package
Delivery Time	7days
Payment Terms	T/T
Supply Ability	Based on Detailed Order
