R32 Threaded Carbide Cross Drill Bit for Mining

R32 Threaded Carbide Cross Drill Bit for Mining Featured Image
  • R32 Threaded Carbide Cross Drill Bit for Mining
  • R32 Threaded Carbide Cross Drill Bit for Mining
  • R32 Threaded Carbide Cross Drill Bit for Mining

Short Description:

Product Name: Cross Bit
Material: Alloy steel bar and tungsten carbide bit
MOQ: No MOQ required for testing and trial order
Processing CNC milling and proprietary heat treatment process
Face shape X-type and cross type
Color Green,Gold, Black

Product Detail

Product Tags

Product Detail

Brand Name JCDRILL Advantage Direct Manufacturer
Type Tungstern Carbide Threaded Drill Bits Application Mine,Ore,Railway,Tunnel,Water Irrigation etc.
Machine Type Drilling Tool Feature Fast Penetration Rate With Good Wearing Resistance
Material Tungsten Carbide and High Quality Alloy Steel Threaded R25 R28 R32 R38 T38 T45 T51 etc
Processing Type Casting Suitable Brand Atlas copco,Boart longyear,Halco,Fantini,Furukawa...
Use Rock Drilling, Underground Mining, Quarry, Blasting, etc Name Tungstern Carbide Threaded Button Rock Drill Bits

Product Features

Introduction

Product Description

Thread Cross Bits
Our cross bits diameters are from38mmto127mm, and different type are available, like R22,
R25,R32, R38, T38,T45,T51,ST58, ST68,etc.
Feature
1. Excellent drilling penetration
2. Used in very hard or hardest rock formation
3. Adequate for various construction conditions
4. Strong corrosion resistance
Application
1.The cross bit is suitable for digging of very hard rock formation, hard formation and crack-grown formation.
2.All cross bits have to be reground at regular intervals to crush rock efficiently.
3.We choose different material and size for the cross bits in order to adapt the different rock formations and
working conditions.

R32
Drifting and Tunneling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
41 1 5/8 2x9 4x9 35° 1 1 0.6
41 1 5/8 2x8 5x9 35° 1 1 0.7
43 1 2/3 2x9 5x9 35° 1 2 0.7
43 1 2/3 2x9 5x10 35° 1 1 0.7
43 1 2/3 2x9 6x9 40° 2 0.7
45 1 3/4 2x9 5x11 30° 1 1 0.8
45 1 3/4 2x9 6x10 35° 2 0.8
45 1 3/4 3x8 6x10 30° 3 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
48 1 7/8 2x9 6x10 30° 3 0.9
51 2 2x10 5x11 35° 1 1 1.0
51 2 2x10 6x10 40° 2 1.0
51 2 3x9 6x10 35° 3 1.0
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
76 3 4x11 8x11 40° 2 2.6
 2 Parabolic Buttons
41 1 5/8 2x8 5x9 40° 1 1 0.7
43 1 2/3 2x9 5x9 40° 1 2 0.7
43 1 2/3 2x9 5x10 40° 2 0.7
43 1 2/3 2x9 6x9 40° 3 1 0.7
45 1 3/4 2x9 5x11 30° 1 2 0.8
45 1 3/4 2x9 6x10 40° 2 2 0.8
45 1 3/4 3x8 6x10 40° 3 1 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 2x10 6x10 40° 2 1
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 cross 41 1 5/8 16x10 1 4 0.7
43 1 2/3 16x10 1 4 0.8
45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 18x13 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 rod 2400 7'10'' 32 1 1/4 15.3
3090 10'11/2'' 32 1 1/4 19.8
3400 11'13/4'' 32 1 1/4 21.7
4000 13'13/8'' 32 1 1/4 25.5
4310 14'11/2'' 32 1 1/4 27.5
4920 16'11/2'' 32 1 1/4 31.3
5530 18'11/2'' 32 1 1/4 35.2
3090 10'11/2'' 35 1 3/8 24
3700 12'11/2'' 35 1 3/8 28.7
4000 13'13/8'' 35 1 3/8 31.1
4310 14'11/2'' 35 1 3/8 33.4
4920 16'11/2'' 35 1 3/8 37.8
5530 18'11/2'' 35 1 3/8 42.9
6100 20' 35 1 3/8 47.3
3700 12'11/2'' 35 1 3/8 29
4310 14'11/2'' 35 1 3/8 34.1
4920 16'11/2'' 35 1 3/8 38.8
5530 18'11/2'' 35 1 3/8 43.6
6400 21' 35 1 3/8 50.3
Coupling Length Dimaeter Thread Weight
mm inch mm inch （KG）
 Coupling 170 6 3/4 55 2  5/32 R38 1.8
190 7 1/2 55 2  5/32 T38 2
150 6 1/8 45 1 3/4 R25-R32 1.1
160 6 1/4 45 1 3/4 R25-R32 1.2
160 6 1/4 45 1 3/4 R28-R32 1.2
160 6 1/4 55 2  5/32 R32-R38 1.8
170 6 3/4 55 2  5/32 R32-R38 2
180 71/16 55 2  5/32 R32-R38 2.2
210 8 1/4 55 2  5/32 R32-R38 2.8
170 6 3/4 56 2 1/8 R32-T38 2.1
180 71/16 56 2 1/8 R32-T38 2.2
210 8 1/4 56 2 1/8 R32-T38 2.8
190 7 1/2 63 2 33/64 R32-T45 3.2
Bench Drilling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
48 1 7/8 2x9 5x11 35° 1 2 1
48 1 7/8 3x8 6x10 40° 3 0.9
51 1 2x10 5x11 35° 1 2 1
51 2 3x9 6x10 35° 3 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 3x11 6x12 30° 3 1.6
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
70 3 4x11 8x11 40° 2 2.6
76 3 4x11,1x11 8x11 35° 2 2.6
 2 Parabolic Buttons
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 3 45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 16x10 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 4 915 3' 32 1 1/4 5.4
1000 3'33/8'' 32 1 1/4 5.9
1220 4' 32 1 1/4 7.2
1830 6' 32 1 1/4 10.8
2435 8' 32 1 1/4 14.3
3050 10' 32 1 1/4 17.9
3660 12' 32 1 1/4 21.5
 5 915 3' 32 1 1/4 6.2
1000 4' 32 1 1/4 8
1220 5' 32 1 1/4 9.8
1830 6' 32 1 1/4 11.6
2435 8' 32 1 1/4 15.1
3050 10' 32 1 1/4 18.7
3660 12' 32 1 1/4 22.3
 6 3050 10' 39 1 1/2 27
3660 12' 39 1 1/2 32
 7 1220 4' 46 1 3/4 10
1525 5' 46 1 3/4 12.5
1830 6' 46 1 3/4 14.2
3050 10' 46 1 3/4 25
Coupling Length Dimaeter Weight
mm inch mm inch （KG）
 8 150 6 1/8 44 1 3/4 1
160 6 1/4 44 1 3/4 1.1

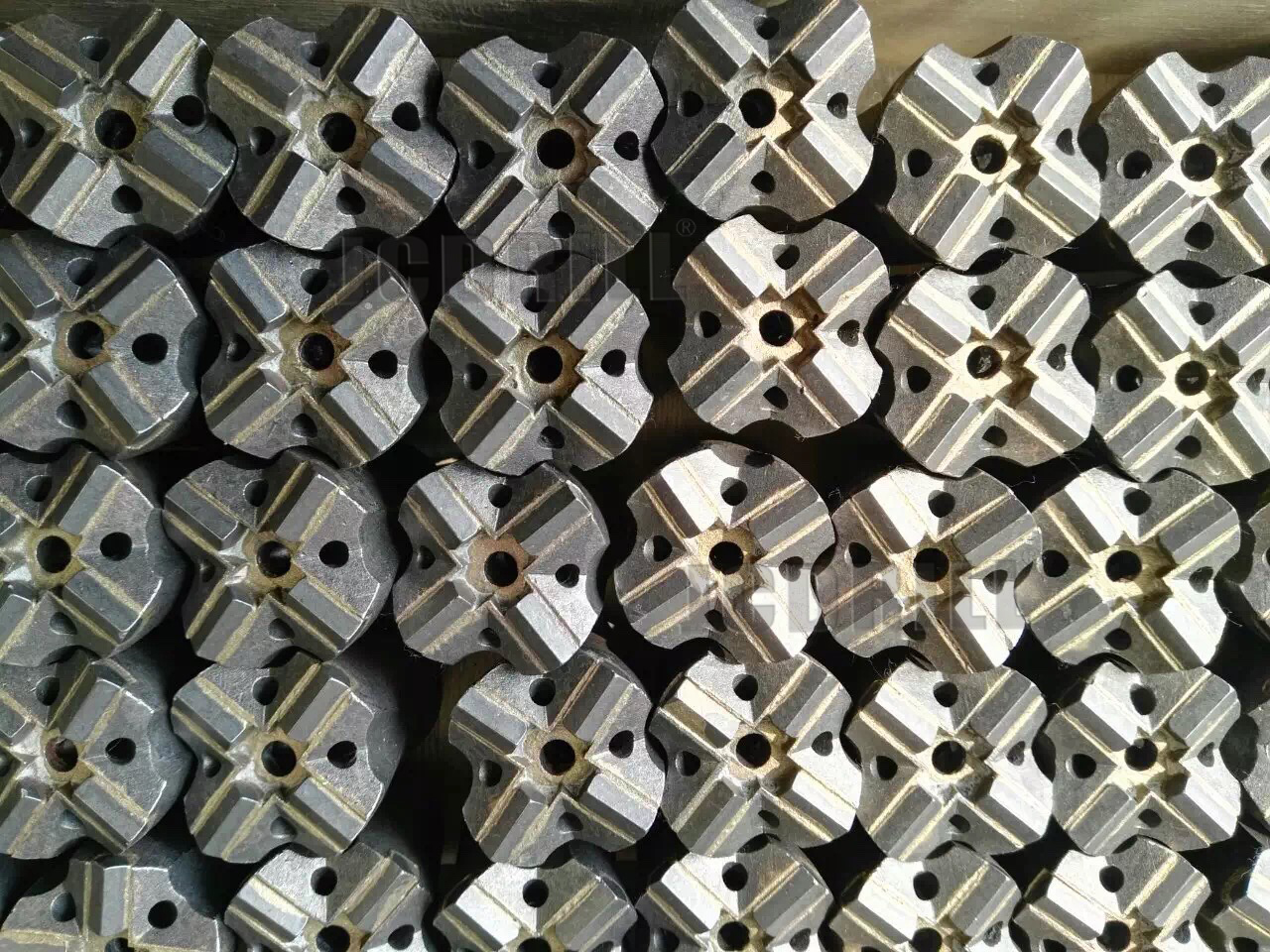

cross bit cross bit

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
