R32 Extension Rod Speed Rod MF drill rod

R32 Extension Rod Speed Rod MF drill rod Featured Image
  • R32 Extension Rod Speed Rod MF drill rod
  • R32 Extension Rod Speed Rod MF drill rod
  • R32 Extension Rod Speed Rod MF drill rod

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO


Product Detail

Product Tags

Product Detail

Condition New Material Carbon steel
Applicable Industries Construction works , Energy & Mining Processing Type Forging
Video outgoing-inspection Provided Use Ore Mining
Machinery Test Report Provided Product name R25 - Hex25 - R25 drifter drill rod
Marketing Type Hot Product 2022 Application tunneling, mining
Brand Name JCDRILL Usage top hammer drilling
Type drill rod Name tunneling drill rod
Machine Type Drilling Equipment Word mining drill rod

Product Features

Introduction

Male/Female (M/F) rod, Speed rod
M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/F drill steel provides more rigid connections and is easier to uncouple and handle. The service life also tends to be better than with separate couplings.
Advantages of drilling with M/F rods:
A: Easy handling
B: Quicker uncoupling
C: Tighter connections
D: The potential to drill straighter holes
E: Longer service life.

R32
Drifting and Tunneling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
41 1 5/8 2x9 4x9 35° 1 1 0.6
41 1 5/8 2x8 5x9 35° 1 1 0.7
43 1 2/3 2x9 5x9 35° 1 2 0.7
43 1 2/3 2x9 5x10 35° 1 1 0.7
43 1 2/3 2x9 6x9 40° 2 0.7
45 1 3/4 2x9 5x11 30° 1 1 0.8
45 1 3/4 2x9 6x10 35° 2 0.8
45 1 3/4 3x8 6x10 30° 3 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
48 1 7/8 2x9 6x10 30° 3 0.9
51 2 2x10 5x11 35° 1 1 1.0
51 2 2x10 6x10 40° 2 1.0
51 2 3x9 6x10 35° 3 1.0
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
76 3 4x11 8x11 40° 2 2.6
 2 Parabolic Buttons
41 1 5/8 2x8 5x9 40° 1 1 0.7
43 1 2/3 2x9 5x9 40° 1 2 0.7
43 1 2/3 2x9 5x10 40° 2 0.7
43 1 2/3 2x9 6x9 40° 3 1 0.7
45 1 3/4 2x9 5x11 30° 1 2 0.8
45 1 3/4 2x9 6x10 40° 2 2 0.8
45 1 3/4 3x8 6x10 40° 3 1 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 2x10 6x10 40° 2 1
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 cross 41 1 5/8 16x10 1 4 0.7
43 1 2/3 16x10 1 4 0.8
45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 18x13 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 rod 2400 7'10'' 32 1 1/4 15.3
3090 10'11/2'' 32 1 1/4 19.8
3400 11'13/4'' 32 1 1/4 21.7
4000 13'13/8'' 32 1 1/4 25.5
4310 14'11/2'' 32 1 1/4 27.5
4920 16'11/2'' 32 1 1/4 31.3
5530 18'11/2'' 32 1 1/4 35.2
3090 10'11/2'' 35 1 3/8 24
3700 12'11/2'' 35 1 3/8 28.7
4000 13'13/8'' 35 1 3/8 31.1
4310 14'11/2'' 35 1 3/8 33.4
4920 16'11/2'' 35 1 3/8 37.8
5530 18'11/2'' 35 1 3/8 42.9
6100 20' 35 1 3/8 47.3
3700 12'11/2'' 35 1 3/8 29
4310 14'11/2'' 35 1 3/8 34.1
4920 16'11/2'' 35 1 3/8 38.8
5530 18'11/2'' 35 1 3/8 43.6
6400 21' 35 1 3/8 50.3
Coupling Length Dimaeter Thread Weight
mm inch mm inch （KG）
 Coupling 170 6 3/4 55 2  5/32 R38 1.8
190 7 1/2 55 2  5/32 T38 2
150 6 1/8 45 1 3/4 R25-R32 1.1
160 6 1/4 45 1 3/4 R25-R32 1.2
160 6 1/4 45 1 3/4 R28-R32 1.2
160 6 1/4 55 2  5/32 R32-R38 1.8
170 6 3/4 55 2  5/32 R32-R38 2
180 71/16 55 2  5/32 R32-R38 2.2
210 8 1/4 55 2  5/32 R32-R38 2.8
170 6 3/4 56 2 1/8 R32-T38 2.1
180 71/16 56 2 1/8 R32-T38 2.2
210 8 1/4 56 2 1/8 R32-T38 2.8
190 7 1/2 63 2 33/64 R32-T45 3.2
Bench Drilling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
48 1 7/8 2x9 5x11 35° 1 2 1
48 1 7/8 3x8 6x10 40° 3 0.9
51 1 2x10 5x11 35° 1 2 1
51 2 3x9 6x10 35° 3 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 3x11 6x12 30° 3 1.6
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
70 3 4x11 8x11 40° 2 2.6
76 3 4x11,1x11 8x11 35° 2 2.6
 2 Parabolic Buttons
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 3 45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 16x10 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 4 915 3' 32 1 1/4 5.4
1000 3'33/8'' 32 1 1/4 5.9
1220 4' 32 1 1/4 7.2
1830 6' 32 1 1/4 10.8
2435 8' 32 1 1/4 14.3
3050 10' 32 1 1/4 17.9
3660 12' 32 1 1/4 21.5
 5 915 3' 32 1 1/4 6.2
1000 4' 32 1 1/4 8
1220 5' 32 1 1/4 9.8
1830 6' 32 1 1/4 11.6
2435 8' 32 1 1/4 15.1
3050 10' 32 1 1/4 18.7
3660 12' 32 1 1/4 22.3
 6 3050 10' 39 1 1/2 27
3660 12' 39 1 1/2 32
 7 1220 4' 46 1 3/4 10
1525 5' 46 1 3/4 12.5
1830 6' 46 1 3/4 14.2
3050 10' 46 1 3/4 25
Coupling Length Dimaeter Weight
mm inch mm inch （KG）
 8 150 6 1/8 44 1 3/4 1
160 6 1/4 44 1 3/4 1.1

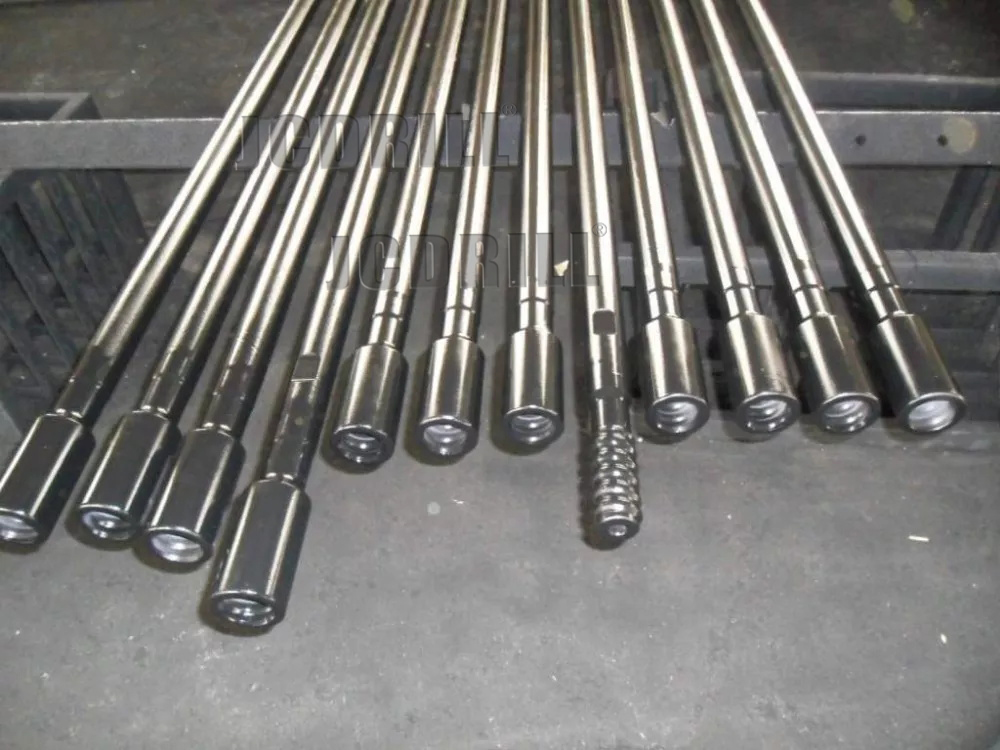

Threaded Drill Rods (9) Threaded Drill Rods (8)

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
