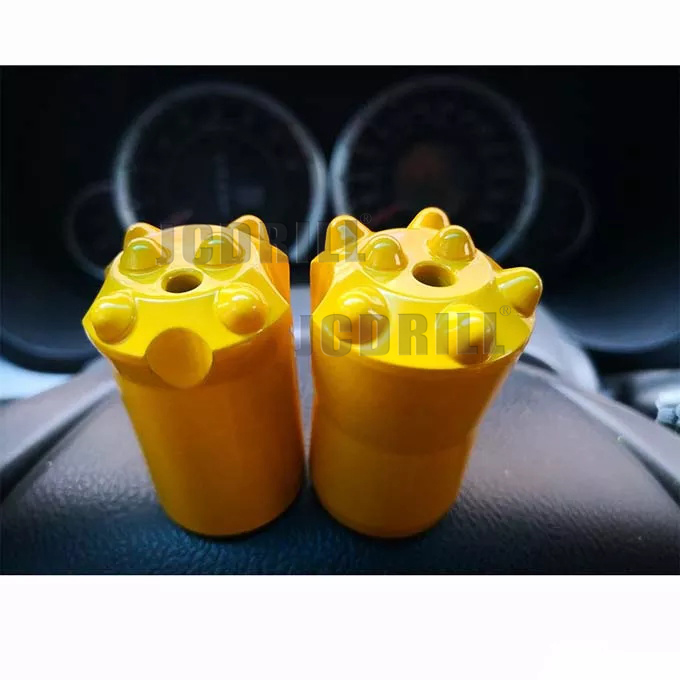

R28 Diameter 43mm 7 Buttons Thread Button Bits For Quarry Granite Rock

R28 Diameter 43mm 7 Buttons Thread Button Bits For Quarry Granite Rock Featured Image
  • R28 Diameter 43mm 7 Buttons Thread Button Bits For Quarry Granite Rock
  • R28 Diameter 43mm 7 Buttons Thread Button Bits For Quarry Granite Rock
  • R28 Diameter 43mm 7 Buttons Thread Button Bits For Quarry Granite Rock

Short Description:

Product Name thread button bit
Material special steel and zhuzhou carbide
Color yellow,blue,black or others
Standard ISO9001
Used with thread rod
Used mine/stone quarry drilling

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    Condition: New Processing Type Forging
    Applicable Industries: Energy & Mining, Underground Drilling And Surface Drilling Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
    Video outgoing-inspection Provided Quality 100% quality similarity world top class brands
    Machinery Test Report Provided Advantages high quality and factory prices
    Marketing Type Ordinary Product Boby type Normal type or retrac type
    Brand Name JCDRILL Thread R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
    Type Thread Button Bit Tungsten carbide Spherical, ballistic,Conical,Hemispherical
    Machine Type Drilling Tool Fact type Drop Center, Flat Face, Convex, Concave, etc
    Material Carbon steel

    Product Features

    Introduction



    Skirt Material: 45CrNiMov Button Bit Diameter: 43mm
    Thread: R28 Carbide Material: Tungsten Carbide YK05
    Weight: 0.68kgs Type: Thread Button Bit
    Gauge Buttons: 5×Ø9.5mm Front Buttons: 2×Ø8mm
    High Light: button drill bit

    ,

    carbide button bits

    R28 Diameter 43mm 7 buttons Thread Button Bits For Quarry Granite Rock Bits



    Specification of the drill bits:

    • Thread: R28

    • Diameter:43mm

    • Gauge Buttons: 5*9.5mm

    • Front Buttons: 2*8mm

    • Skirt Design: Standard

    • Weight: 0.68KGS

    • Skirt Design: Standard

    • ​Carbide Design: Ballistic

    • ​Face Design: Flat



    Advantages:
    1.Entire CNC processing procedure ensure the quality consistency

    2.Military grade requirements of heat-treatment guarantee durability

    3.Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.

    R28
    Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
    mm inch Front Gauge Angle Front Side （KG）
     BUTTON BIT Spherical Buttons
    37 1 29/64 2x7 5x9 30° 1 1 0.5
    38 1 1/2 2x8 4x9 30° 1 2 0.6
    38 1 1/2 2x7 5x9 30° 1 1 0.6
    41 1 5/8 2x8 5x9 35° 1 1 0.7
    43 1 2/3 2x9 5x9 30° 1 2 0.8
    45 1 3/4 2x9 5x10 30° 1 2 0.9
    45 1 3/4 3x8 6x9 30° 1 3 0.9
    Parabolic Buttons
    37 1 4/9 2x7 5x9 30° 1 1 0.5
    38 1 1/2 2x8 4x9 30° 1 2 0.6
    38 1 1/2 2x7 5x9 30° 1 1 0.6
    41 1 5/8 2x8 5x9 35° 1 1 0.7
    43 1 2/3 2x9 5x9 35° 1 2 0.8
    45 1 3/4 2x9 5x10 30° 1 2 0.9
    45 1 3/4 3x8 6x9 35° 1 3 0.9
    48 1 7/8 2x9 5x11 30° 1 2 1.0
    48 1 7/8 3x8 6x9 35° 1 3 1.0
     CROSS BIT 38 1 1/2 14x8 1 2 0.6
    41 1 5/8 14x8 1 4 0.7
    43 1 2/3 14x8 1 4 0.7
    45 1 3/4 14x8 1 4 0.9
    51 2 14x8 1 4 1.1
    Drill Roll Bit Dia. Dimaeter Weight
    mm inch mm inch （KG）
     ROLL 2400 7'10" 28 1 1/8 12.2
    2750 9' 28 1 1/8 14.4
    3700 12'11/2" 28 1 1/8 18.9
    4000 13'1/8" 28 1 1/8 20.4
    4310 14'11/2" 28 1 1/8 22.0
    4920 16'11/2" 28 1 1/8 25.3
    2900 9'61/8" 32 1 1/4 18.8
    3090 10'11/2" 32 1 1/4 20.0
    3700 12'11/2" 32 1 1/4 24.0
    4310 14'11/2" 32 1 1/4 27.9
    3090 10'11/2" 32 1 1/4 20.0
    3700 12'11/2" 32 1 1/4 23.5
    3090 10'11/2" 32 1 1/4 20.0
    3700 12'11/2" 32 1 1/4 24.0
    4000 13'13/8" 32 1 1/4 25.9
    4310 14'11/2" 32 1 1/4 27.9
    3050 10' 28 1 1/8 15.0
    3050 10' 28 1 1/8 15.0
    Coupling Bit Dia. Dimaeter Weight
    mm inch mm inch （KG）
     COIPLING 150 5 7/8 44 1 3/4 1.0
    150 5 7/8 40 1 37/64 0.9
    170 6 3/4 55 2 5/32 2.0
    160 6 5/16 45 1 3/4 1.2
    160 6 5/16 56 1 13/64 2.5


    详情11 详情12 详情13

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
