| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |
Introduction

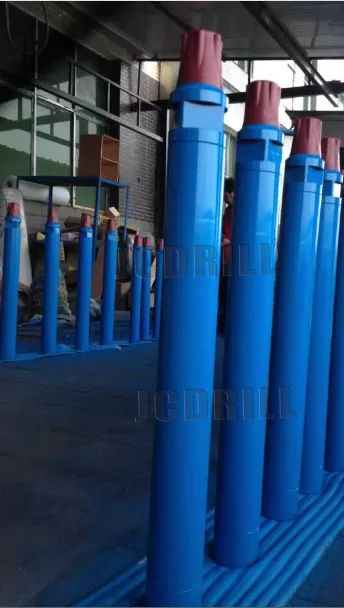

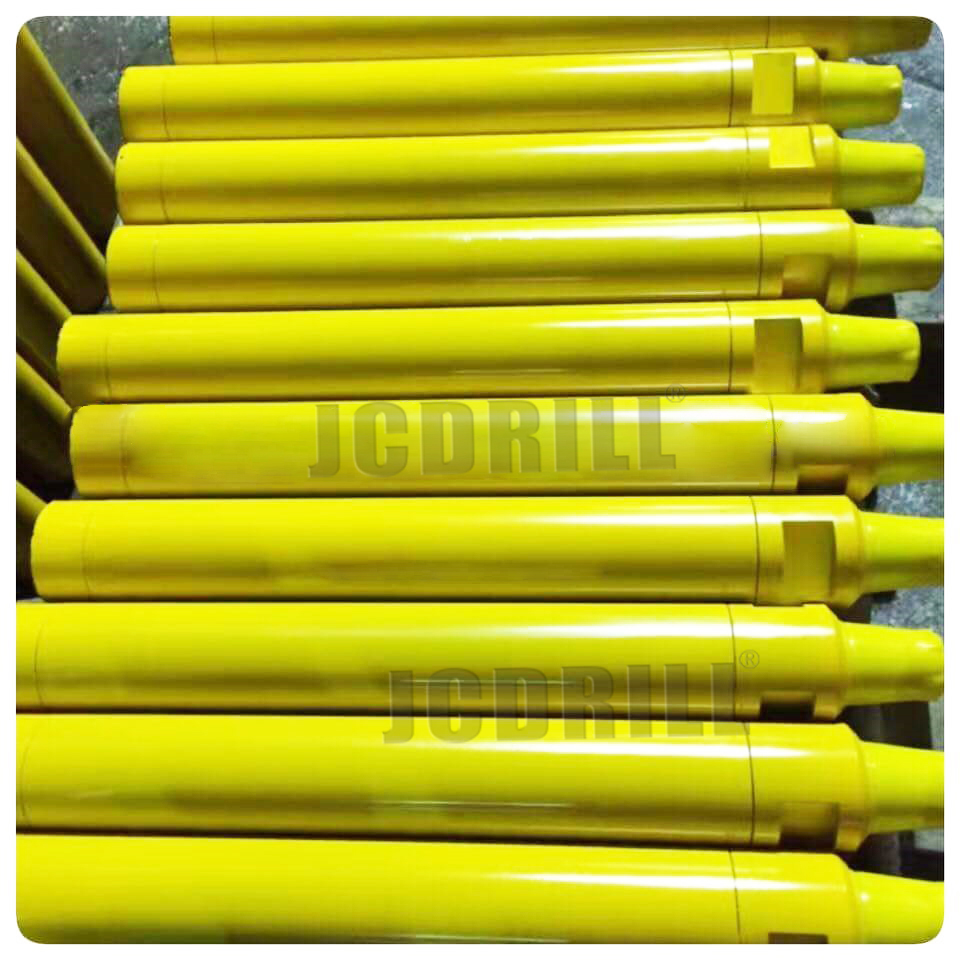

Middle air pressure DTH hammer BR1 BR2 BR3
1. Fast drilling speed and low air consumption due to the special inner structure.
2. Smooth performance and long service due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
Drilling and drilling blasting holes, landslide protection, dam site reinforcement and anchoring holes, ground heat source air conditioning, hydrology, water well holes and other fields in mines, quarries, road construction and other projects。
| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Type | Model | Length | Weight | External Dia.(mm) | Hole Range |
| (mm) | (kg) | (mm) | |||
| 3.5 inch | DHD3.5 | 930 | 25 | 82 | 90-110 |
| 4 inch | DHD340 | 1030 | 39 | 99 | 110-135 |
| SD4 | 1084 | 40.5 | 99 | ||
| QL40 | 1097 | 41 | 99 | ||
| Mission40 | 1005 | 40 | 99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | 125 | 135-155 |
| SD5 | 1175 | 72.5 | 125 | ||
| QL50 | 1147 | 73 | 125 | ||
| Mission50 | 1110 | 68.5 | 125 | ||
| 6 inch | DHD360 | 1248 | 100 | 142 | 155-190 |
| SD6 | 1261 | 100 | 142 | ||
| QL60 | 1212 | 95 | 146 | ||
| Mission60 | 1161 | 90 | 146 | ||
| 8 inch | D85 | 1492 | 188 | 180 | 195-254 |
| SD8 | 1463 | 192 | 180 | ||
| QL80 | 1465 | 182 | 180 | ||
| Mission80 | 1338 | 176 | 180 | ||
| 10 inch | SD10 | 1502 | 290 | 226 | 254-311 |
| NUMA100 | 1510 | 288 | 226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa 125 | |||||
| 14 inch | JD140A | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
