| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |
Introduction

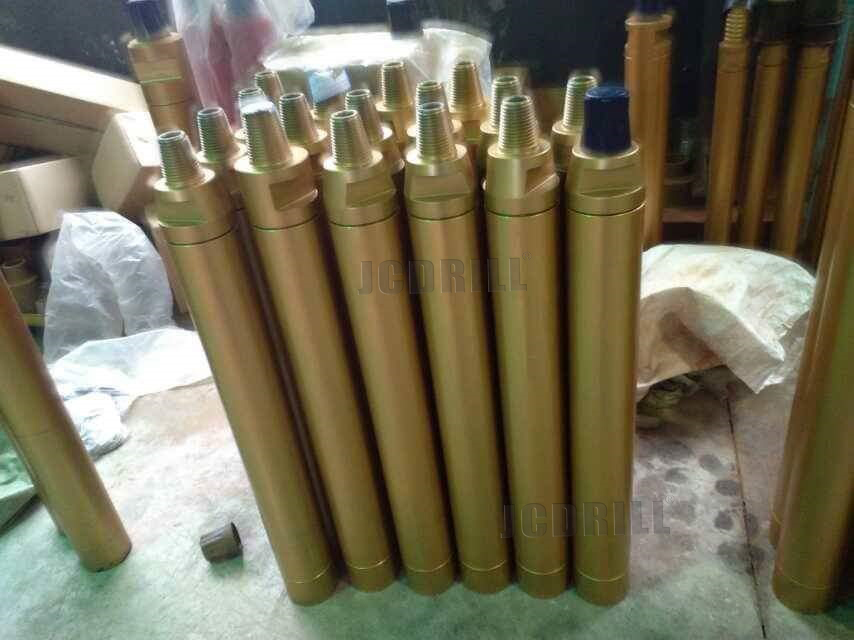

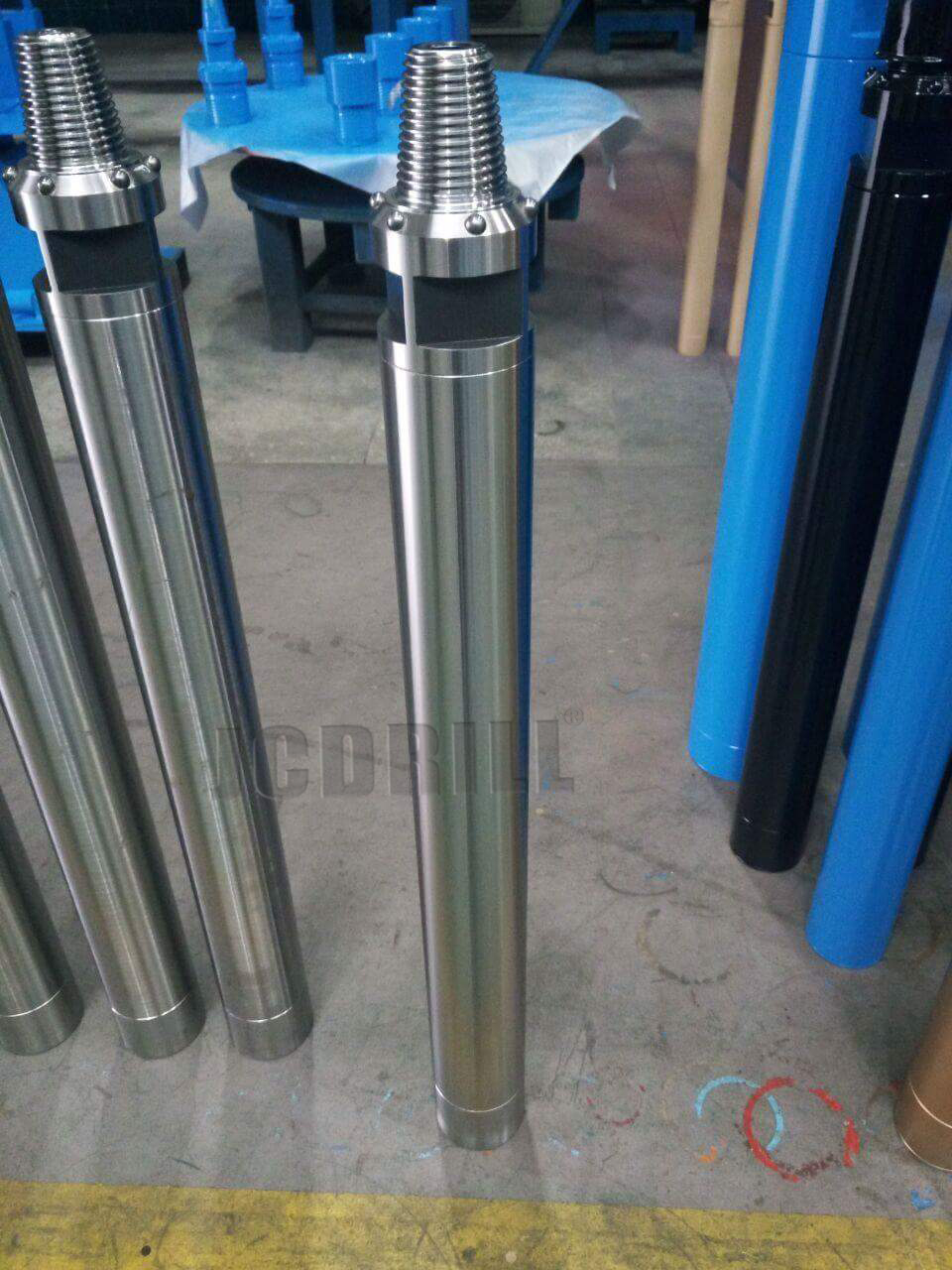

High Air Pressure DTH Drilling Hammer
Apply for engineering hole such as drilling blasting hole, guardrail hole in mines, quarries, expressway, the mountain barrier inforce ment, anchorage, geothermal air conditioning hole, well-drilling hole etc.
| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Type | Model | Length | Weight | External Dia.(mm) | Hole Range |
| (mm) | (kg) | (mm) | |||
| 3.5 inch | DHD3.5 | 930 | 25 | 82 | 90-110 |
| 4 inch | DHD340 | 1030 | 39 | 99 | 110-135 |
| SD4 | 1084 | 40.5 | 99 | ||
| QL40 | 1097 | 41 | 99 | ||
| Mission40 | 1005 | 40 | 99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | 125 | 135-155 |
| SD5 | 1175 | 72.5 | 125 | ||
| QL50 | 1147 | 73 | 125 | ||
| Mission50 | 1110 | 68.5 | 125 | ||
| 6 inch | DHD360 | 1248 | 100 | 142 | 155-190 |
| SD6 | 1261 | 100 | 142 | ||
| QL60 | 1212 | 95 | 146 | ||
| Mission60 | 1161 | 90 | 146 | ||
| 8 inch | D85 | 1492 | 188 | 180 | 195-254 |
| SD8 | 1463 | 192 | 180 | ||
| QL80 | 1465 | 182 | 180 | ||
| Mission80 | 1338 | 176 | 180 | ||
| 10 inch | SD10 | 1502 | 290 | 226 | 254-311 |
| NUMA100 | 1510 | 288 | 226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa 125 | |||||
| 14 inch | JD140A | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
