M40 High Air Pressure DTH Hammer For Water Drilling Machine

Short Description:

Model Number 3/3.5,4,5,6,8,10,12 inches
Drill Rock hardness F=6-20
Condition New
Type Rotary Drilling Rig
Processing Type Forging
 Place of Origin Beijing, China (Mainland)
Brand Name JCDRILL
Usage Rock drilling
Material Carbide

Product Detail

Product Tags

Product Detail

Model Number 3/3.5,4,5,6,8,10,12 inches Certification ISO CE
Drill Rock hardness F=6-20 Warranty 1 Year
Condition New After-sales Service 7X24hours available
Type Rotary Drilling Rig Color As request
Processing Type Forging Button shape Spherical, Ballistic, Semi-ballistic
 Place of Origin Beijing, China (Mainland) Bit face shape Flat, concave, convex, drop center
Brand Name JCDRILL Other shanks COP,DHD,MISSION, SD
Usage Rock drilling Type DTH Hammer
Material Carbide Machine Type Drilling Tool

Product Features

Introduction

x-default

Advantages:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

Drill Impactor Widely used in rock engineering to drill a variety of medium-hard and high-hardness tough rock with poor drillability

The high-pressure impactor belongs to the valve-type central exhaust impactor, which has good effect of discharging rock powder, reduces the repeated crushing of rock debris, reduces the wear of the drill bit, improves the drilling efficiency, and designs the impactor by using the latest rock drilling theory. The internal structure size enables the impactor to achieve the desired energy transfer. The single impact power is large, the rock drilling speed is faster, the air consumption is lower, the highest quality raw materials and the most advanced processing technology are used, the performance is more stable and the service life is longer.

Easy to assemble and disassemble, low failure and easy maintenance.

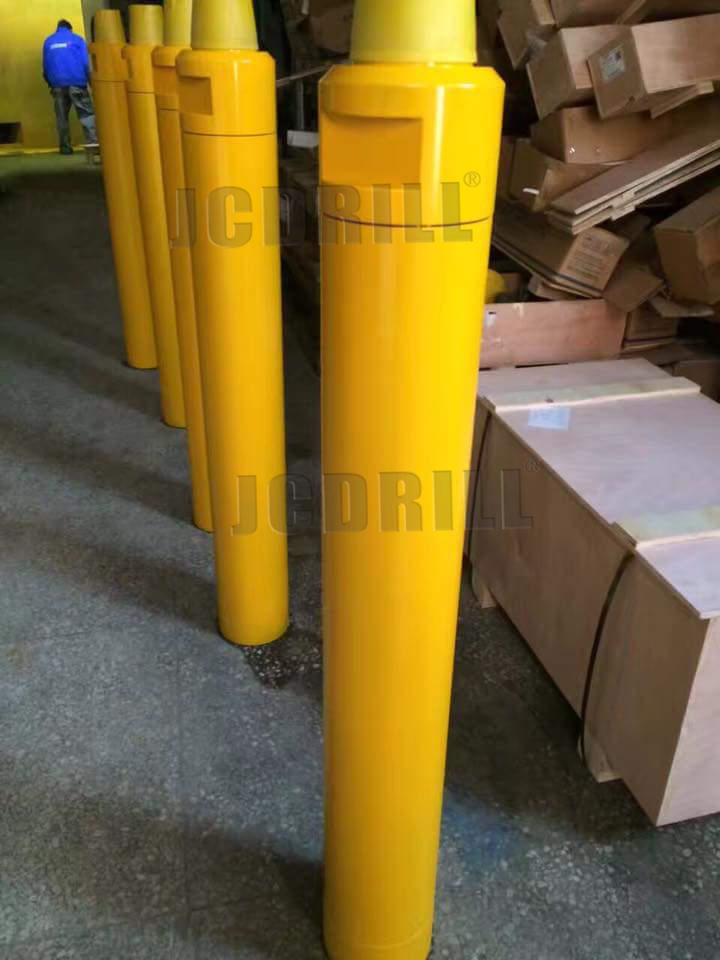

DTH Hammer
Type Model Outer Diameter
High pressure DTH Hammer
3 inch JD25A 71mm
3.5 inch JD35A/M30 82mm
4 inch JD45A/QL40A/M40/SD4 99mm
5 inch JD55A/QL50A/M50/SD5 125mm
6 inch JD65A/QL60A/M60/SD6 142mm
8 inch JD85A/QL80A/M80/SD8 180mm
10 inch HD100A/SD10 225mm
12 inch JD125A/SD12 275mm
14 inch JD140A -
Middel Pressure DTH Hammer
2.5 inch BR1 56mm
3 inch BR2 64mm
3.5 inch BR3 82mm
Lower Pressure DTH Hammer
3 inch CIR65 68mm
3.5 inch CIR70 76mm
4 inch CIR90 99mm
5 inch CIR110 110mm
6 inch CIR150 150mm
8 inch CIR170 170mm
Back Hammer
6 inch BH140 155mm
8 inch BH170 190mm
10 inch BH190 220mm
12 inch BH240 190mm
hammer
Type Model Length Weight External Dia.(mm) Hole Range
(mm) (kg) (mm)
3.5 inch DHD3.5 930 25 82 90-110
4 inch DHD340 1030 39 99 110-135
SD4 1084 40.5 99
QL40 1097 41 99
Mission40 1005 40 99
5 inch DHD350 1214 76.5 125 135-155
SD5 1175 72.5 125
QL50 1147 73 125
Mission50 1110 68.5 125
6 inch DHD360 1248 100 142 155-190
SD6 1261 100 142
QL60 1212 95 146
Mission60 1161 90 146
8 inch D85 1492 188 180 195-254
SD8 1463 192 180
QL80 1465 182 180
Mission80 1338 176 180
10 inch SD10 1502 290 226 254-311
NUMA100 1510 288 226
12 inch DHD1120 All can be designed according to your requests!
Numa120
Numa 125
14 inch JD140A


High pressure DTH Hammer

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
