CIR SERIES Lower Pressure button bits DTH bits

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO


Product Detail

Product Tags

Product Detail

Model Number 3/3.5,4,5,6,8,10,12 inches Certification ISO CE
Drill Rock hardness F=6-20 Warranty 1 Year
Condition New After-sales Service 7X24hours available
Type Down the hole drill bits Color As request
Processing Type Forging Button shape Spherical, Ballistic, Semi-ballistic
 Place of Origin Hebei, China (Mainland) Bit face shape Flat, concave, convex, drop center
Brand Name JCDRILL Other shanks COP,DHD,MISSION, SD
Usage Rock drilling Type DTH Hammer bits
Material Tungsten Carbide Machine Type Drilling Tool
Advantages high quality and factory prices Bit face shape Flat, concave, convex, drop center
Application Quarry or mining or well drilling Packing Carton and Wooden case

Product Features

1.Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
2.Recommended for eliminating hole deviation
3.Widely used drifting and tunneling
4.Bit face design is ideal for medium-hard to hard abrasive rock

The application of Low air pressure DTH Hammer:

Mining, quarrying, road construction and other projects drilling blasting hole, landslide protection, dam reinforcement, anchoring and other engineering holes, geothermal air conditioning, hydrology, wells and other fields.

Low air pressure holeDia.:65-220mm

Face type: drop center bit/concave face/convex face/double gauge face/flat face bit

Carbide button shape: domed/round button parabolic/semi-ballistic button ballistic button sharp button flat button

Drill rock type: Granite, Marble, Limestone, Basalt, ect.

Project types: Blast holes, Quarry , Anchoring, Infrastructure, Geothermal holes, Well drilling,ect

Lower Pressure Button Bits
Model Head,Dia.(mm) Shank Length Apline Q'ty Port Hole Q'ty Drill Bit Face
CIR CIR65 65,68 105 4 2 Flat Face
CIR70 76,85 111 4 2 Flat Face,Convex Face
CIR90 90,110 130 6 2 Concave Face,Convex Face
CIR110 110,130,140 140 6 2 Concave Face,Flat Face
CIR150 155,165,178 170 6 3 Convex Face
CIR170 195,203 170 6 3 Convex Face
Bit Shank Bit Diameter.(mm)
CIR-Series Low Air pressure DTH Bits
CIR65,HR65 65,68,75mm
CIR80,HR80 83,85mm
CIR90,HR90 85,90,110mm
CIR110,HR110 110,115,120,135mm
HR150, 155,160,165,170,180,210,220mm
1''-2''Middle Air pressure DTH Bits
BR1,BR2,HD25 64,70,76,80,82,90mm
3'' High Air pressure DTH Bits
COP32,BR3,HD35,IR3.5,COP34,QL30,M30 85,90,95,100,105mm
4'' High Air pressure DTH Bits
HD45,DHD340A,COP44,SD4,QL40,M40,HM4 105,110,115,120,127,130,133mm
5'' High Air pressure DTH Bits
HD55,DHD350,COP54,SD5,QL50,M50,HM5 130,135,140,146,152,165mm
6'' High Air pressure DTH Bits
HD65,DHD360,COP64,SD6,QL60,M60,HM6 152,155,165,171,190,203mm
8'' High Air pressure DTH Bits
HD85,DHD380,COP84,SD8,QL80,M80,HM8 200,203,216,222,226,229,,241,254,270,305mm
10'' High Air pressure DTH Bits
SD10,NUMA100 254,305,311,318,330mm
12'' High Air pressure DTH Bits
DHD1120,SD12,NUMA120,NUMA125 305,311,330,356,381mm

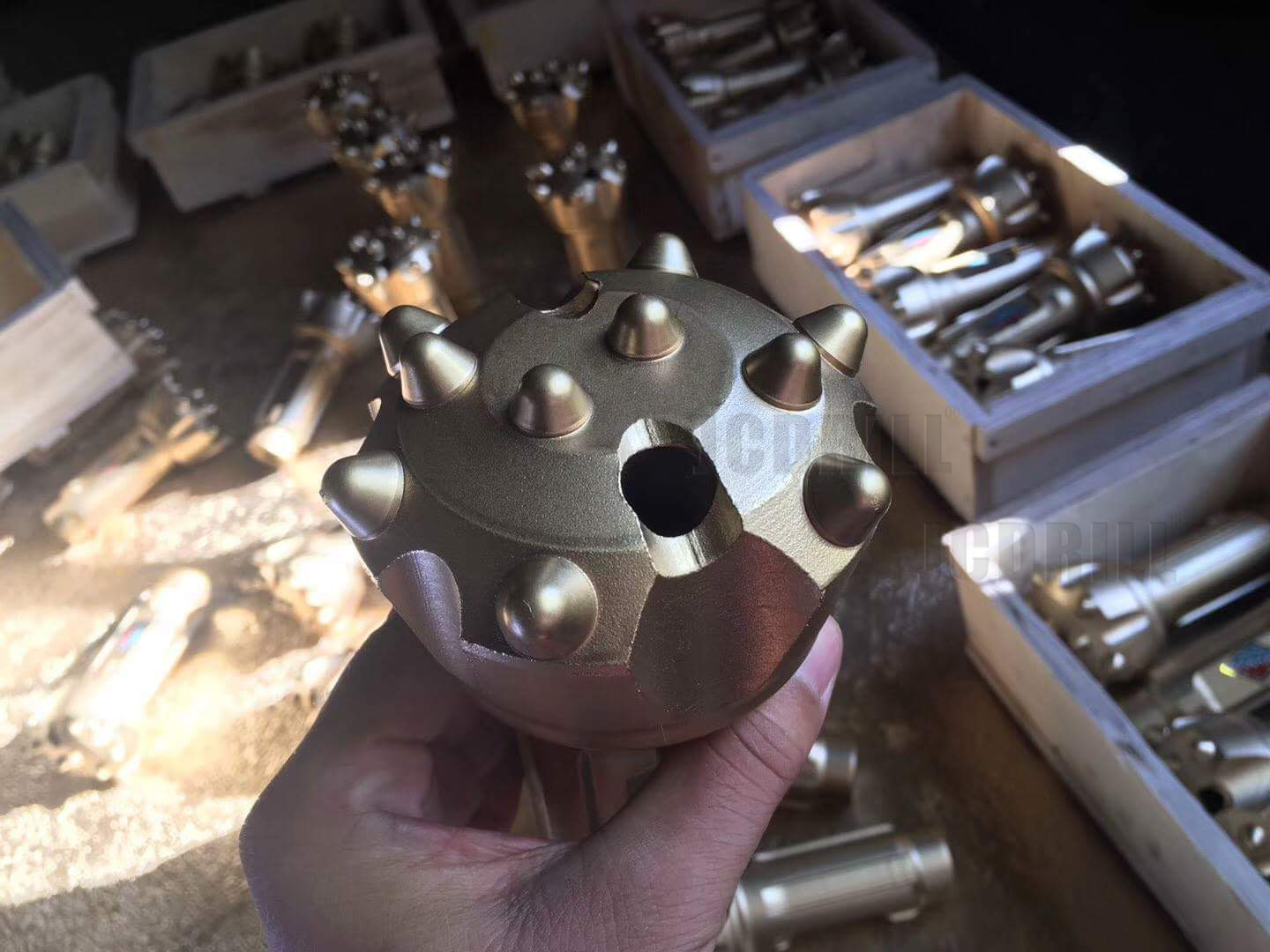

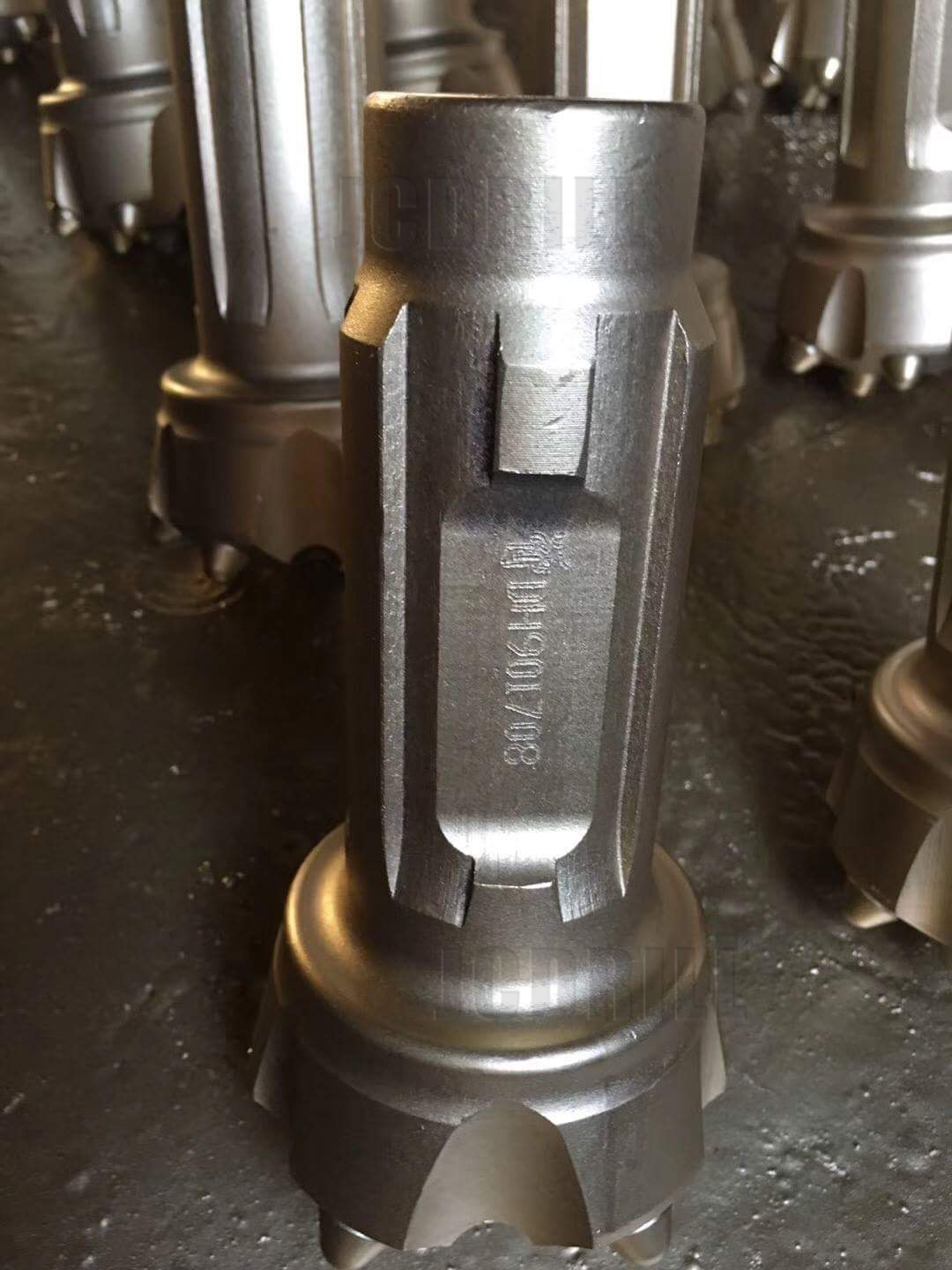

Lower Pressure button bits Lower Pressure button bits

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
