| Color | black, Yellow | Product name | anchor bolt |
| Finish | Bright(Uncoated) | Usage | Slope stabilization, micro pile, soil nail, rock anchor |
| System of Measurement | Metric | Key words 1 | anchor rod |
| Brand Name | JCDRILL | Key words 2 | self drilling anchor rod |
| Material | Steel | Key words 3 | full threaded steel anchor rod |
| Diameter | R25, R32, R38, R51, T30, T40, T52, T76, T103 | Name 1 | rock bolt |
| Capacity | High Load Capacity | Name 2 | hollow anchor bar |
| Standard | ISO | Name 3 | anchor rods |
Introduction
Featurer
JCDRILL self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.
Applications
Tunnelling Ground engineering
1. Face stabilization
2. Radial systematic anchoring
3. Foundation for avalanche protect
4. Stabilization of tunnel portals
5. Spilling
6. Root piling

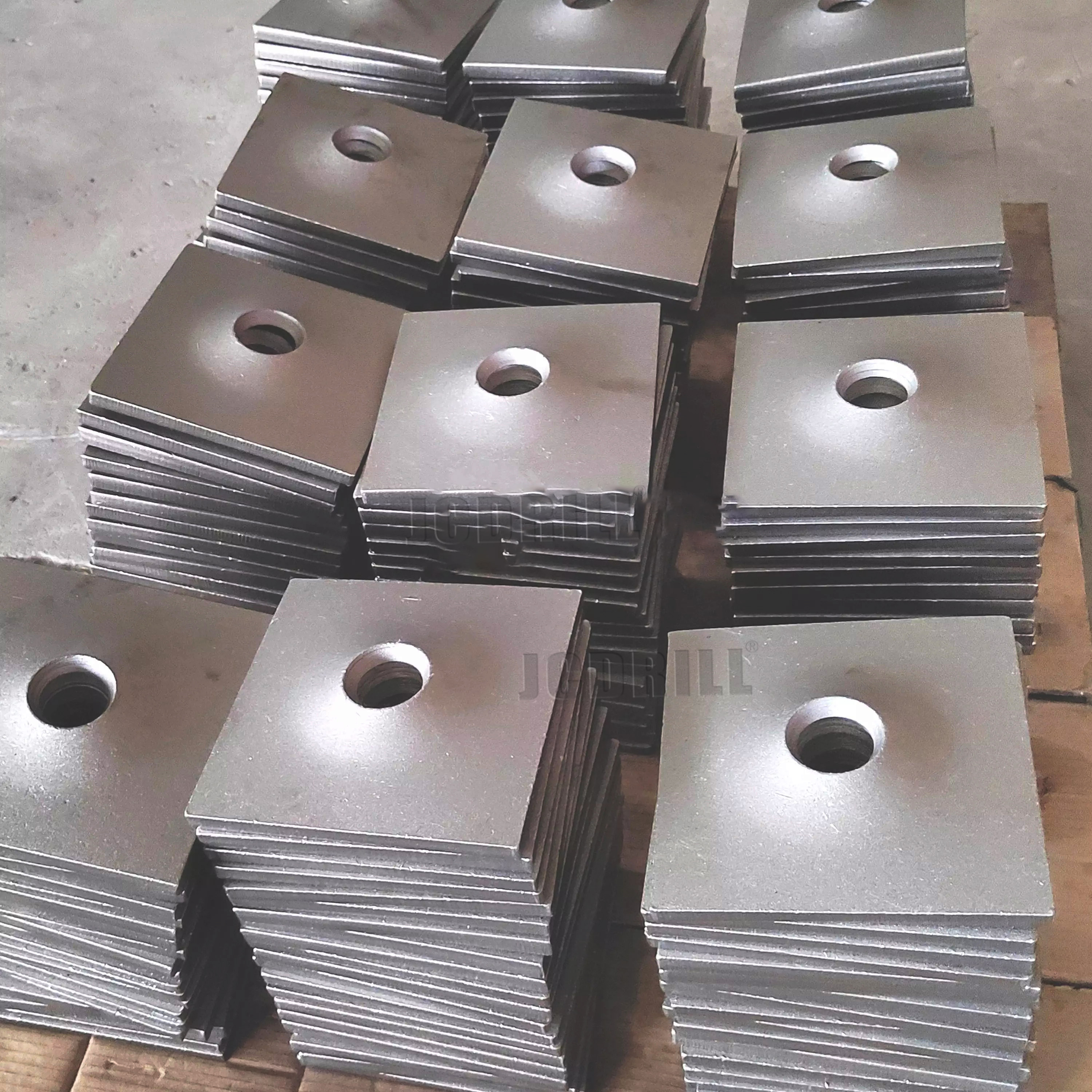

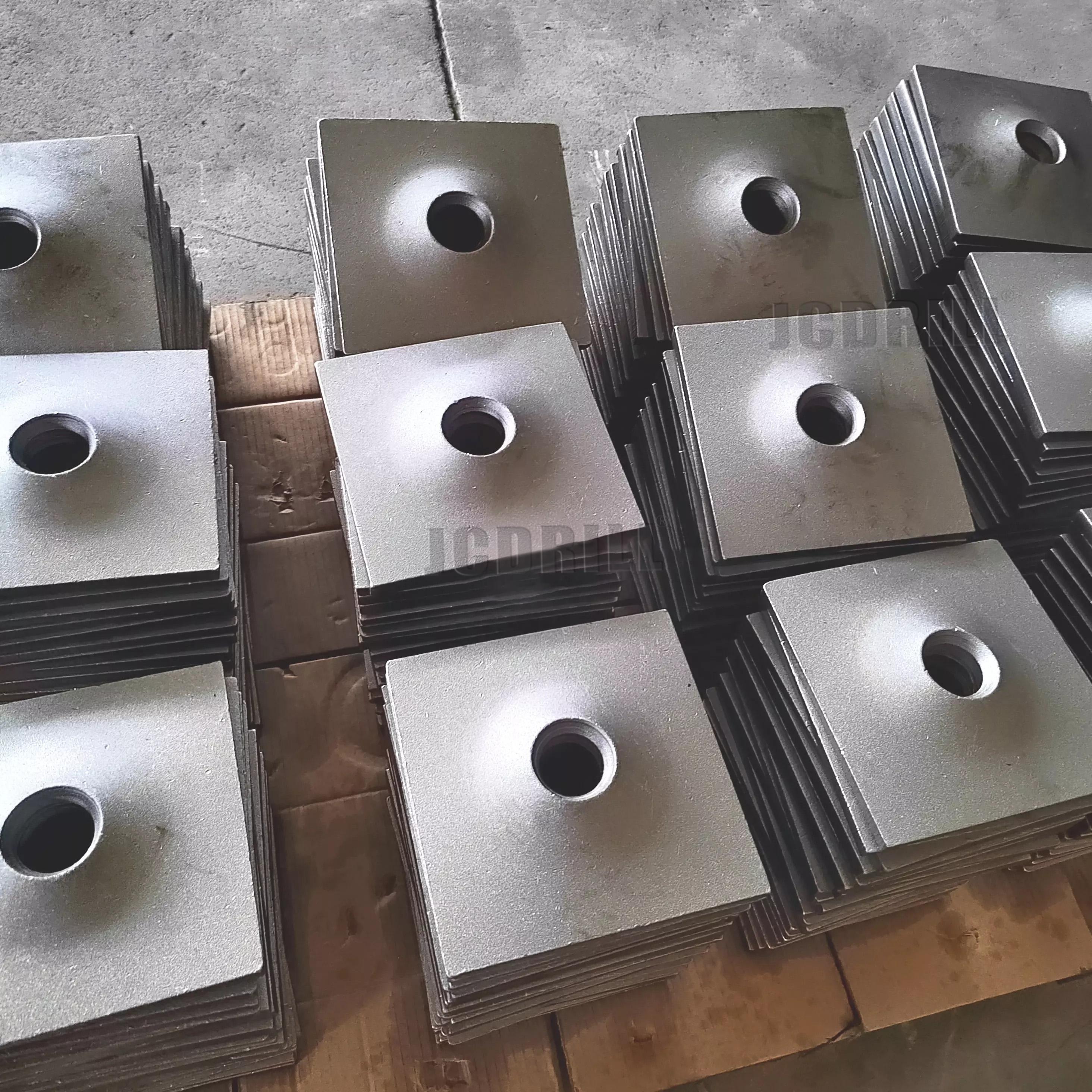

| T-Thread-Anchor Plate | |||||
 |
Size | Dimensions | Thickness | Hole Dia. | Weight |
| mm | mm | mm | kg | ||
| T30 | 150* 150 | 25 | 40 | 4.2 | |
| 200*200 | 8 | 36 | 2.43 | ||
| 200*200 | 12 | 38 | 3.85 | ||
| T40/20 | 115*115 | 20 | 56 | 1.6 | |
| T40 | 200*200 | 12 | 56 | 3.5 | |
| 200*200 | 30 | 56 | 8.5 | ||
| T40/16 | 125*125 | 24 | 56 | 2.4 | |
| 200*200 | 15 | 54 | 4.58 | ||
| T52 | 145*145 | 27 | 65 | 3.6 | |
| 220*220 | 35 | 65 | 13.1 | ||
| T73 | 175*175 | 34 | 80 | 6.8 | |
| 250*250 | 40 | 80 | 18 | ||
| T76 | 250*250 | 60 | 80 | 26.9 | |
| T103/78 | 240*240 | 48 | 110 | 18 | |
| 300*300 | 50 | 110 | 32.6 | ||
| T103/51 | 330*330 | 60 | 110 | 46.5 | |
| 285*285 | 67 | 110 | 37.6 | ||
| T111/82 | 300*300 | 80 | 130 | 47.8 | |
| T111/75 | 350*350 | 90 | 130 | 76.8 | |
| T127/103 | 250*250 | 50 | 140 | 18.4 | |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
