| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Down the hole drill bits | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Hebei, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer bits |
| Material | Tungsten Carbide | Machine Type | Drilling Tool |
| Advantages | high quality and factory prices | Bit face shape | Flat, concave, convex, drop center |
| Application | Quarry or mining or well drilling | Packing | Carton and Wooden case |

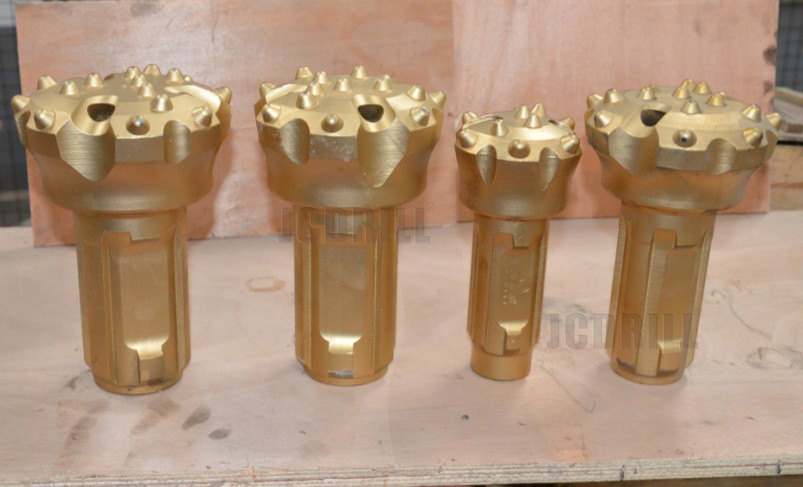

What is Low air pressure DTH hammer bit ?
Low air pressure DTH hammer bit is widely used in geotechnical engineering in a variety of hard, high hardness and other toughness can be poor tough rock, the following characteristics:
1. Low air pressure DTH hammer is a valve-type center exhaust hammer, the discharge of rock powder effect is good, reducing the re-broken rock slag, reducing the wear of the drill, improve the drilling efficiency.
2. Using the latest rock design theory to design the hammer of the internal structure of the size of the hammer to obtain the ideal energy transfer, a single hammer power, drilling faster, lower air consumption.
3. Selection of the highest quality raw materials and the most advanced processing technology, more stable performance, longer life.
4. Easy disassembly, low failure, easy maintenance.
| Lower Pressure Button Bits | ||||||
| Model | Head,Dia.（mm） | Shank Length | Apline Q'ty | Port Hole Q'ty | Drill Bit Face | |
| CIR | CIR65 | 65,68 | 105 | 4 | 2 | Flat Face |
| CIR70 | 76,85 | 111 | 4 | 2 | Flat Face,Convex Face | |
| CIR90 | 90,110 | 130 | 6 | 2 | Concave Face,Convex Face | |
| CIR110 | 110,130,140 | 140 | 6 | 2 | Concave Face,Flat Face | |
| CIR150 | 155,165,178 | 170 | 6 | 3 | Convex Face | |
| CIR170 | 195,203 | 170 | 6 | 3 | Convex Face | |
| Bit Shank | Bit Diameter.(mm) |
| CIR-Series Low Air pressure DTH Bits | |
| CIR65,HR65 | 65,68,75mm |
| CIR80,HR80 | 83,85mm |
| CIR90,HR90 | 85,90,110mm |
| CIR110,HR110 | 110,115,120,135mm |
| HR150, | 155,160,165,170,180,210,220mm |
| 1''-2''Middle Air pressure DTH Bits | |
| BR1,BR2,HD25 | 64,70,76,80,82,90mm |
| 3'' High Air pressure DTH Bits | |
| COP32,BR3,HD35,IR3.5,COP34,QL30,M30 | 85,90,95,100,105mm |
| 4'' High Air pressure DTH Bits | |
| HD45,DHD340A,COP44,SD4,QL40,M40,HM4 | 105,110,115,120,127,130,133mm |
| 5'' High Air pressure DTH Bits | |
| HD55,DHD350,COP54,SD5,QL50,M50,HM5 | 130,135,140,146,152,165mm |
| 6'' High Air pressure DTH Bits | |
| HD65,DHD360,COP64,SD6,QL60,M60,HM6 | 152,155,165,171,190,203mm |
| 8'' High Air pressure DTH Bits | |
| HD85,DHD380,COP84,SD8,QL80,M80,HM8 | 200,203,216,222,226,229,,241,254,270,305mm |
| 10'' High Air pressure DTH Bits | |
| SD10,NUMA100 | 254,305,311,318,330mm |
| 12'' High Air pressure DTH Bits | |
| DHD1120,SD12,NUMA120,NUMA125 | 305,311,330,356,381mm |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
