High Wear Resistance Thread T38 T45 T51 Coupling Sleeves for Bench Drilling

Short Description:

Product Name: Thread crossover coupling sleeve
Thread R25,R28,R32,R3212,T38,T45,
Diameter 45mm-63mm (or 1 3/8 inch to 1 7/9 inch)
Length 150mm-210mm (or 6 inch to 8 1/4 inch)
Material: High strength alloy steel bar
Type full-bridge, semi-bridge etc.
Color Yellow, Gold, Black or based on customer requirements.
MOQ: No MOQ required for testing and trial order

Product Detail

Product Tags

Product Detail

Condition New Color black or Customized
Applicable Industries Construction works , Energy & Mining, Tunneling Diameter 45MM-76MM
Video outgoing-inspection Provided Thread Type R25,R28,R32,R38,T38,T45,T51
Machinery Test Report Provided Key words Coupling Sleeve
 Brand Name Jcdrill Application Mining / Quarrying / Tunneling/Blasting
Type Drill Sleeve Length 150MM-235MM
Machine Type Drilling Tool Formation Hard / Medium hard / Soft Rock Formation
Material Carbide Bridge type Semi-bridge / Full-bridge
Processing Type Forging Raw Material High quality alloy steel
Use Mining

Product Features

Introduction

Thread R38 T38 T45 T51 Coupling Sleeves for Bench Drilling , High Wear Resistance

Couplings sleeve are used to well connect the shank adapter to the drill rods

or well contact two extension rods for transmitting energy. It has standard type

coupling and crossover coupling.

Basic Information

Product Name: Thread coupling sleeve
Thread R25,R28,R32,R38,T38,T45,T51
Diameter 35mm-77mm (or 1 3/8 inch to 3 inch)
Length 150mm-235mm (or 6 inch to 9 1/4 inch)
Material: High strength alloy steel bar
Type full-bridge, semi-bridge etc.
Color Yellow, Gold, Black or based on customer requirements.
MOQ: No MOQ required for testing and trial order



Couplings sleeve are used to well connect the shank adapter to the drill rods

or well contact two extension rods for transmitting energy.

other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission. Couplings are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.
We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.
Semi-Bridge Coupling sleeve
- Small non-threaded bridge in the center
- Steel cannot thread past bridge area
- Smaller diameter steel end portions fit together in the centre bridge area of the coupling
- Semi-bridged couplings are most suited to high torque machines
- Most rope and T threaded couplings are semi-bridged
Full-Bridge Coupling sleeve
- Eliminates the potential for the coupling to creep along the threaded joints
- Typically used in surface applications
- Better uncoupling characteristics and tend to maintain tighter joints
- Less chance of jamming
- Best suited to machines equipped with independent rotation (i. E., S36IR rock drill)

It has standard type coupling and crossover coupling.



T51

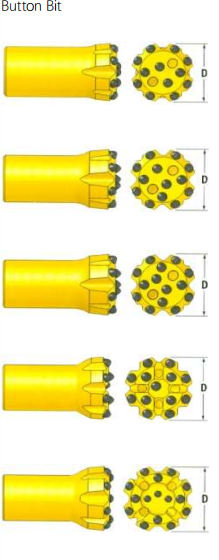

Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side (KG)
 1 spherical Buttons
89 3 1/2 4x13 8x13 40° 2 4.9
89 3 1/2 5x13 8x13 35° 2 1 4.9
89 3 1/2 3x11,2x11 35° 4 4.9
89 3 1/2 4x11,1x11 8x13 35° 4 4.9
102 3 1/2 4x13,1x13 8x13 35° 4 4.9
102 4 4x14 8x14 40° 2 5.8
102 4 6x13 8x16 35° 2 1 5.8
102 4 3x13,2x13 6x14 35° 3 1 5.8
102 4 4x13,1x13 8x14 35° 4 5.8
115 4 4x13,2x13 8x13 35° 4 1 5.8
115 4 1/2 6x14 8x14 35° 2 6.8
115 4 1/2 6x14 8x16 35° 2 6.8
115 4 1/2 4x13,2x13 8x14 35° 4 6.8
115 4 1/2 4x13,3x13 8x14 35° 4 6.8
115 4 1/2 4x14,2x14 8x16 35° 4 6.8
127 5 8x14 8x16 35° 2 1 7.5
127 5 4x16,2x13 8x16 35° 4 7.5
127 5 4x14,3x14 8x14 35° 4 7.5
Parabolic Buttons
89 3 1/2 5x13 8x13 35° 2 1 4.9
89 3 1/2 3x11,2x11 6x13 35° 4 4.9
89 3 1/2 4x11,1x11 8x13 35° 4 4.9
89 3 1/2 4x13,1x13 8x13 35° 4 4.9
102 4 4x14 8x14 40° 2 5.8
102 4 6x13 8x16 35° 2 1 5.8
102 4 3x13,2x13 6x14 35° 3 1 5.2
102 4 4x13,1x13 8x14 35° 4 5.8
102 4 4x13,2x13 8x13 35° 4 1 5.8
115 4 1/2 6x14 8x16 35° 2 6.8
115 4 1/2 4x13,2x13 8x14 35° 4 6.8
115 4 1/2 4x13,3x13 8x14 35° 4 6.8
115 4 1/2 4x14,2x14 8x16 35° 4 6.8

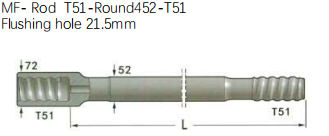

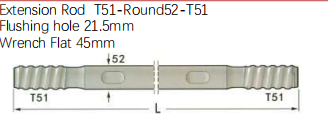

Drill Roll Length Dimaeter Weight
mm inch mm inch (KG)
 2 3050 10' 52 2 45.3
3660 12' 52 2 54.1
4270 14' 52 2 63
4880 16' 52 2 71.8
5530 18' 52 2 81.2
6095 20' 52 2 89.4
 3 1525 5' 52 2 26.2
1830 6' 52 2 30.6
3050 10' 52 2 48.3
3660 12' 52 2 57.1
4270 14' 52 2 66
4880 16' 52 2 74.8
5530 18' 52 2 84.2
6095 20' 52 2 92.4
Coupling Length Dimaeter Weight
mm inch mm inch (KG)
 4 225 8 7/8 71 2 51/64 4.6
225 8 7/8 76 3 4.8
235 9 1/4 72 2 7/8 4.7
235 9 1/4 77 3 4.9


详情12 详情13

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
