| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |
Introduction
Features:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption.
2. Smooth performance and long service life of SOLLROC DTH hammer due to high quality alloy steel materials and advanced producing technology.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Available for international standard thread and brand shank

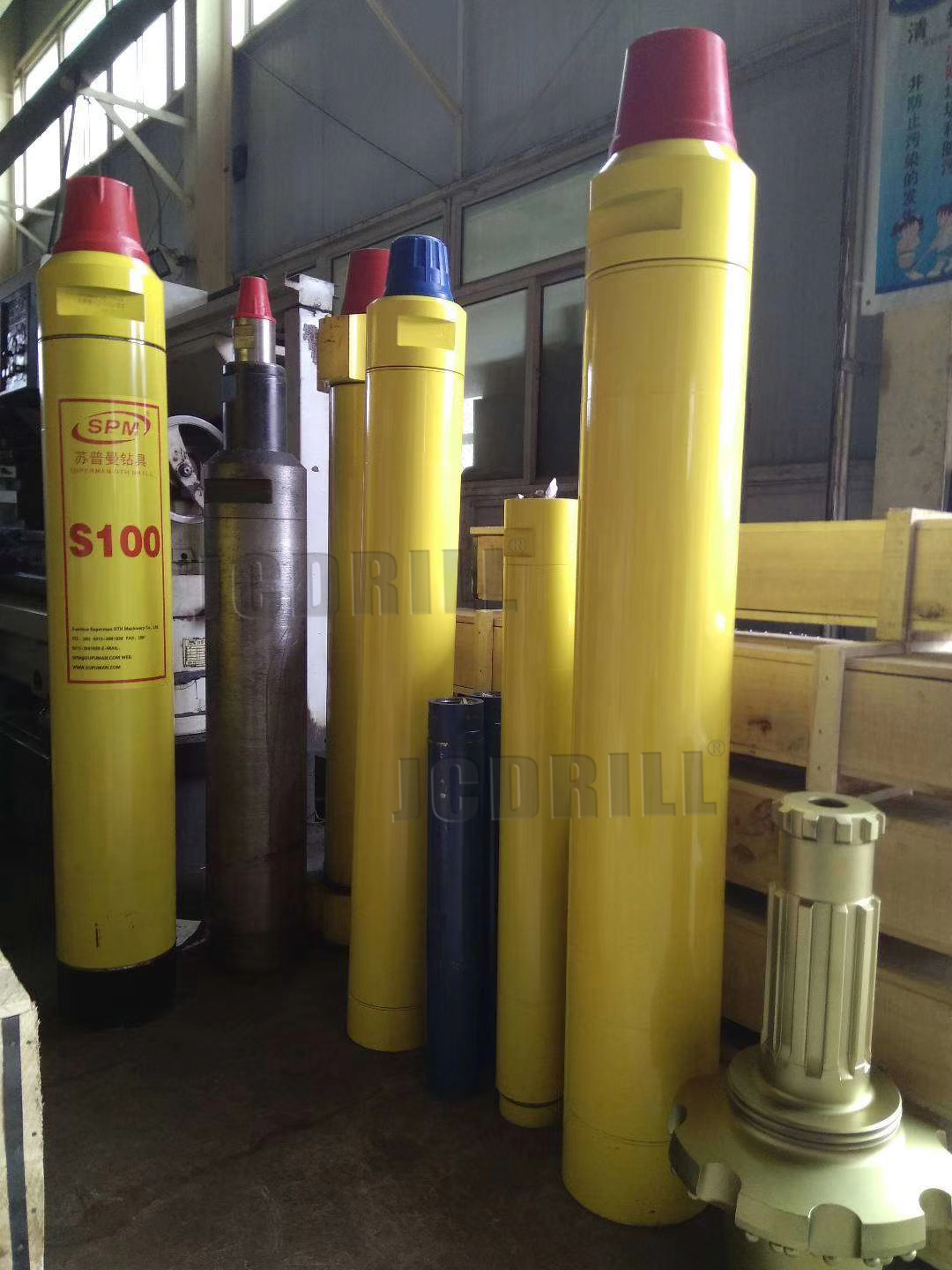

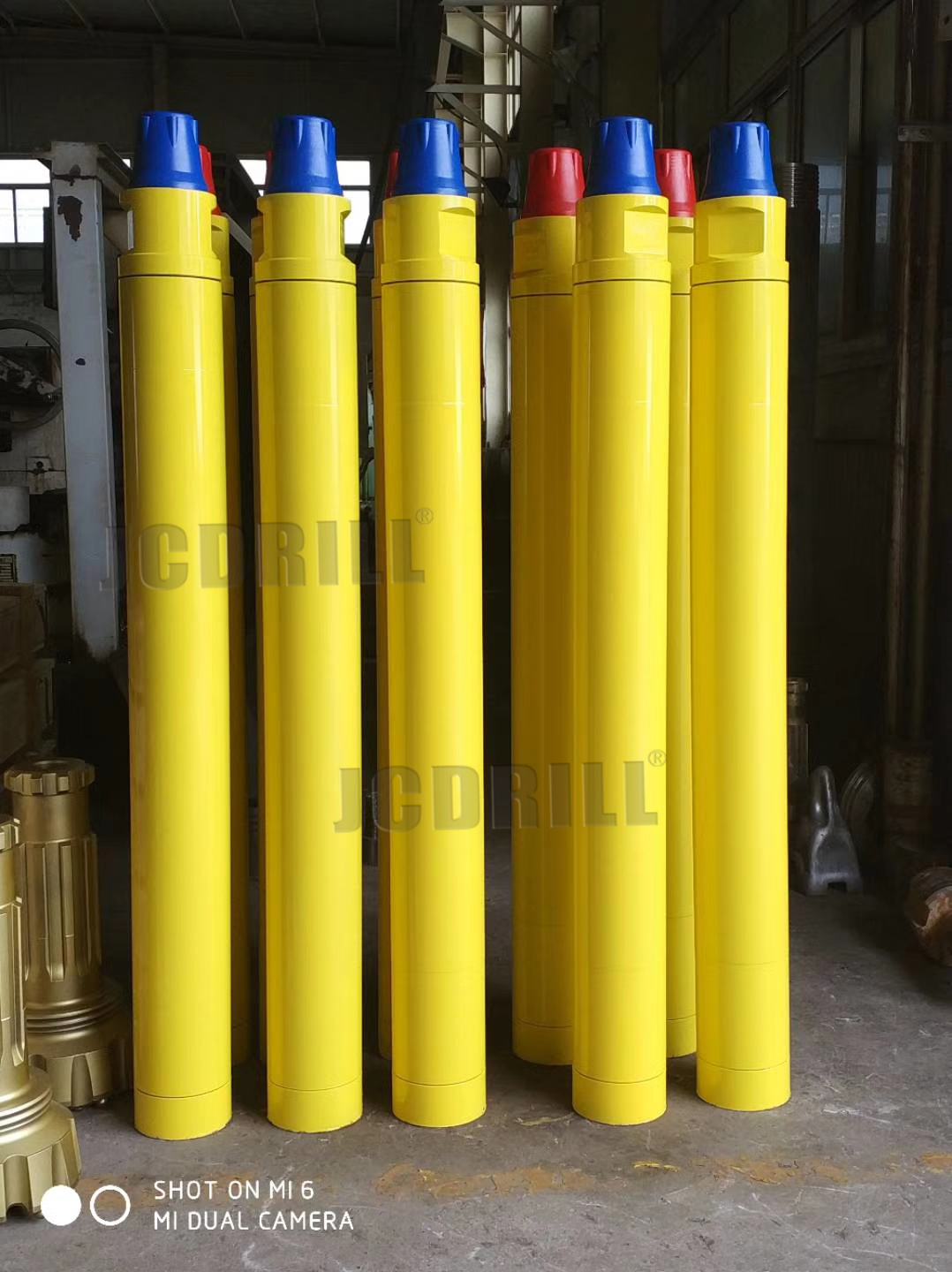

| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Type | Model | Length | Weight | External Dia.(mm) | Hole Range |
| (mm) | (kg) | (mm) | |||
| 3.5 inch | DHD3.5 | 930 | 25 | 82 | 90-110 |
| 4 inch | DHD340 | 1030 | 39 | 99 | 110-135 |
| SD4 | 1084 | 40.5 | 99 | ||
| QL40 | 1097 | 41 | 99 | ||
| Mission40 | 1005 | 40 | 99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | 125 | 135-155 |
| SD5 | 1175 | 72.5 | 125 | ||
| QL50 | 1147 | 73 | 125 | ||
| Mission50 | 1110 | 68.5 | 125 | ||
| 6 inch | DHD360 | 1248 | 100 | 142 | 155-190 |
| SD6 | 1261 | 100 | 142 | ||
| QL60 | 1212 | 95 | 146 | ||
| Mission60 | 1161 | 90 | 146 | ||
| 8 inch | D85 | 1492 | 188 | 180 | 195-254 |
| SD8 | 1463 | 192 | 180 | ||
| QL80 | 1465 | 182 | 180 | ||
| Mission80 | 1338 | 176 | 180 | ||
| 10 inch | SD10 | 1502 | 290 | 226 | 254-311 |
| NUMA100 | 1510 | 288 | 226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa 125 | |||||
| 14 inch | JD140A | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
