| Type: | Drill Pipe | Machine Type: | Drilling Tool |
| Applicable Industries: | Construction works,Energy & Mining | Material: | Chromium, 555iMnMo |
| Weight (KG): | 5 | Processing Type: | Forging |
| Video Inspection: | Provided | Use: | Energy & Mining |
| Machinery Test Report: | Provided | Product Name: | Pneumatic Drill Rod |
| Marketing Type: | New Product 2020 | Size (mm): | 500-6000 |
| Head Diameter (mm): | 26/28/30/32/34/36/38 | Steel Grade: | Ovako 495 |
| Hex Shank | Hex Shank | Hex Shank | Hex Shank |
Introduction

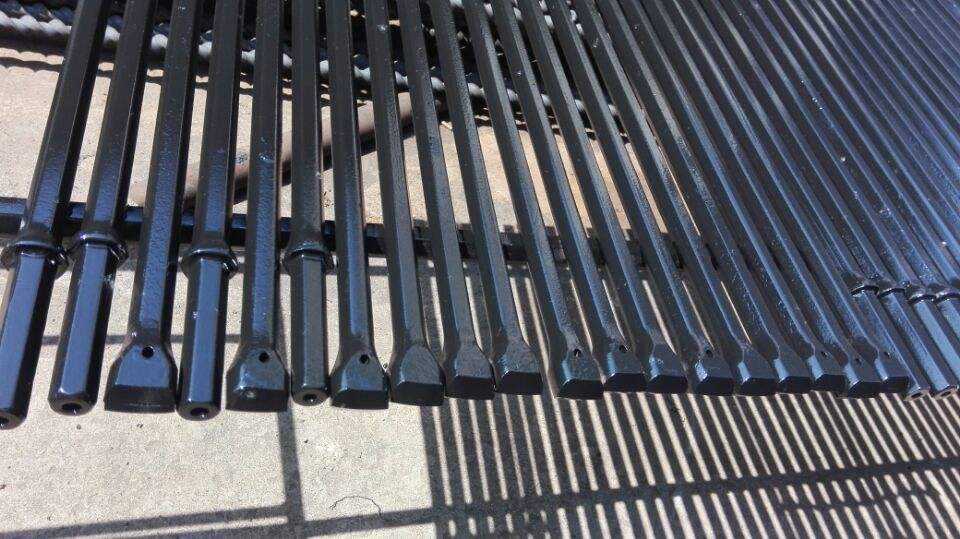

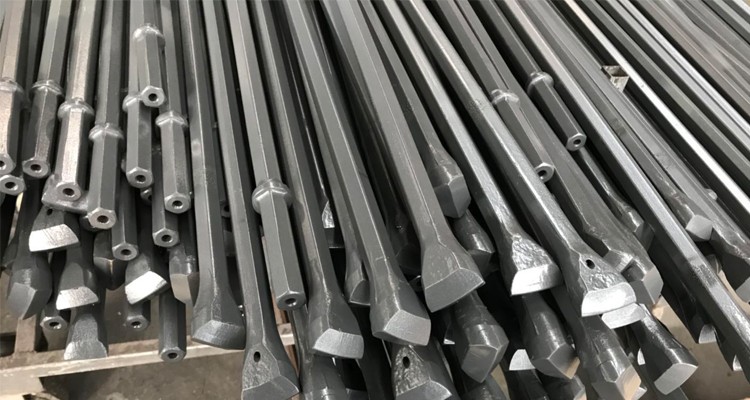

Integral Drill Steels are a fixed length with a shank at one end and a bit at the other ,and are able to drill to a depth equivalent to their effective length.The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.
To drill deep holes,the rods are designed to be used in a series where the lengh of any rod used in longer than the one used just before it.
To do this ,a series of rods must be produced so that the bit diameter is reduced for each increase in lengh if rod to prevent jamming of the bit in the hole.
The products in this brochure are the most cmmonly used.For other bit diameters and lengths.
| H22 | |||||
| Integral Drill Steels | Length | Bit Dia. | Weight | Parts No. | |
| mm | Foot | mm | (kg) | ||
Shank 22mm×108mm
|
800 | 2'7'' | 34 | 3 | I22-108-0800-34 |
| 1600 | 5'3'' | 33 | 5.2 | I22-108-1600-33 | |
| 2400 | 7'10'' | 32 | 8 | I22-108-2400-32 | |
| 3200 | 10'6'' | 31 | 10.2 | I22-108-3200-31 | |
| 4000 | 13'1'' | 30 | 12.9 | I22-108-4000-30 | |
| 4800 | 15'9'' | 29 | 15.1 | I22-108-4800-29 | |
| 5600 | 18'4'' | 28 | 17.6 | I22-108-5600-28 | |
| 6400 | 21' | 27 | 20.1 | I22-108-6400-27 | |
| 7200 | 23'6'' | 26 | 22.5 | I22-108-7200-26 | |
| 800 | 2'7'' | 40 | 3 | I22-108-0800-40 | |
| 1600 | 5'3'' | 39 | 5.2 | I22-108-1600-39 | |
| 2400 | 7'10'' | 38 | 8 | I22-108-2400-38 | |
| 3200 | 10'6'' | 37 | 10.2 | I22-108-3200-37 | |
| 4000 | 13'1'' | 36 | 12.9 | I22-108-4000-36 | |
| 4800 | 15'9'' | 35 | 15.1 | I22-108-4800-35 | |
| 5600 | 18'4'' | 34 | 17.6 | I22-108-5600-34 | |
| 6400 | 21' | 33 | 20.1 | I22-108-6400-33 | |
| 7200 | 23'6'' | 32 | 22.5 | I22-108-7200-32 | |
| 8000 | 26'2'' | 31 | 25 | I22-108-8000-31 | |
| 400 | 1'4'' | 34 | 1.7 | I22-108-0400-34 | |
| 800 | 2'7'' | 33 | 3 | I22-108-0800-33 | |
| 1200 | 3'11'' | 32 | 4.1 | I22-108-1200-32 | |
| 1600 | 5'3'' | 31 | 5.2 | I22-108-1600-31 | |
| 2000 | 6'7'' | 30 | 6.7 | I22-108-2000-30 | |
| 600 | 2' | 41 | 2.4 | I22-108-0600-41 | |
| 1200 | 3'11'' | 40 | 4.3 | I22-108-1200-40 | |
| 1800 | 5'11'' | 39 | 6.2 | I22-108-1800-39 | |
| 2400 | 7'10'' | 38 | 8 | I22-108-2400-38 | |
| 400 | 1'4'' | 41 | 1.7 | I22-108-0400-41 | |
| 800 | 2'7'' | 29 | 3 | I22-108-0800-29 | |
| 800 | 2'7'' | 38 | 3.1 | I22-108-0800-38 | |
| 1600 | 3'11'' | 39 | 4.3 | I22-108-1600-39 | |
| 2400 | 5'3'' | 36 | 5.2 | I22-108-2400-36 | |
| 3200 | 5'11'' | 36 | 6 | I22-108-3200-36 | |
| 4000 | 6'7'' | 32 | 6.7 | I22-108-4000-32 | |
| 4800 | 7'10'' | 27 | 8 | I22-108-4800-27 | |
| 5600 | 10'6'' | 27 | 10.2 | I22-108-5600-27 | |
| 6400 | 10'6'' | 32 | 10.3 | I22-108-6400-32 | |
| 7200 | 21 | 20 | 20.1 | I22-108-7200-20 | |
| 8000 | 26'2'' | 26 | 25 | I22-108-8000-26 | |
Packing & Delivery
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
