Rock Drilling Hex22*108mm Chisel Head Integral Drill Rod Or Steel Manufacture

Short Description:

Type: Drill Pipe
Applicable Industries: Construction works,Energy & Mining
Weight (KG): 5
Video Inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Head Diameter (mm): 26/28/30/32/34/36/38
Hex Shank Hex Shank

Product Detail

Product Tags

Product Detail

Type: Drill Pipe Machine Type: Drilling Tool
Applicable Industries: Construction works,Energy & Mining Material: Chromium, 555iMnMo
Weight (KG): 5 Processing Type: Forging
Video Inspection: Provided Use: Energy & Mining
Machinery Test Report: Provided Product Name: Pneumatic Drill Rod
Marketing Type: New Product 2020 Size (mm): 500-6000
Head Diameter (mm): 26/28/30/32/34/36/38 Steel Grade: Ovako 495
Hex Shank Hex Shank Hex Shank Hex Shank

Product Features

Introduction

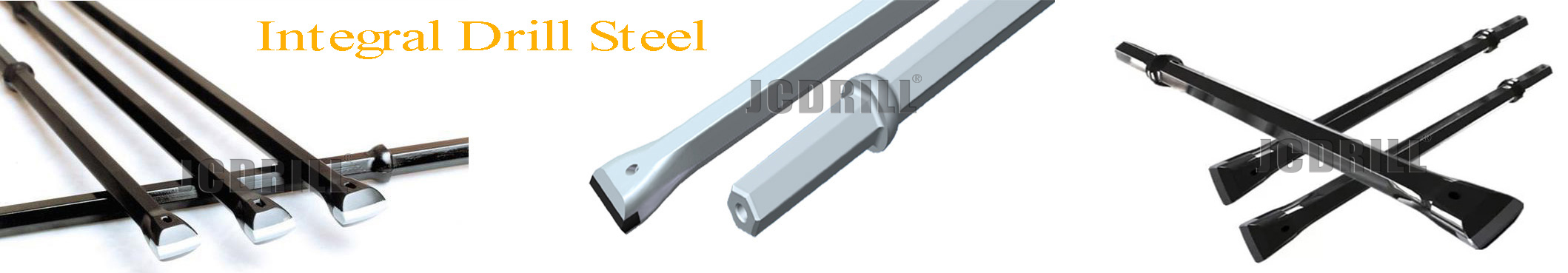

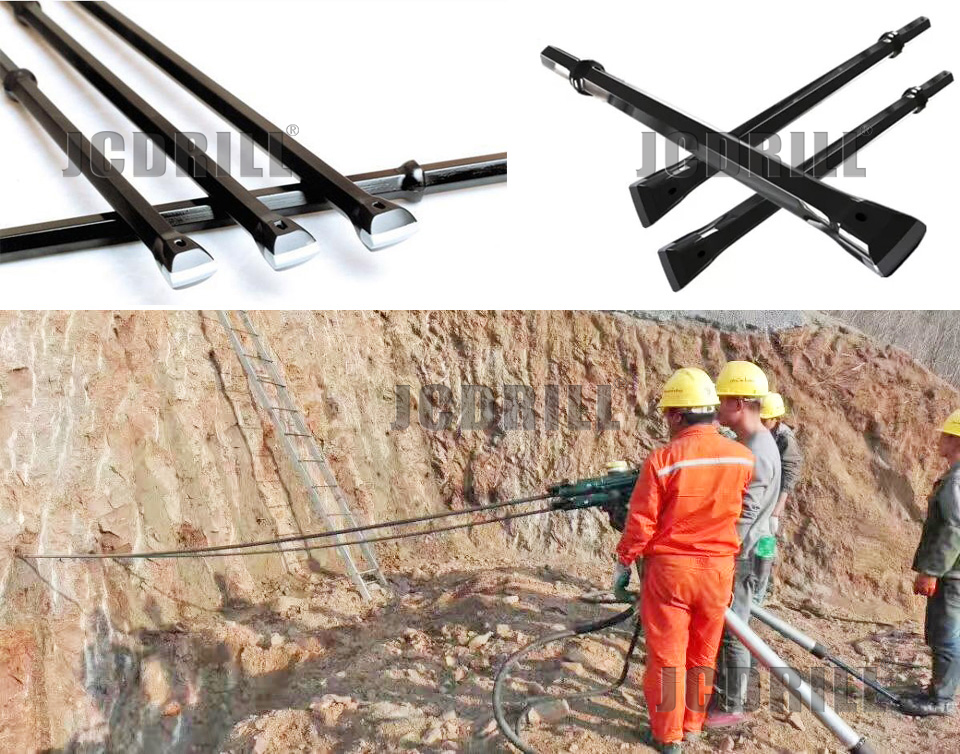

Integral drill rod, another name called integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling . shank H22x108mm, H19x108mm, and standard hex. Bit diameters include 20-42mm, different lengths are available from 400mm to 6000mm usually.
FEATURES AT A GLANCE
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.



H22
Integral Drill Steels Length Bit Dia. Weight  Parts No.
mm Foot mm (kg)
Shank 22mm×108mmSHANK H22 Integral Steels



























































800 2'7'' 34  3 I22-108-0800-34
1600 5'3'' 33 5.2 I22-108-1600-33
2400 7'10'' 32 8 I22-108-2400-32
3200 10'6'' 31 10.2 I22-108-3200-31
4000 13'1'' 30 12.9 I22-108-4000-30
4800 15'9'' 29 15.1 I22-108-4800-29
5600 18'4'' 28 17.6 I22-108-5600-28
6400 21' 27 20.1 I22-108-6400-27
7200 23'6'' 26 22.5 I22-108-7200-26
800 2'7'' 40 3 I22-108-0800-40
1600 5'3'' 39 5.2 I22-108-1600-39
2400 7'10'' 38 8 I22-108-2400-38
3200 10'6'' 37 10.2 I22-108-3200-37
4000 13'1'' 36 12.9 I22-108-4000-36
4800 15'9'' 35 15.1 I22-108-4800-35
5600 18'4'' 34 17.6 I22-108-5600-34
6400 21' 33 20.1 I22-108-6400-33
7200 23'6'' 32 22.5 I22-108-7200-32
8000 26'2'' 31 25 I22-108-8000-31
400 1'4'' 34 1.7 I22-108-0400-34
800 2'7'' 33 3 I22-108-0800-33
1200 3'11'' 32 4.1 I22-108-1200-32
1600 5'3'' 31 5.2 I22-108-1600-31
2000 6'7'' 30 6.7 I22-108-2000-30
600 2' 41 2.4 I22-108-0600-41
1200 3'11'' 40 4.3 I22-108-1200-40
1800 5'11'' 39 6.2 I22-108-1800-39
2400 7'10'' 38 8 I22-108-2400-38
400 1'4'' 41 1.7 I22-108-0400-41
800 2'7'' 29 3 I22-108-0800-29
800 2'7'' 38 3.1 I22-108-0800-38
1600 3'11'' 39 4.3 I22-108-1600-39
2400 5'3'' 36 5.2 I22-108-2400-36
3200 5'11'' 36 6 I22-108-3200-36
4000 6'7'' 32 6.7 I22-108-4000-32
4800 7'10'' 27 8 I22-108-4800-27
5600 10'6'' 27 10.2 I22-108-5600-27
6400 10'6'' 32 10.3 I22-108-6400-32
7200 21 20 20.1 I22-108-7200-20
8000 26'2'' 26 25 I22-108-8000-26


详情4详情5

Integral Drill Steel Rod (16)

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
