Type: | Drill Pipe | Machine Type: | Drilling Tool |
Applicable Industries: | Construction works,Energy & Mining | Material: | Chromium, 555iMnMo |
Weight (KG): | 5 | Processing Type: | Forging |
Video Inspection: | Provided | Use: | Energy & Mining |
Machinery Test Report: | Provided | Product Name: | Pneumatic Drill Rod |
Marketing Type: | New Product 2020 | Size (mm): | 500-6000 |
Head Diameter (mm): | 26/28/30/32/34/36/38 | Steel Grade: | Ovako 495 |
Hex Shank | Hex Shank | Hex Shank | Hex Shank |
Introduction

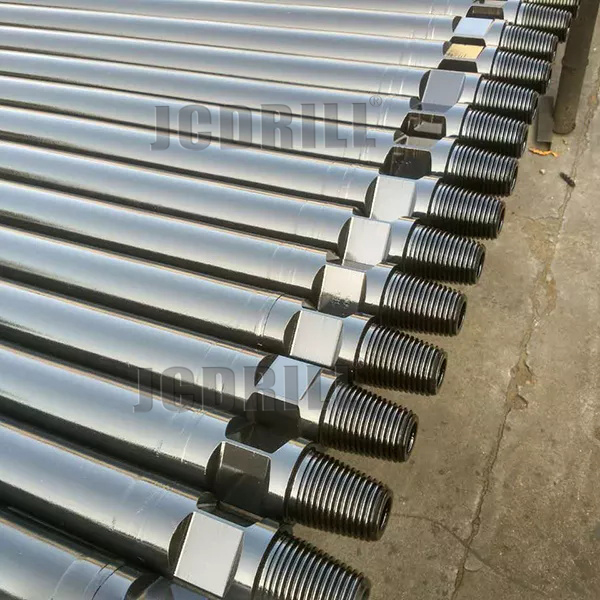

The drill pipe,the shortened form of down the hole drill pipe, is a kind of outer flat drill rod. It is mainly used in rotary percussive drilling that contains gases and liquids. Its main components include pipe (rod) body and joint.
Our down the hole drill pipe is manufactured based on the API standards. And according to specific requirements, we also provide this kind of drill pipe in different Chinese and American specifications.
As for its advantages, it has features of big rigidity, good sealing capacity, flat outer structure, and low torque and resistance when rotating.
As to the packaging, a bundle of drill pipes will be packed by one set of steel frame, and a bundle will have 9 to 40 drill pipes.
DTH drill pipes | ||||
Outer diameter | Thread | |||
Wall thickness | Length | |||
mm | inch | mm | mm | |
76 | 3 | API 2 3/8 REG API 2 7/8 REG API 3 1/2 REG API 4 1/2 REG API 2 3/8 IF API 2 7/8 IF API 3 1/2 IF API 4 1/2 IF BECO 3 1/2" |
4 | 1000-6000 |
6.3 | ||||
89 | 3 1/2 | 4 | 1000-6000 | |
6.3 | ||||
8.8 | ||||
102 | 4 | 6.3 | 4000-6000 | |
8.8 | ||||
114 | 4 1/2 | 6.3 | 4000-9000 | |
12.5 | ||||
127 | 5 | 6.3 | 4000-9000 | |
12.5 | ||||
19 | ||||
133 | 5 1/4 | 6.3 | 4000-9000 | |
12.5 | ||||
19 | ||||
140 | 5 1/2 | 8.8 | 4000-9000 | |
12.5 | ||||
19 |
Minimum Order Quantity | N/A |
Price | |
Packaging Details | Standard Export Delivery Package |
Delivery Time | 7days |
Payment Terms | T/T |
Supply Ability | Based on Detailed Order |
