Factory High Quality Friction Welding 102mm Drill Rod DTH Drill Pipe

Short Description:

Condition: New
Warranty: Unavailable
Applicable Industries: Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Place of Origin: Shandong, China
Brand Name: JCDRILL

Product Detail

Product Tags

Product Detail

Type: Drill Pipe Machine Type: Drilling Tool
Applicable Industries: Construction works,Energy & Mining Material: Chromium, 555iMnMo
Weight (KG): 5 Processing Type: Forging
Video Inspection: Provided Use: Energy & Mining
Machinery Test Report: Provided Product Name: Pneumatic Drill Rod
Marketing Type: New Product 2020 Size (mm): 500-6000
Head Diameter (mm): 26/28/30/32/34/36/38 Steel Grade: Ovako 495
Hex Shank Hex Shank Hex Shank Hex Shank

Product Features

Introduction

Feature



We adopts famous steel enterprise production of material to produce drill pipe,

and heat treatment of materials by using and integrated multi-processing furnace with international standard, Internal thickening technology has carried on the tempering process after friction welding, so the processing quality of drill pipe is stable, reliable ,use cycle greatly extended.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.

Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.

We can process different length, diameter and wall thickness and material of API standard thread rod, we also can design and manufacture drill pipe according to customers' requirement of the material, length, thickness and connection thread.

Applications

• Underground mining
• Quarry benching operations
• Water well drilling



Drill rods widely used in geological exploration, coal mining, water conservancy & hydropower, highway, railway, bridge, building construction etc.

DTH drill pipes
Outer diameter Thread
Wall thickness Length
mm inch mm mm
76 3 API 2 3/8 REG
API 2 7/8 REG
API 3 1/2 REG
API 4 1/2 REG
API 2 3/8 IF
API 2 7/8 IF
API 3 1/2 IF
API 4 1/2 IF
BECO 3 1/2"
4 1000-6000
6.3
89 3 1/2 4 1000-6000
6.3
8.8
102 4 6.3 4000-6000
8.8
114 4 1/2 6.3 4000-9000
12.5
127 5 6.3 4000-9000
12.5
19
133 5 1/4 6.3 4000-9000
12.5
19
140 5 1/2 8.8 4000-9000
12.5
19

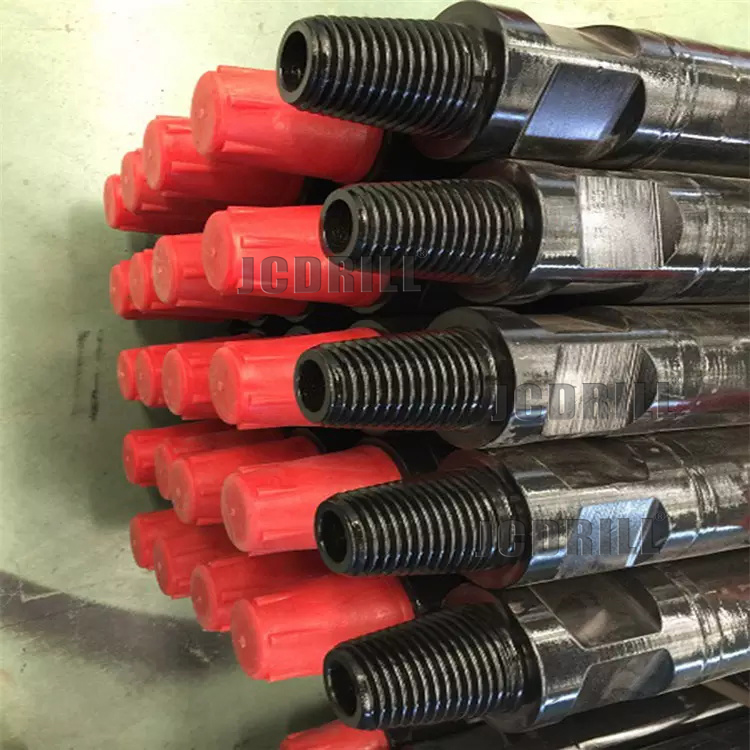

Drill rod Drill rod
