| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Down the hole drill bits | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Hebei, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer bits |
| Material | Tungsten Carbide | Machine Type | Drilling Tool |
| Advantages | high quality and factory prices | Bit face shape | Flat, concave, convex, drop center |
| Application | Quarry or mining or well drilling | Packing | Carton and Wooden case |

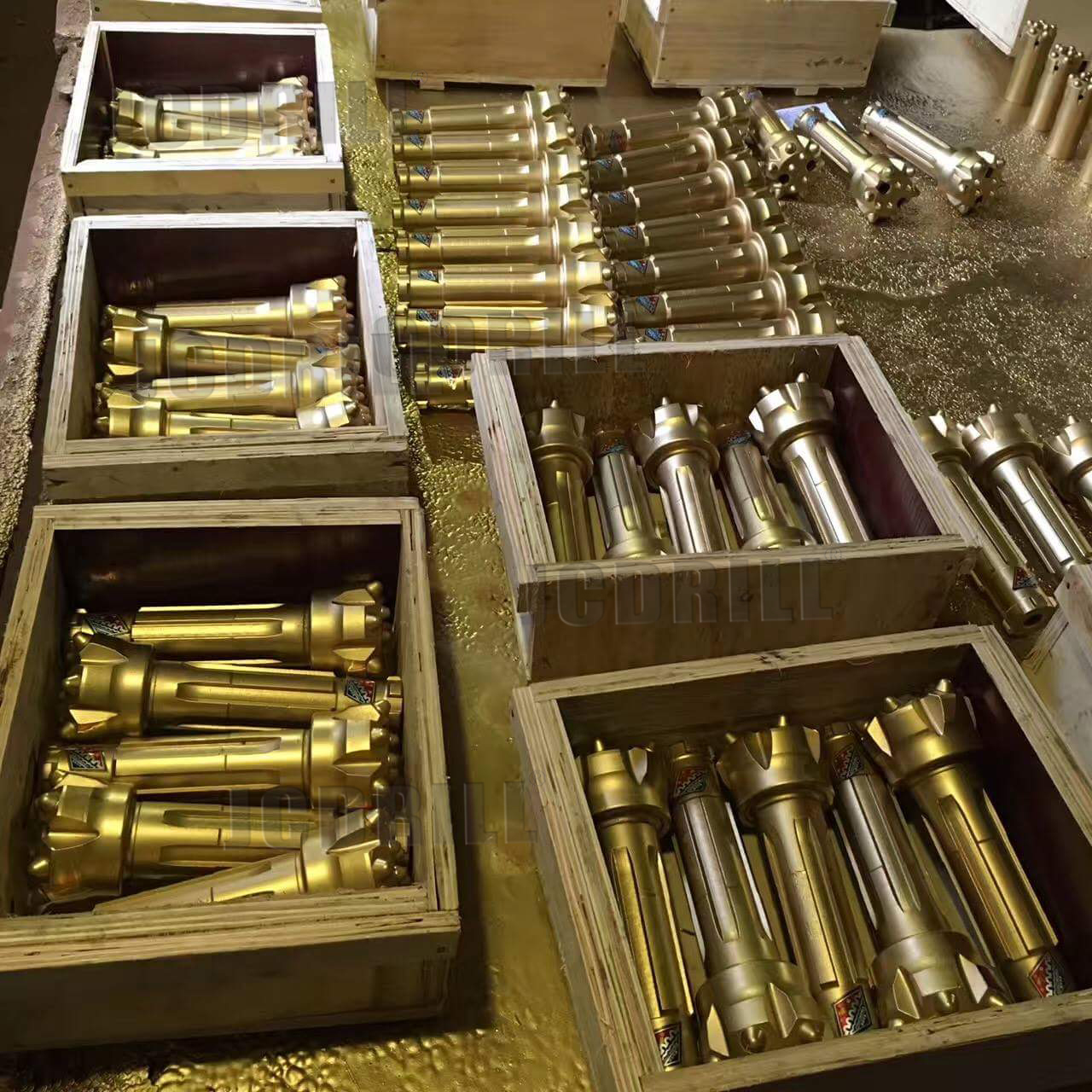

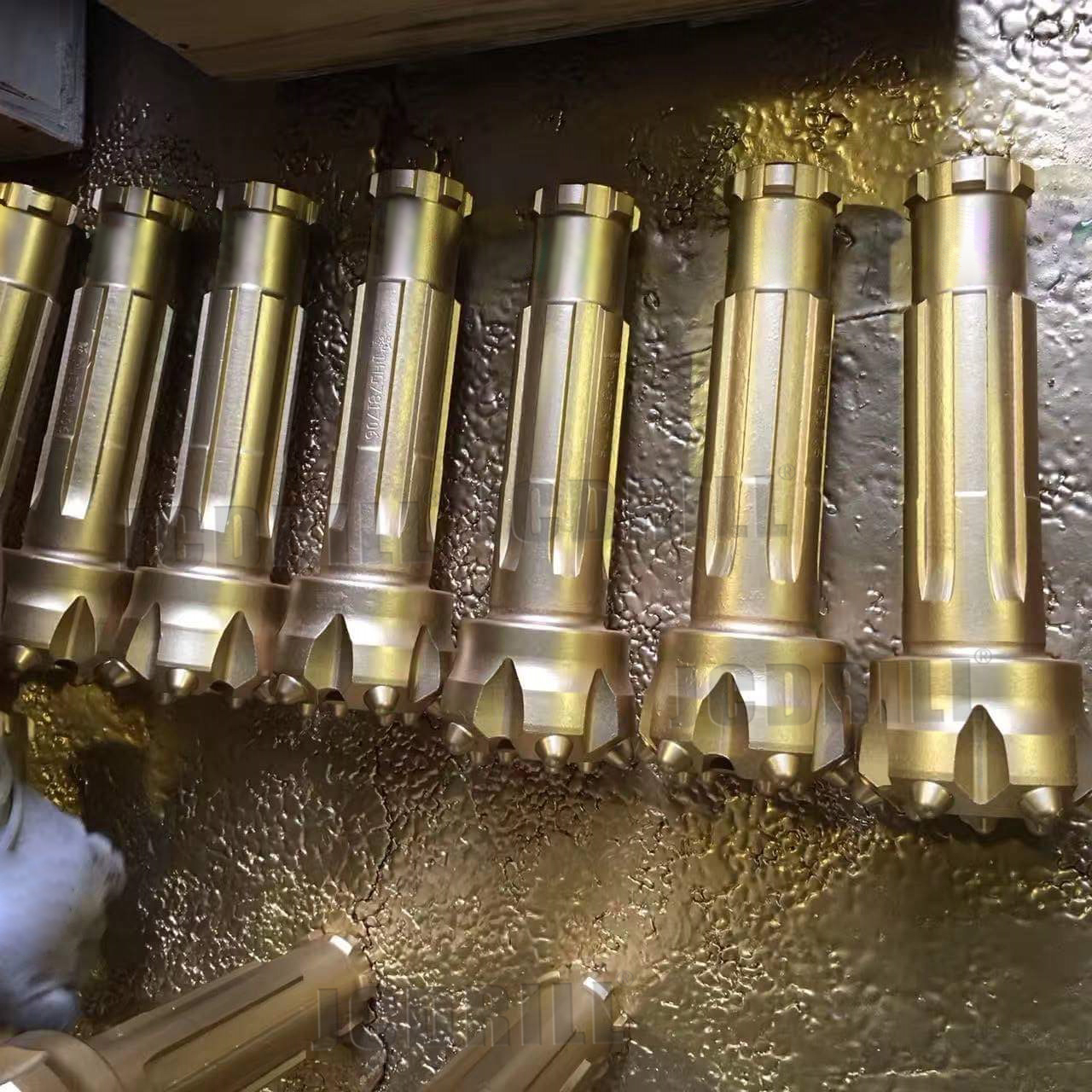

DTH Hammer Button Bits have high-air pressure and low-air pressure ones. With advanced design concept, better wear-resistance, better impact-resistance, higher drilling speed and longer service life, they are widely used in large-scale open pit mining, quarry and other construction projects.
There are four types of end face design for high wind pressure DTH bits: end face convex type,End face plane type, end face concave type and end face deep concave center type. Cemented carbide mostly adopts ball teeth, spring teeth or tooth distribution mode shared by ball teeth and spring teeth.
The DTH drill bit mainly used in geological exploration,coal mine,water conservancy and hydropower ,highway ,bridge,construction etc.
DTH hammer bits are used for blast hole drilling and water well drilling project.
Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.
| High Pressure button bits | ||||||
| Model | Head,Dia.（mm） | Shank Length | Apline Q'ty | Port Hole Q'ty | Drill Bit Face | |
| DHD | JD25A | 76,80,85,90 | 174 | 6 | 2 | Flat Face |
| DHD3.5 | 90,95,100,108 | 180 | 8 | Flat Face | ||
| DHD3.5A | Flat Face | |||||
| DHD340 | 108,115,127,130 | 209 | Concave Face | |||
| DHD340A | Concave Face | |||||
| DHD350 | 140,146,152,165,178 | 260 | Concave Face,Flat Face,Convex Face | |||
| DHD350A | Concave Face,Flat Face,Convex Face | |||||
| DHD350S | 127,130 | 260 | Convex Face | |||
| DHD360 | 154,165,171,178,190,203 | 308.5 | Concave Face,Flat Face | |||
| DHD360A | Concave Face,Flat Face | |||||
| DHD380 | 203,216,230,235,254,275,305 | 350 | 10 | Concave Face,Convex Face,Concave-Convex Face | ||
| DHD380A | Concave Face,Convex Face,Concave-Convex Face | |||||
| DHD1120 | 305,311,325,350,381,400,445,500 | 490 | 8 | 4 | Concave Face,Convex Face,Concave-Convex Face | |
| QL | QL40 | 108,115,127,130 | 108 | 10 | 2 | Convex Face |
| QL40A | Convex Face | |||||
| QL50 | 140,146,152,165,178 | 140 | 12 | Concave Face,Flat Face,Convex Face | ||
| QL50A | Concave Face,Flat Face,Convex Face | |||||
| QL60 | 154,165,171,178,190,203 | 154 | Concave Face,Flat Face | |||
| QL60A | Concave Face,Flat Face | |||||
| QL80 | 203,216,230,235,254,275,305 | 331 | 16 | Concave Face,Concave-Convex Face | ||
| QL80A | Concave Face,Concave-Convex Face | |||||
| NUMA | NUMA100 | 254,275,305,325,350,400 | 375 | 10 | 2,3,4 | Concave-Convex Face |
| NUMA100A | Concave-Convex Face | |||||
| N125 | 305,311,325,350,381,400,445 | 491 | 3,4 | Concave-Convex Face | ||
| MISSION | MISSION 30 | 90,95,100,108 | 225 | 8 | 2 | Flat Face |
| MISSION 40 | 108,115,127,130 | 228 | 12 | Concave Face | ||
| MISSION 50 | 140,146,152,165,178 | 260 | Concave Face,Flat Face,Convex Face | |||
| MISSION 60 | 154,165,171,178,190,203 | 231 | Concave Face,Flat Face | |||
| MISSION 80 | 203,216,230,235,254,275,305 | 329 | Concave Face,Concave-Convex Face | |||
| SD | SD4 | 108,115,127,130 | 260 | 8 | Convex Face | |
| SD5 | 140,146,152,165,178 | 259 | Concave Face,Flat Face,Convex Face | |||
| SD6 | 154,165,171,178,190,203 | 322 | Concave Face,Flat Face | |||
| SD8 | 203,216,230,235,254,275,305 | 321 | 2 3 | Concave Face,Concave-Convex Face | ||
| SD10 | 254,275,305,325,350,400 | 356 | 2 3 4 | Concave-Convex Face | ||
| SD12 | 305,311,325,350,381,400,445,500 | 470 | 3 4 | Concave-Convex Face | ||
| Bit Shank | Bit Diameter.(mm) |
| CIR-Series Low Air pressure DTH Bits | |
| CIR65,HR65 | 65,68,75mm |
| CIR80,HR80 | 83,85mm |
| CIR90,HR90 | 85,90,110mm |
| CIR110,HR110 | 110,115,120,135mm |
| HR150, | 155,160,165,170,180,210,220mm |
| 1''-2''Middle Air pressure DTH Bits | |
| BR1,BR2,HD25 | 64,70,76,80,82,90mm |
| 3'' High Air pressure DTH Bits | |
| COP32,BR3,HD35,IR3.5,COP34,QL30,M30 | 85,90,95,100,105mm |
| 4'' High Air pressure DTH Bits | |
| HD45,DHD340A,COP44,SD4,QL40,M40,HM4 | 105,110,115,120,127,130,133mm |
| 5'' High Air pressure DTH Bits | |
| HD55,DHD350,COP54,SD5,QL50,M50,HM5 | 130,135,140,146,152,165mm |
| 6'' High Air pressure DTH Bits | |
| HD65,DHD360,COP64,SD6,QL60,M60,HM6 | 152,155,165,171,190,203mm |
| 8'' High Air pressure DTH Bits | |
| HD85,DHD380,COP84,SD8,QL80,M80,HM8 | 200,203,216,222,226,229,,241,254,270,305mm |
| 10'' High Air pressure DTH Bits | |
| SD10,NUMA100 | 254,305,311,318,330mm |
| 12'' High Air pressure DTH Bits | |
| DHD1120,SD12,NUMA120,NUMA125 | 305,311,330,356,381mm |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
