Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
Drill Rock hardness | F=6-20 | Warranty | 1 Year |
Condition | New | After-sales Service | 7X24hours available |
Type | Rotary Drilling Rig | Color | As request |
Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
Usage | Rock drilling | Type | DTH Hammer |
Material | Carbide | Machine Type | Drilling Tool |
Introduction

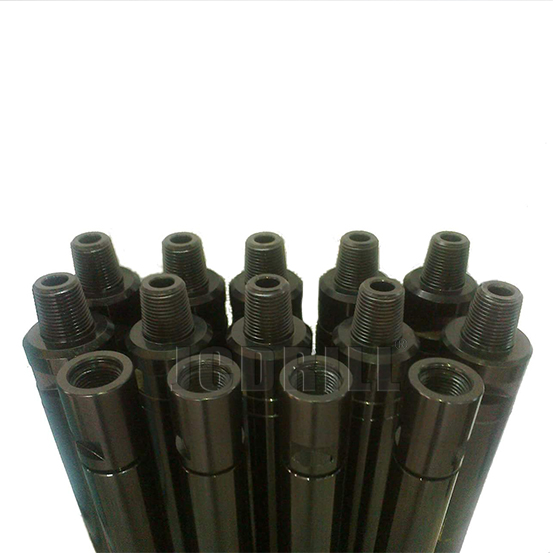

CIR series DTH Hammer, a kind of valve equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.
The compressed air is adopted as the driving force. To get a better performance and prevent dust pollution, some high-pressure water may be added into the air for wet rock drilling.
1) High quality;
2) High resistance;
3) High footage speed;
4) Very low breakage;
5)Wide application rang
DTH Hammer | ||
Type | Model | Outer Diameter |
High pressure DTH Hammer | ||
3 inch | JD25A | 71mm |
3.5 inch | JD35A/M30 | 82mm |
4 inch | JD45A/QL40A/M40/SD4 | 99mm |
5 inch | JD55A/QL50A/M50/SD5 | 125mm |
6 inch | JD65A/QL60A/M60/SD6 | 142mm |
8 inch | JD85A/QL80A/M80/SD8 | 180mm |
10 inch | HD100A/SD10 | 225mm |
12 inch | JD125A/SD12 | 275mm |
14 inch | JD140A | - |
Middel Pressure DTH Hammer | ||
2.5 inch | BR1 | 56mm |
3 inch | BR2 | 64mm |
3.5 inch | BR3 | 82mm |
Lower Pressure DTH Hammer | ||
3 inch | CIR65 | 68mm |
3.5 inch | CIR70 | 76mm |
4 inch | CIR90 | 99mm |
5 inch | CIR110 | 110mm |
6 inch | CIR150 | 150mm |
8 inch | CIR170 | 170mm |
Back Hammer | ||
6 inch | BH140 | 155mm |
8 inch | BH170 | 190mm |
10 inch | BH190 | 220mm |
12 inch | BH240 | 190mm |
Low Air Pressure DTH Hammer | ||||||
DTH hammer type: | CIR76 | CIR90 | CIR110 | CIR130 | CIR150 | CIR170 |
Bit Shank: | CIR76 | CIR90 | CIR110 | CIR110/CIR130 | CIR150 | All can be designed according to your requests! |
Top Sub Thread: | F48x10PIN | F48x10PIN | API 23/8" RGE BOX | API 23/8" RGE BOX | F70x10PIN | |
Bit Diameter: | 76(mm) | 90-120(mm) | 110-150(mm) | 130-175(mm) | 150-200(mm) | |
Working Pressure: | 4-10(bar) | 5-10(bar) | 5-10(bar) | 5-10(bar) | 5-10(bar) |
Minimum Order Quantity | N/A |
Price | |
Packaging Details | Standard Export Delivery Package |
Delivery Time | 7days |
Payment Terms | T/T |
Supply Ability | Based on Detailed Order |
