| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |
Introduction

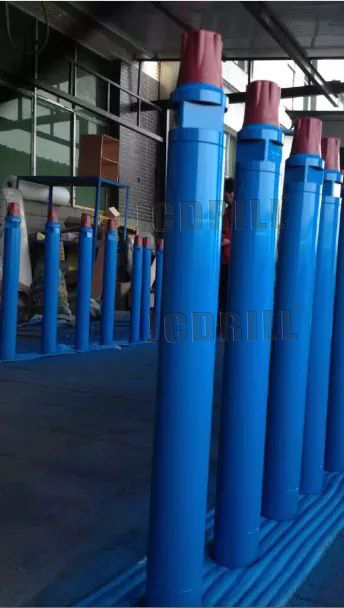

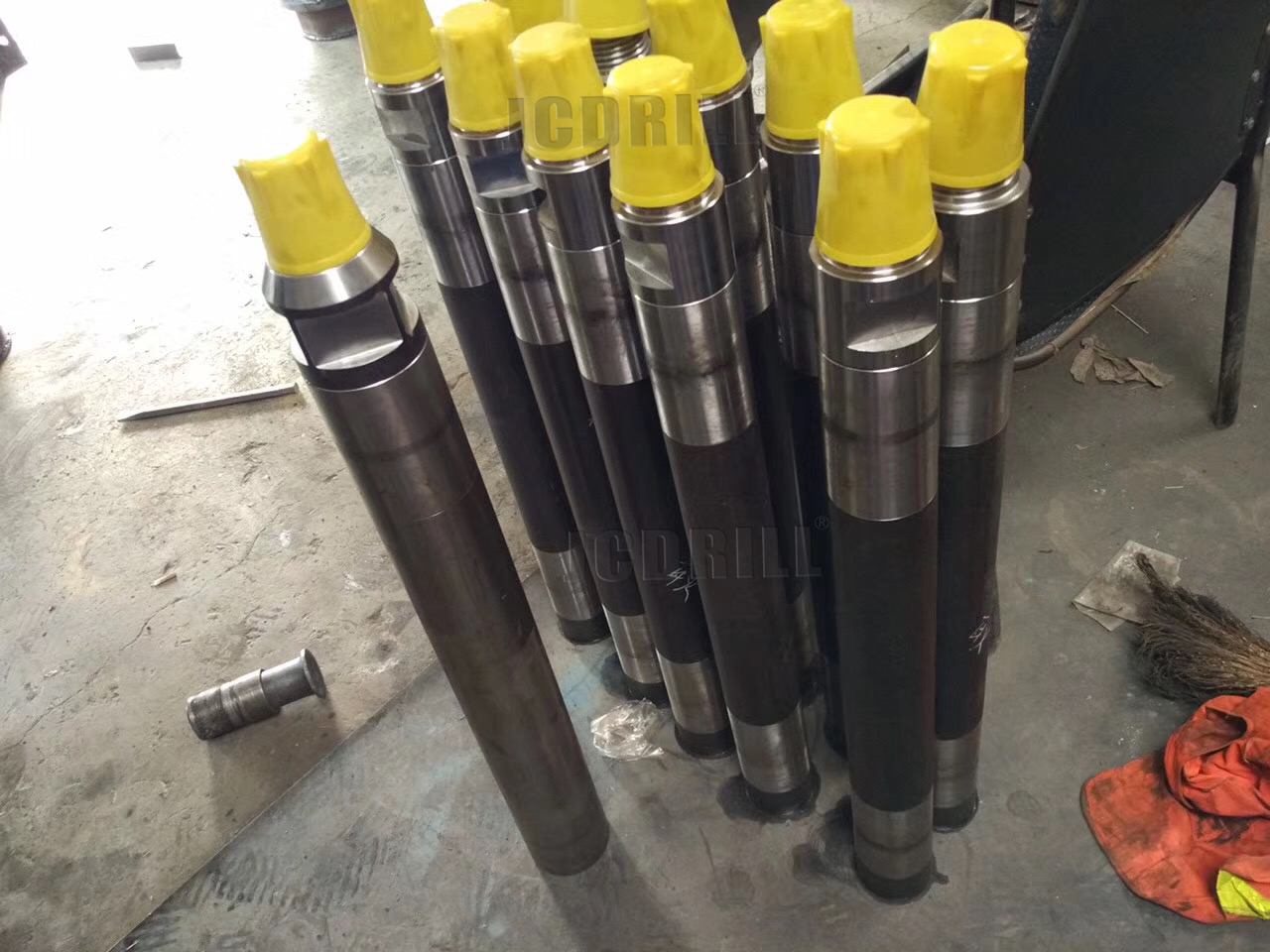

The DTH hammer is a component of the DTH drilling tools and belongs to the working device of the DTH drilling tools. DTH hammer is divided into low air pressure DTH hammer, medium air pressure DTH hammer and high air pressure DTH hammer，which are used for blast hole drilling and water well drilling project.
1. Have a sound automatic production line, to ensure the accuracy of product processing.
2. There is a special quality inspection organization, to ensure that the factory products do not defective products.
3. Experienced, can provide the most suitable solution for different scenarios.
4. Dedicated R & Dd institutions to ensure continuous updating and improvement of products.
5. Perfect sales network, widely recognized by users.
| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Low Air Pressure DTH Hammer | ||||||
| DTH hammer type: | CIR76 | CIR90 | CIR110 | CIR130 | CIR150 | CIR170 |
| Bit Shank: | CIR76 | CIR90 | CIR110 | CIR110/CIR130 | CIR150 | All can be designed according to your requests! |
| Top Sub Thread: | F48x10PIN | F48x10PIN | API 23/8" RGE BOX | API 23/8" RGE BOX | F70x10PIN | |
| Bit Diameter: | 76(mm) | 90-120(mm) | 110-150(mm) | 130-175(mm) | 150-200(mm) | |
| Working Pressure: | 4-10(bar) | 5-10(bar) | 5-10(bar) | 5-10(bar) | 5-10(bar) | |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
