| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |

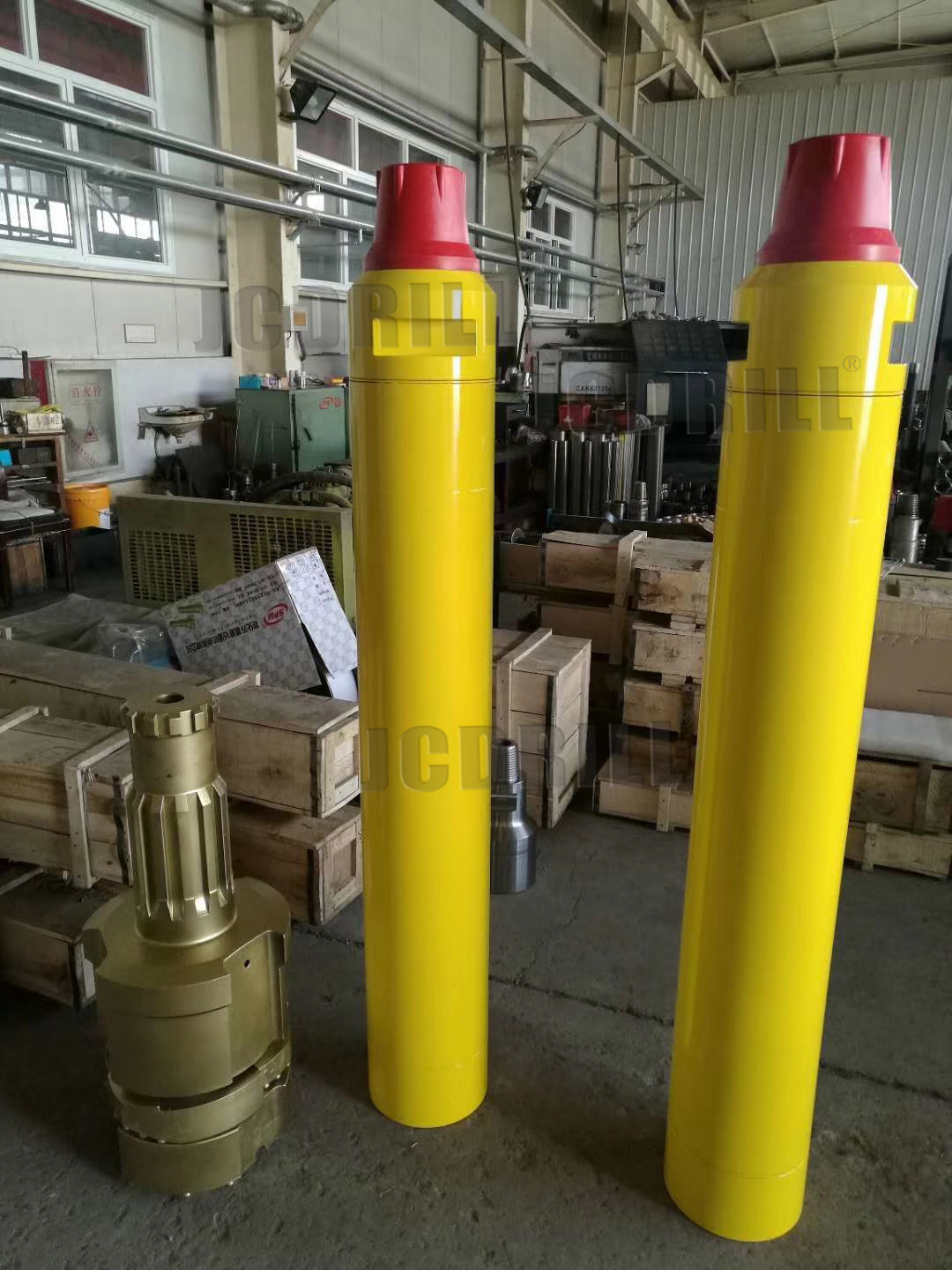

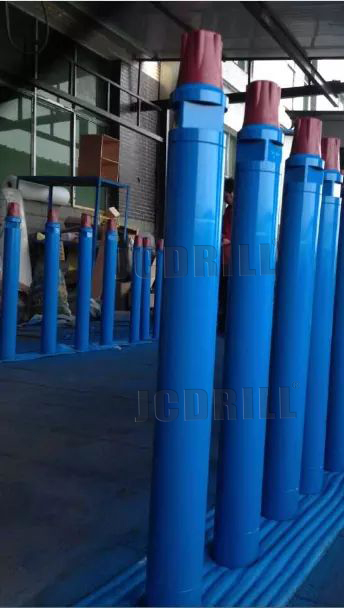

Introduction
Low Air Pressure DTH hammers:
CIR series Low air pressure DTH hammer includes: CIR55, CIR65, CIR70, CIR80, CIR 90, CIR110, CIR110W, CIR150, CIR170, CIR200W etc.
1.Longer life
2. Lower air consumption and 15% higher penetration speed compared the conventional DTH hammer in the market.
3.Be compatible with different DTH bits .
All our products are widely used in open pit mining, tunneling, quarrying, transportation construction, engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc. We are one of the companies which have the most complete product lines, the most abundant species and the most widely used products in drilling industry.
| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Low Air Pressure DTH Hammer | ||||||
| DTH hammer type: | CIR76 | CIR90 | CIR110 | CIR130 | CIR150 | CIR170 |
| Bit Shank: | CIR76 | CIR90 | CIR110 | CIR110/CIR130 | CIR150 | All can be designed according to your requests! |
| Top Sub Thread: | F48x10PIN | F48x10PIN | API 23/8" RGE BOX | API 23/8" RGE BOX | F70x10PIN | |
| Bit Diameter: | 76(mm) | 90-120(mm) | 110-150(mm) | 130-175(mm) | 150-200(mm) | |
| Working Pressure: | 4-10(bar) | 5-10(bar) | 5-10(bar) | 5-10(bar) | 5-10(bar) | |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
