| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Rotary Drilling Rig | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Beijing, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer |
| Material | Carbide | Machine Type | Drilling Tool |
Introduction

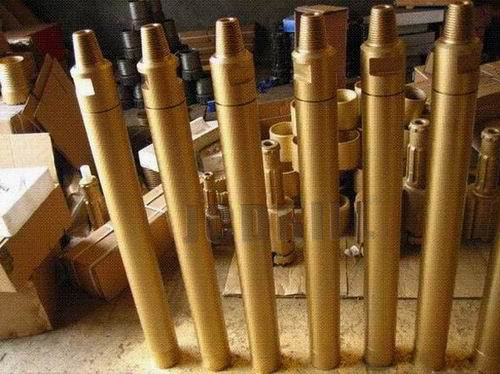

This Middle-Low high air pressure DTH hammer work with footvalve is designed and developed by our own, which has BR1 BR2 BR3 models
DTH Hammers are faster, more service friendly and longer lasting, compared with most drilling products in the market.
The optimal performance of JCDRILL DTH Hammers includes:
1. High productivity
2. Longer service life
3. Low energy consumption
| DTH Hammer | ||
| Type | Model | Outer Diameter |
| High pressure DTH Hammer | ||
| 3 inch | JD25A | 71mm |
| 3.5 inch | JD35A/M30 | 82mm |
| 4 inch | JD45A/QL40A/M40/SD4 | 99mm |
| 5 inch | JD55A/QL50A/M50/SD5 | 125mm |
| 6 inch | JD65A/QL60A/M60/SD6 | 142mm |
| 8 inch | JD85A/QL80A/M80/SD8 | 180mm |
| 10 inch | HD100A/SD10 | 225mm |
| 12 inch | JD125A/SD12 | 275mm |
| 14 inch | JD140A | - |
| Middel Pressure DTH Hammer | ||
| 2.5 inch | BR1 | 56mm |
| 3 inch | BR2 | 64mm |
| 3.5 inch | BR3 | 82mm |
| Lower Pressure DTH Hammer | ||
| 3 inch | CIR65 | 68mm |
| 3.5 inch | CIR70 | 76mm |
| 4 inch | CIR90 | 99mm |
| 5 inch | CIR110 | 110mm |
| 6 inch | CIR150 | 150mm |
| 8 inch | CIR170 | 170mm |
| Back Hammer | ||
| 6 inch | BH140 | 155mm |
| 8 inch | BH170 | 190mm |
| 10 inch | BH190 | 220mm |
| 12 inch | BH240 | 190mm |
| Type | Model | Length | Weight | External Dia.(mm) | Hole Range |
| (mm) | (kg) | (mm) | |||
| 3.5 inch | DHD3.5 | 930 | 25 | 82 | 90-110 |
| 4 inch | DHD340 | 1030 | 39 | 99 | 110-135 |
| SD4 | 1084 | 40.5 | 99 | ||
| QL40 | 1097 | 41 | 99 | ||
| Mission40 | 1005 | 40 | 99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | 125 | 135-155 |
| SD5 | 1175 | 72.5 | 125 | ||
| QL50 | 1147 | 73 | 125 | ||
| Mission50 | 1110 | 68.5 | 125 | ||
| 6 inch | DHD360 | 1248 | 100 | 142 | 155-190 |
| SD6 | 1261 | 100 | 142 | ||
| QL60 | 1212 | 95 | 146 | ||
| Mission60 | 1161 | 90 | 146 | ||
| 8 inch | D85 | 1492 | 188 | 180 | 195-254 |
| SD8 | 1463 | 192 | 180 | ||
| QL80 | 1465 | 182 | 180 | ||
| Mission80 | 1338 | 176 | 180 | ||
| 10 inch | SD10 | 1502 | 290 | 226 | 254-311 |
| NUMA100 | 1510 | 288 | 226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa 125 | |||||
| 14 inch | JD140A | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
