| Condition | New | Material | Carbon steel |
| Applicable Industries | Construction works , Energy & Mining | Processing Type | Forging |
| Video outgoing-inspection | Provided | Use | Ore Mining |
| Machinery Test Report | Provided | Product name | R25 - Hex25 - R25 drifter drill rod |
| Marketing Type | Hot Product 2022 | Application | tunneling, mining |
| Brand Name | JCDRILL | Usage | top hammer drilling |
| Type | drill rod | Name | tunneling drill rod |
| Machine Type | Drilling Equipment | Word | mining drill rod |
Description

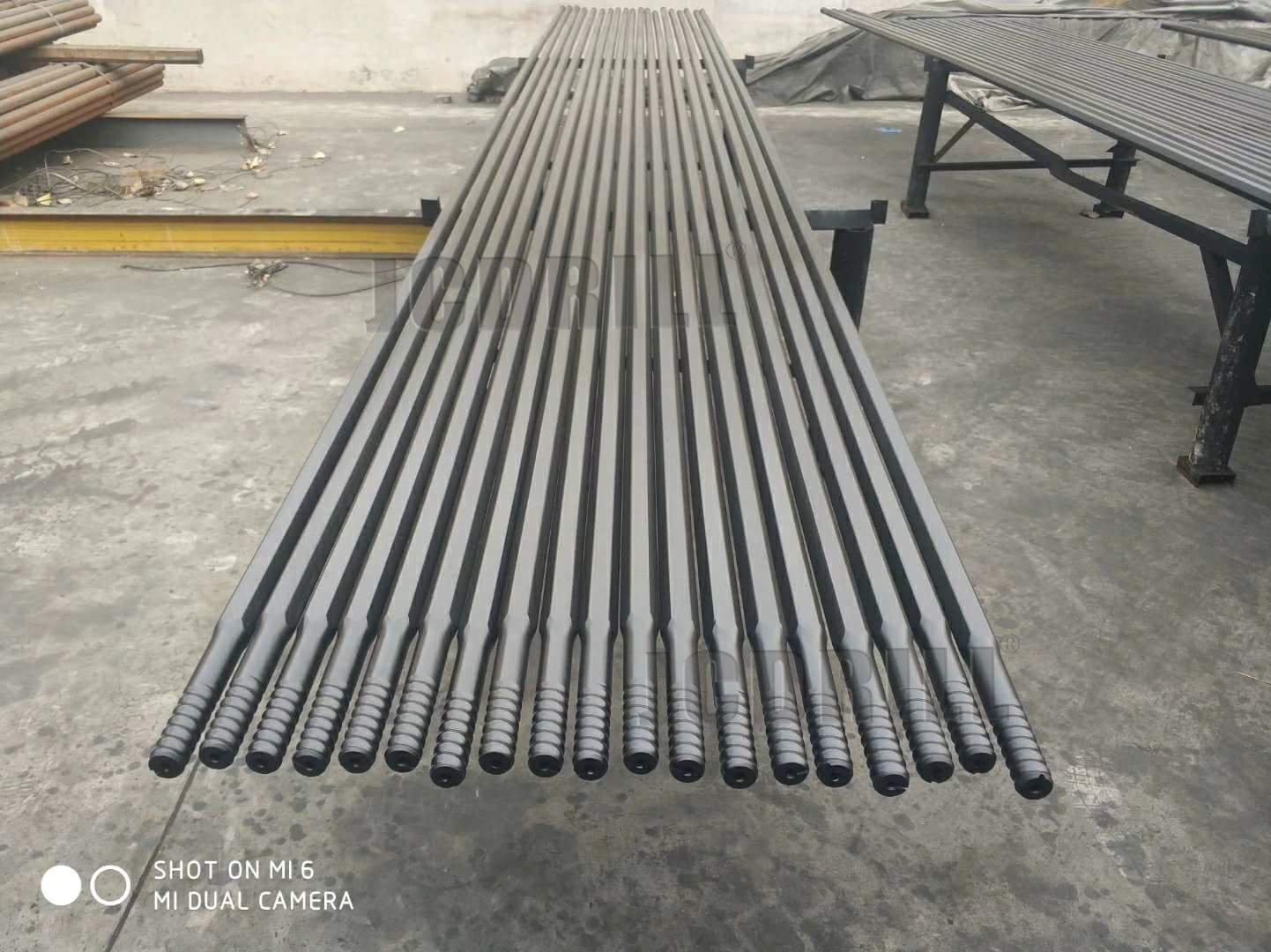

Drill tube using ST58 thread system.
• ST58 thread system
• Widely used in drifting, tunneling, benching, and long hole drilling
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type:ST58 Drill Tube Flushing Hole 26 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
| ST58 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 89 | 3 1/2 | 6x12 | 8x12 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 6x13 | 8x13 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 4.1 | ||
| 89 | 3 1/2 | 4x12,1x12 | 8x12 | 35° | 4 | 4.1 | ||
| 89 | 3 3/4 | 4x13,1x13 | 8x14 | 35° | 4 | 4.6 | ||
| 102 | 4 | 6x14 | 8x14 | 35° | 2 | 6 | ||
| 102 | 4 | 6x13 | 8x16 | 35° | 2 | 1 | 6 | |
| 115 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 7 | ||
| Parabolic Buttons | ||||||||
| 89 | 3 1/2 | 6x12 | 8x12 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 6x13 | 8x13 | 35° | 2 | 1 | 4.1 | |
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 4.1 | ||
| 89 | 3 1/2 | 4x12,1x12 | 8x12 | 35° | 4 | 4.1 | ||
| 89 | 3 3/4 | 4x13,1x13 | 8x14 | 35° | 4 | 4.6 | ||
| 102 | 4 | 6x14 | 8x14 | 35° | 2 | 6 | ||
| 102 | 4 | 6x13 | 8x16 | 35° | 2 | 1 | 6 | |
| 115 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 7 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
1525 | 5' | 76 | 2 3/8 | 34 | |||
| 1830 | 6' | 76 | 2 3/8 | 40 | ||||
| 3660 | 12' | 76 | 2 3/8 | 76.3 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
