7 7/8 Inch With 6 Blades Water Well Steel Body Pdc Drill Bit For Well Drilling

7 7/8 Inch With 6 Blades Water Well Steel Body Pdc Drill Bit For Well Drilling Featured Image
  • 7 7/8 Inch With 6 Blades Water Well Steel Body Pdc Drill Bit For Well Drilling
  • 7 7/8 Inch With 6 Blades Water Well Steel Body Pdc Drill Bit For Well Drilling
  • 7 7/8 Inch With 6 Blades Water Well Steel Body Pdc Drill Bit For Well Drilling

Short Description:

Size of Rock Bit 7 7/8 INCH
200 MM
 IADC Code S323
Thread Connection 4 1/2″ API Reg pin
WOB (Weight On Bit) 25~120 KN
RPM 60~350
Formation Suitable for soft to medium hard formation
Net Weight 38KG
Flow Rate L/S 25~38

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    PDC bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for seismic prospecting,construction engineering.now there are 2 types: Matrix and Steel Body.

    PDC drill bit is super hard material combined with diamond and hard alloy under high temperature. It not only has the advantages of hard and durable from diamond, but also has the advantages of high impact resistance and big blade from hard alloy. It greatly improves the drilling efficiency and is the ideal drill bit for the drill operation of medium & hard as well as super hard rock.

    Cutting structure is force balanced and bit blade is asymmetrically designed so that  the load on bit is balanced that resulting better stability of the bit

    Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.

    Cutter exposure is optimized to insure the oil bit can achieve higher ROP is soft to medium formations

    Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers

    Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance  cleaning and cooling effects of the bit to effectively prevent bit from balling

    PDC TRICONE BITS

    Matrix body PDC Drill Bits:

    Product: Matrix body PDC drill bits

    Wings: 3 wings, 4 wings, 5 wings, 6 wings

    Condition: Brand new matrix body PDC drill bit

    Drilling formation: Soft to hard rock formation

    Application: Water well, oil well, ore well drilling

    Connection: API reg pin/ box thread

    Color: Blue, Golden, Silvery

    JCDRILL PDC BITS

    Matrix body PDC Drill Bits Specifications:

    Size

    (Inch)

    Size

    (mm)

    Std. API thread

    Approximate weight

     (kgs)

    2-3/8

    60

    Non-std.

    1.3

    2-1/2

    63.5

    Non-std.

    1.5

    3

    76

    Non-std.

    2

    3-1/2

    89

    Non-std.

    3.5

    3-7/8

    98.4

    2-3/8"

    5

    4

    102

    2-3/8"

    5.5

    4-1/4

    108

    2-3/8"

    6.5

    4-5/8

    117.5

    2-7/8"

    8

    5-1/4

    133

    2-7/8"

    11

    5-5/8

    142.9

    3-1/2"

    13

    5-7/8

    149.2

    3-1/2"

    14

    6

    152

    3-1/2"

    17

    6-1/8

    155.6

    3-1/2"

    18

    6-1/4

    159.3

    3-1/2"

    20

    6-1/2

    165

    3-1/2"

    22

    7-1/2

    190.5

    4-1/2"

    31

    7-5/8

    193.7

    4-1/2"

    32

    7-7/8

    200

    4-1/2"

    35

    8-1/2

    215.9

    4-1/2"

    42

    8-5/8

    219

    4-1/2"

    44

    8-3/4

    222.3

    4-1/2"

    45

    9-1/2

    241.3

    6-5/8"

    60

    9-5/8

    244.5

    6-5/8"

    65

    9-3/4

    247.7

    6-5/8"

    70

    9-7/8

    250.8

    6-5/8"

    75

    10-5/8

    270

    6-5/8"

    82

    11-5/8

    295

    6-5/8"

    90

    12-1/4

    311.2

    6-5/8"

    98

    13-5/8

    346.1

    6-5/8"

    134

    15-1/2

    394

    6-5/8"

    190

    16

    406.4

    6-5/8"

    200

    17-1/2

    444.5

    7-5/8"

    251

    20

    508

    7-5/8"

    300

    24

    610

    7-5/8"

    600

    26

    660.4

    7-5/8"

    700

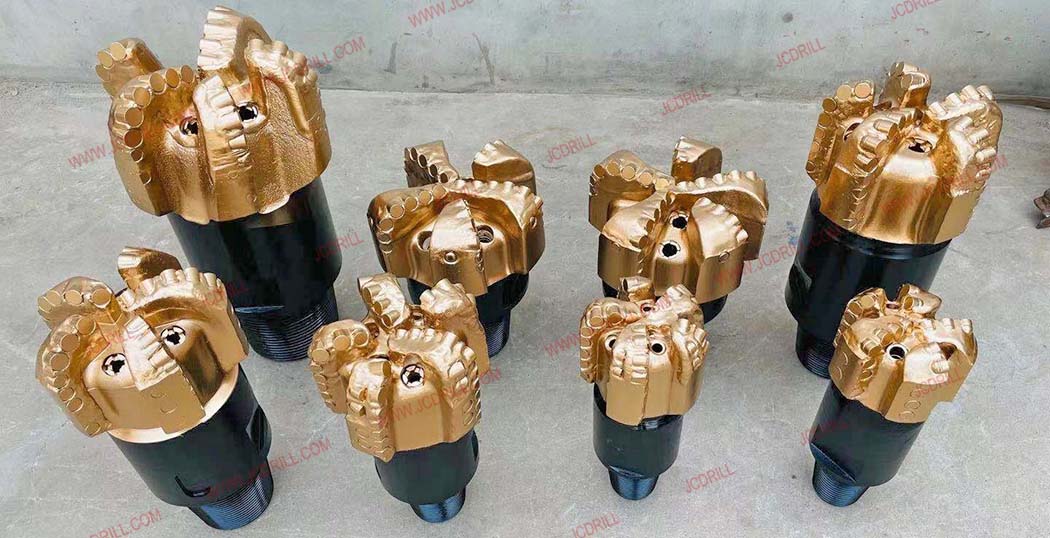

    PDC DRILL BITS IN 7.5INCH



    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
