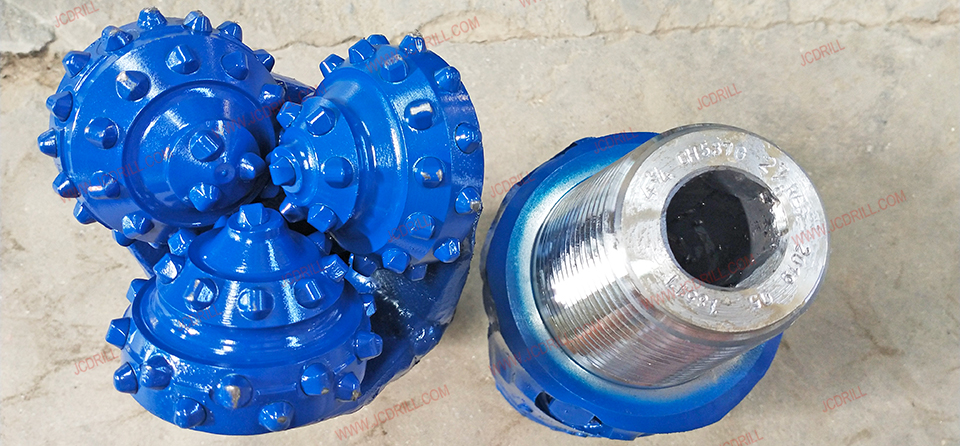

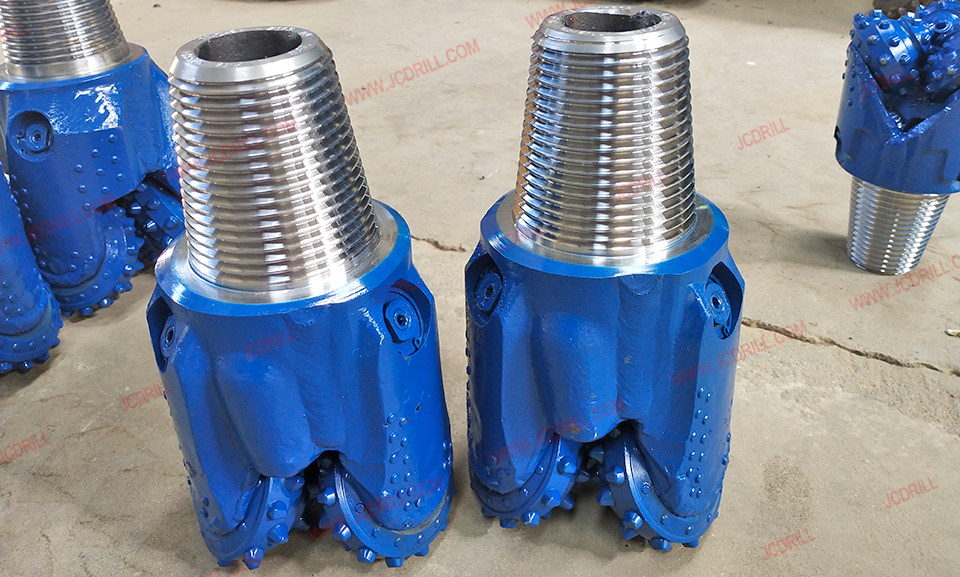

Tricone Bit Introduction
Tricone bit is one of the main tools for blast hole and water well drilling. Its life span and performance whether suitable for drilling or not, that has an great influence about the quality, speed and cost of drilling project.
The rock breakage by the tricone bit which used in mine is working with both the impact of teeth and the shear caused by slippage of the teeth, which bring high rock breaking efficiency and the low operation cost.
The tricone bits developed and manufactured by JCDRILL are mainly used for large-scale open-pit mining, such as open-pit coal mines, iron mines, copper mines and molybdenum mines, also the non-metallic mines,water well drilling. With the increasing in variety of type, it's also widely used in quarrying, foundation clearing, hydrogeological drilling, coring, tunneling in railway transportation department and shaft drilling in underground mines.
Guidance of Tricone Bit Choice
| IADC | WOB(KN/mm) | RPM(r/min) | APPLICABLE FORMATIONS |
| 114/116/117 | 0.3~0.75 | 180~60 | Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc. |
| 124/126/127 | 0.3~0.85 | 180~60 | Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc. |
| 134/135/136/137 | 0.3~0.95 | 150~60 | Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
| 214/215/216/217 | 0.35~0.95 | 150~60 | Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc. |
| 227 | 0.35~0.95 | 150~50 | Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc |
| Note: The upper limits of WOB and RPM in above table should not be used simultaneously. | |||
Guidance of tricone Bits ChoiceTricone Bits Tooth Type
Bits Size
| Bit Size | API REG PIN | Torque | Weight | |
| Inch | mm | Inch | KN.M | Kgs |
| 3 3/8 | 85.7 | 2 3/8 | 4.1-4.7 | 4.0-6.0 |
| 3 1/2 | 88.9 | 4.2-6.2 | ||
| 3 7/8 | 98.4 | 4.8-6.8 | ||
| 4 1/4 | 108 | 5.0-7.5 | ||
| 4 1/2 | 114.3 | 5.4-8.0 | ||
| 4 5/8 | 117.5 | 2 7/8 | 6.1-7.5 | 7.5-8.0 |
| 4 3/4 | 120.7 | 7.5-8.0 | ||
| 5 1/8 | 130.2 | 3 1/2 | 9.5-12.2 | 10.3-11.5 |
| 5 1/4 | 133.4 | 10.7-12.0 | ||
| 5 5/8 | 142.9 | 12.6-13.5 | ||
| 5 7/8 | 149.2 | 13.2-13.5 | ||
| 6 | 152.4 | 13.6-14.5 | ||
| 6 1/8 | 155.6 | 14.0-15.0 | ||
| 6 1/4 | 158.8 | 14.4-18.0 | ||
| 6 1/2 | 165.1 | 14.5-20.0 | ||
| 6 3/4 | 171.5 | 20.0-22.0 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3-21.7 | 28.0-32.0 |
| 7 5/8 | 193.7 | 32.3-34.0 | ||
| 7 7/8 | 200 | 33.2-35.0 | ||
| 8 3/8 | 212.7 | 38.5-41.5 | ||
| 8 1/2 | 215.9 | 39.0-42.0 | ||
| 8 5/8 | 219.1 | 40.5-42.5 | ||
| 8 3/4 | 222.3 | 40.8-43.0 | ||
| 9 1/2 | 241.3 | 6 5/8 | 38-43.4 | 61.5-64.0 |
| 9 5/8 | 244.5 | 61.8-65.0 | ||
| 9 7/8 | 250.8 | 62.0-67.0 | ||
| 10 | 254 | 68.0-75.0 | ||
| 10 1/2 | 266.7 | 72.0-80.0 | ||
| 10 5/8 | 269.9 | 72.0-80.0 | ||
| 11 1/2 | 292.1 | 79.0-90.0 | ||
| 11 5/8 | 295.3 | 79.0-90.0 | ||
| 12 1/4 | 311.2 | 95.0-102. | ||
| 12 3/8 | 314.3 | 95.0-102.2 | ||
| 12 1/2 | 317.5 | 96.0-103.0 | ||
| 13 1/2 | 342.9 | 105.0-134.0 | ||
| 13 5/8 | 346.1 | 108.0-137.0 | ||
| 14 3/4 | 374.7 | 7 5/8 | 46.1-54.2 | 140.0-160.0 |
| 15 | 381 | 145.0-165.0 | ||
| 15 1/2 | 393.7 | 160.0-180.0 | ||
| 16 | 406.4 | 200.0-220.0 | ||
| 17 1/2 | 444.5 | 260.0-280.0 | ||
| 26 | 660.4 | 725.0-780.0 | ||
