6 Inch Pdc Drilling Bit With 4 Blades For Oil Water Drilling

6 Inch Pdc Drilling Bit With 4 Blades For Oil Water Drilling Featured Image
  • 6 Inch Pdc Drilling Bit With 4 Blades For Oil Water Drilling
  • 6 Inch Pdc Drilling Bit With 4 Blades For Oil Water Drilling
  • 6 Inch Pdc Drilling Bit With 4 Blades For Oil Water Drilling

Short Description:

Size of Rock Bit 152mm
6inch
Blade 5
IADC M232
Thread Connection 3 1/2 API
WOB 25~120 KN
RPM 60-350
Formation Suitable for soft to medium hard formation
Net weight 28kg
Gross weight 30kg
Flow Rate L/S 25-38

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    Introduction

    Polycrystalline diamond compact (PDC) bits
    Polycrystalline diamond compact (PDC) bits are the workhorses of the oil field. Features such as cutter types, cutter layout, and blade geometry are continuously being evaluated and improved to deliver value and drive down drilling costs. Certification with the IDEAS integrated dynamic design and analysis platform ensures these bits offer optimal performance.

    Additionally, the IDEAS platform and field experience show that a single dynamically stable bit design can provide exceptional
    performance with a variety of drilling systems, especially in directional drilling.

    The earlier perception was that each type of rotary steerable system (RSS) or steerable motor BHA required its own bit design with highly specialized directional features. Bits with IDEAS platform certification are stable and produce less torque and stick/slip in transitional drilling. The risk of time-consuming and costly trips due to shock and vibration is greatly reduced.

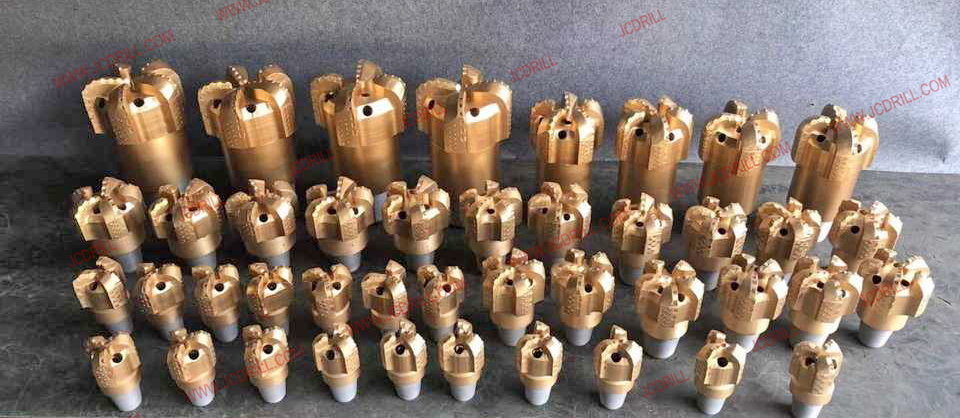

    6INCH-PDC-BITS-JCDRILL-BITS

    Characteristics

    Cutting Structure
    The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.The durability of premium tungsten carbide inserts is improved with newformulas and new techniques for insert bit.
    Gauge Structure
    Multiple gauge protection with gauge trimmers on the hell andgauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gague holding capability and bearing life.
    Bearing Structure
    High precision roller bearing with two thrust faces,Ballk lock the cone,.The leg bearing can get larer by arraning the roller in groove of the cone hole,so it can receive more Wob,and suitable for high RPM.Thrust faces hardfaced with wear resistant alloy,Abrasion resistance and seizure resisitance of the bearing are inproved.
    Sealand Lubrication
    Premium HNBR O-ring,optimal seal compression and curved seal structure can enhance seal performance. The pressure compensator system and adwanced grease can greatly increase the lubricating reliability.

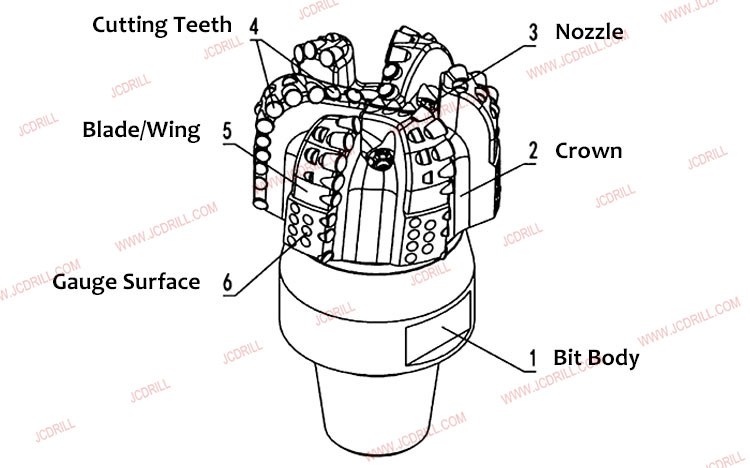

    6INCH PDC BITS JCDRILL

    Formation IADC Rock Formation Appropriate PDC bit type
    very soft S123 Clay / Mudstone / Marlite 1944S 1952
    soft S223 / S233 Marlite / Saline rock / Shale 1942D / 152GS / 1952AGS / 1952A / 1652
    Medium soft S323/S324/S334 Shale / Sandstone / Chalk 1952GRS/ 1952AGRS/ 1963AGS/ 1652S/ 1653S/ 1363AGRS/ 1362GR/ 1652DGS

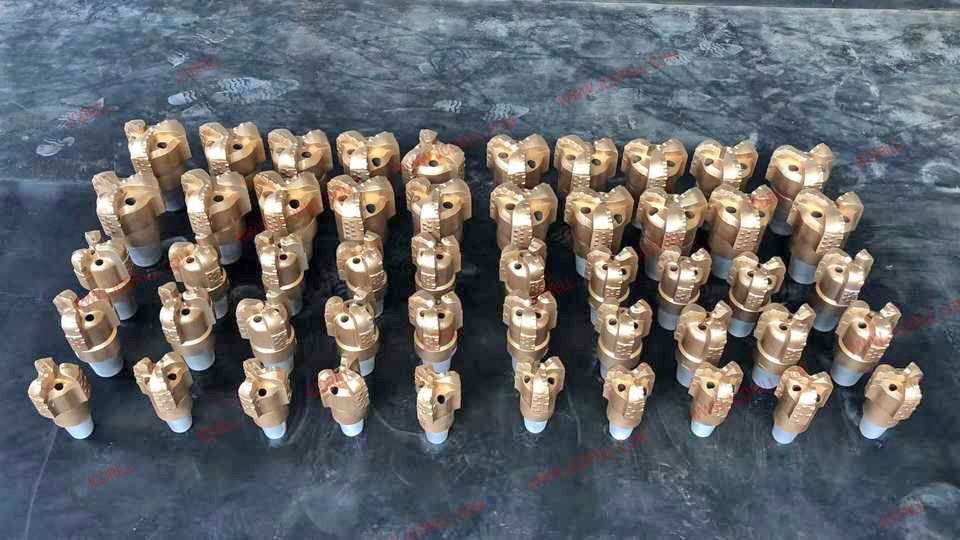

    PDC-BITS-FOR-152MM

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
