| Applicable Industries: | Construction works, Energy & Mining | Machine Type: | Drilling Equipment |
| Video outgoing-inspection: | Provided | Material: | High Manganese Steel, Carbon Steel |
| Machinery Test Report: | Provided | Processing Type: | Casting |
| Marketing Type: | Hot Product 2022 | Use: | Metal drilling, Mining |
| Place of Origin: | Beijing, China | Local Service Location: | None |
| Brand Name: | JCDRILL | Certification: | ISO, API |
| Type: | Water Swivel |
Introduction

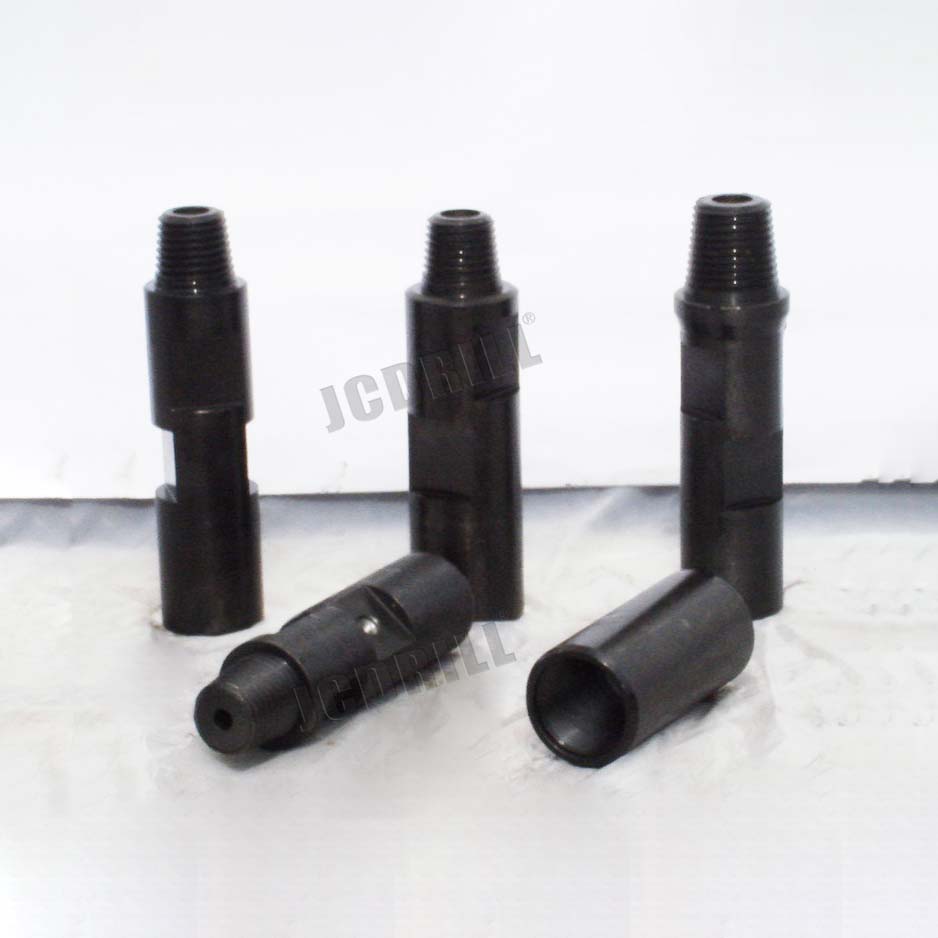

Drill rod adapter is the portion of drill pipe, which includes pin adapter and box adapter, connected the two sides of the teo sides of the casing tube.
Drill Pipe adapter/ adapter coupling/ thread male adapter couplingProduct Description:1.OD:89mm-240mm2.Material:35CrMo/40Cr/4137H3.Length: N:235mm M:195mm4.Apply to connection drill pipe, drill collar, heavy weight drill pipe5.Tool Joint: NC26, NC31, NC38, NC40, NC46, NC50 2 3/8"REG, 2 7/8"REG, 3 1/2"REG, 4 1/2"REG, 6 5/8"REG, 7 5/8"REG
• Underground mining
• Quarry benching operations
• Water well drilling
| BOX TO PIN | |||||||
| API Threads | Length | Weight | Wrench Flats | Diameter(mm) | Parts No. | ||
| BOX | BOX | (mm) | A | B | |||
| 2 3/8"REG | 2 3/8"REG | 140 | 4 | 65 | 77 | 77 | BP11-14065-7777 |
| 2 3/8"REG | 2 3/8"REG | 140 | 5.5 | 65 | 90 | 90 | BP11-14065-9090 |
| 2 3/8"REG | 2 3/8"IF | 144 | 5.5 | 65 | 90 | 90 | BP12-14465-9090 |
| 2 3/8"REG | 2 7/8"REG | 130 | 8 | 65 | 95 | 95 | BP13-13065-9595 |
| 2 3/8"REG | 3 1/2"REG | 120 | 10.5 | 95 | 90 | 102 | BP15-12095-9002 |
| 2 3/8"IF | 2 3/8"REG | 164 | 6.8 | 65 | 90 | 90 | BP21-16465-9090 |
| 2 7/8"REG | 2 3/8"REG | 154 | 6.5 | 65 | 90 | 90 | BP31-15465-9090 |
| 2 7/8"REG | 3 1/2"REG | 120 | 11 | 95 | 90 | 115 | BP35-12095-9015 |
| 3 1/2"REG | 2 3/8"REG | 219 | 12.5 | 95 | 115 | 90 | BP51-21995-1590 |
| 3 1/2"REG | 2 3/8"IF | 160 | 10.5 | 95 | 115 | 115 | BP52-16095-1515 |
| 3 1/2"REG | 2 7/8"REG | 160 | 10.8 | 95 | 115 | 115 | BP53-16095-1515 |
| 3 1/2"REG | 2 7/8"IF | 160 | 10.8 | 95 | 115 | 115 | BP54-16095-1515 |
| 3 1/2"REG | 3 1/2"REG | 160 | 10.5 | 95 | 115 | 115 | BP55-16095-1515 |
| 4 1/2"REG | 3 1/2"REG | 235 | 10.5 | 95 | 146 | 115 | BP65-23595-4615 |
| 2 3/8" REG | 2"Z | 300 | 15 | 67 | 76 | 76 | BP110-30067-7676 |
| F48x10 | F42x10 | 203 | 4.6 | 40 | 59 | 59 | BP78-20395-5959 |
| F48x10 | F48x10 | 203 | 5 | 40 | 59 | 59 | BP77-20395-5959 |
| F48x10 | 2"REG | 203 | 5.2 | 40 | 59 | 59 | BP79-20395-5959 |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
