17 1/2 Inch Api Standard Tci Tricone Bit For Well Drilling

Short Description:

Applicable Industries: Construction works , Energy & Mining
Size: 17 1/2 inch  393.7mm
Thread type: 7 5/8″ PIN API REG
IADC 517/537/617/637
Weight (KG): 280
Brand Name: JCDRILL
Bearing type Rubber Sealed Bearing
Packing Fumigation-free Wooden Box
Formation Medium Hard Formation

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Detail

    Tricone bits introduction

    The tricone drill bit is the most popular drilling bit in the world,it can be widely used for Oil&Gas Drilling,Mining,Water Well,Geological Exploration areas.Our tricone bit divideds into metal sealed drill bit and rubber sealed bit.

    1. The C-Center jet can avoid the formation of a ball in the bit, eliminate the fluid area at the bottom of the well, accelerate the upward flow of drilling cuttings and improve ROP.

    2. High saturation NBR bearings can reduce sealing pressure and improve sealing reliability.

    3. The G-Gauge protection improves the measuring ability and prolongs the service life of the bit.

    4. Adding a row of teeth between the rear taper and the outflow to trim the borehole and protect the cone.

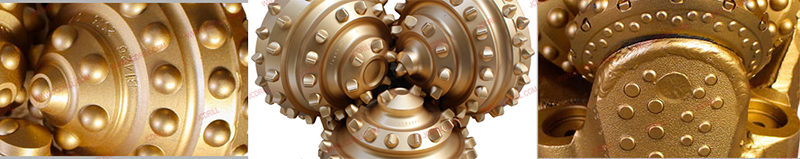

    TRICONE-BITS

    Tricone bits Structure

    tricone-bits-structure

    Guidance of Tricone Bit Choice

    IADC WOB(KN/mm) RPM(r/min) APPLICABLE FORMATIONS
    114/116/117 0.3~0.75 180~60 Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
    124/126/127 0.3~0.85 180~60 Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
    134/135/136/137 0.3~0.95 150~60 Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
    214/215/216/217 0.35~0.95 150~60 Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
    227 0.35~0.95 150~50 Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
    Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

    Guidance of tricone Bits ChoiceTricone Bits Tooth Type
    Excellent Material 3 7/8  Tricone Bit Roller Cone Well Drilling Bit Roller Cones Cutter Bit

    Bits Size

    Bit Size API REG PIN Torque Weight
    Inch mm Inch KN.M Kgs
    3 3/8 85.7 2 3/8 4.1-4.7 4.0-6.0
    3 1/2 88.9 4.2-6.2
    3 7/8 98.4 4.8-6.8
    4 1/4 108 5.0-7.5
    4 1/2 114.3 5.4-8.0
    4 5/8 117.5 2 7/8 6.1-7.5 7.5-8.0
    4 3/4 120.7 7.5-8.0
    5 1/8 130.2 3 1/2 9.5-12.2 10.3-11.5
    5 1/4 133.4 10.7-12.0
    5 5/8 142.9 12.6-13.5
    5 7/8 149.2 13.2-13.5
    6 152.4 13.6-14.5
    6 1/8 155.6 14.0-15.0
    6 1/4 158.8 14.4-18.0
    6 1/2 165.1 14.5-20.0
    6 3/4 171.5 20.0-22.0
    7 1/2 190.5 4 1/2 16.3-21.7 28.0-32.0
    7 5/8 193.7 32.3-34.0
    7 7/8 200 33.2-35.0
    8 3/8 212.7 38.5-41.5
    8 1/2 215.9 39.0-42.0
    8 5/8 219.1 40.5-42.5
    8 3/4 222.3 40.8-43.0
    9 1/2 241.3 6 5/8 38-43.4 61.5-64.0
    9 5/8 244.5 61.8-65.0
    9 7/8 250.8 62.0-67.0
    10 254 68.0-75.0
    10 1/2 266.7 72.0-80.0
    10 5/8 269.9 72.0-80.0
    11 1/2 292.1 79.0-90.0
    11 5/8 295.3 79.0-90.0
    12 1/4 311.2 95.0-102.
    12 3/8 314.3 95.0-102.2
    12 1/2 317.5 96.0-103.0
    13 1/2 342.9 105.0-134.0
    13 5/8 346.1 108.0-137.0
    14 3/4 374.7 7 5/8 46.1-54.2 140.0-160.0
    15 381 145.0-165.0
    15 1/2 393.7 160.0-180.0
    16 406.4 200.0-220.0
    17 1/2 444.5 260.0-280.0
    26 660.4 725.0-780.0

    Production Process

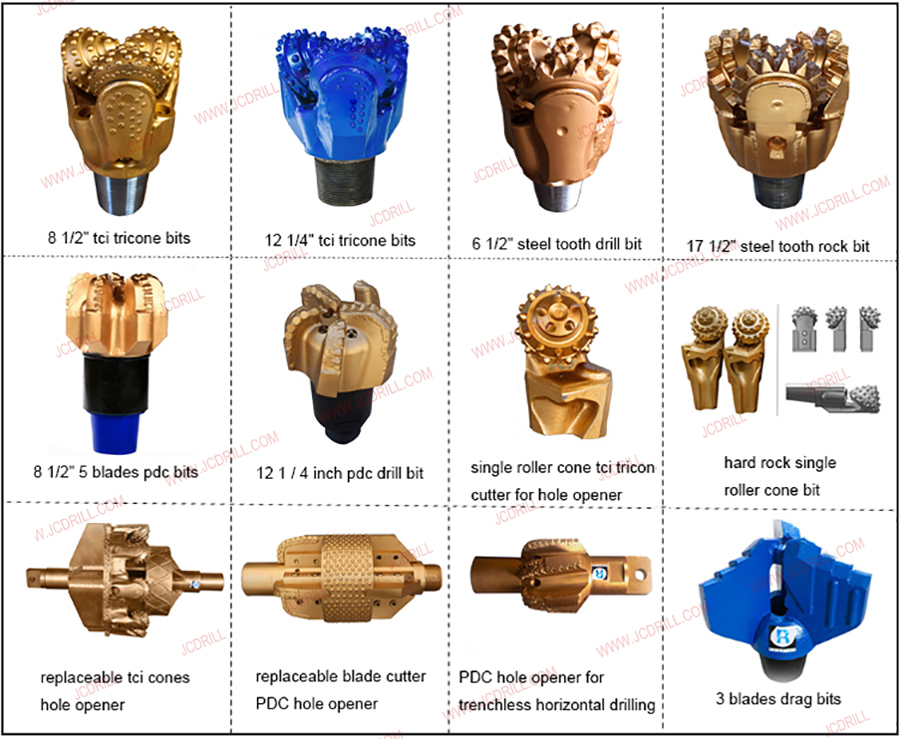

    hard-formation-tci-tricone-bit

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
