15 Inch With 5 Blades Steel Body Pdc Diamond Drill Bit

15 Inch With 5 Blades Steel Body Pdc Diamond Drill Bit Featured Image
  • 15 Inch With 5 Blades Steel Body Pdc Diamond Drill Bit
  • 15 Inch With 5 Blades Steel Body Pdc Diamond Drill Bit
  • 15 Inch With 5 Blades Steel Body Pdc Diamond Drill Bit

Short Description:

Size of Rock Bit 15 INCH
381 MM
 IADC Code S323
Thread Connection 7 5/8 API REG PIN
Nozzie quantity: 8R
WOB (Weight On Bit) 30-280 KN
RPM 80-600
Formation Suitable for soft to medium hard formation
Net Weight 100KG
Flow Rate L/S 25~38

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    Introduction

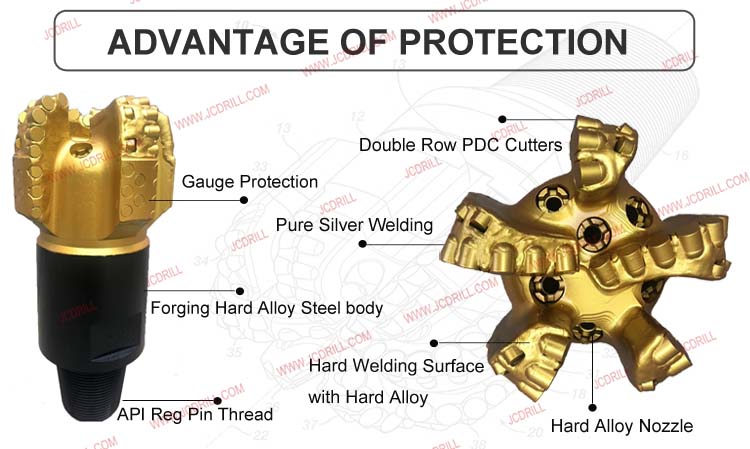

    8in pdc bits-1

    Polycrystalline diamond compact (PDC) bits
    Polycrystalline diamond compact (PDC) bits are the workhorses of the oil field. Features such as cutter types, cutter layout, and blade geometry are continuously being evaluated and improved to deliver value and drive down drilling costs. Certification with the IDEAS integrated dynamic design and analysis platform ensures these bits offer optimal performance.

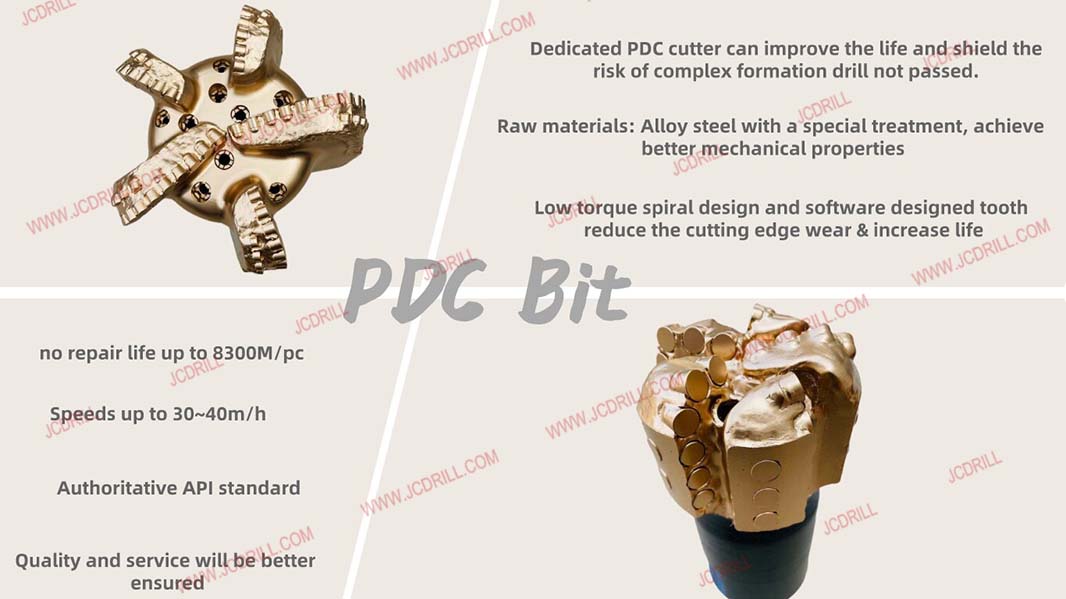

    JCDRILL PDC BITS

    Bit Type
    6”
    8-1/2”
    8-1/2”
    12-1/4”
    Bit Type
    17-1/2” GM1606T
    IADC Code
    M423
    M432
    M323
    M432 M332
    IADC Code
    M323
    M332
    Blade
    5
    6
    8
    6
    Blade
    6
    Cutter Size (mm)
    Φ13MM
    Φ16MM
    Φ13MM
    Φ16MM
    Cutter Size (mm)
    Φ16MM；Φ13MM
    Nozzle Qty/Type
    5
    13.2
    9.6
    30.78
    Cutter Qty
    Φ16×58；Φ13×81
    Nozzle Qty/Type
    3NZ
    6NZ
    4NZ
    6NZ
    Nozzle Qty/Type
    8NZ
    Gauge Length
    1.5”
    2.2”
    2”
    2.5”
    Gauge Length (mm)
    110
    Connection
    3-1/2” API REG
    4-1/2” API REG
    4-1/2” API REG
    6-5/8” API REG
    Connection
    7-5/8” API REG
    Make up Torque(KN.m)
    10.4~11.4
    24.1~26.5
    24.1~26.5
    51.7~56.9
    N.W./ G.W.(KG)
    338/388
    Rotary Speed(rpm）
    60-260
    60-260
    60-260
    60-260
    Nozzle Size (inch)
    10/32
    Weight on Bit(KN)
    8-50
    20-100
    20-100
    30-140
    Rotary Speed(Rpm)
    60-260
    Max.WOB(KN)
    90
    130
    130
    180
    Weight On Bit(KN)
    30-200
    Flow Rate（lps)
    10-30
    22-35
    22-35
    38-70
    Max.WOB (KN)
    240
    Flow Rate（lps)
    45-80
    Above are regular sizes for your reference. Size can be customized as per your requirement.

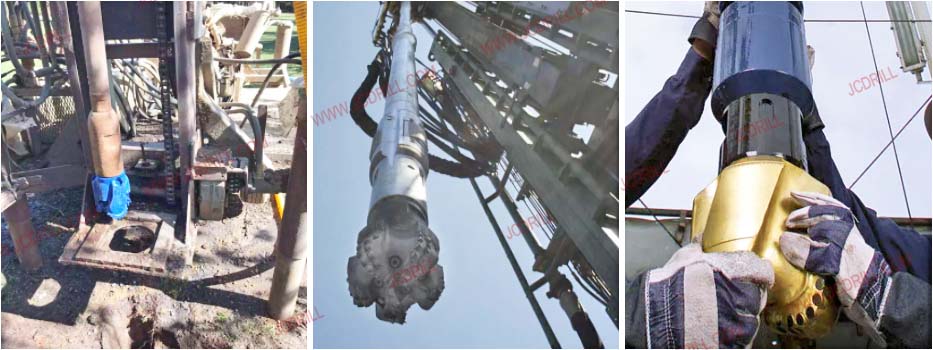

    PDC BITS APPLICATION

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
