15 3/4 Inch 5 Wings Steel Body Pdc Bit With Factory Price

15 3/4 Inch 5 Wings Steel Body Pdc Bit With Factory Price Featured Image
  • 15 3/4 Inch 5 Wings Steel Body Pdc Bit With Factory Price
  • 15 3/4 Inch 5 Wings Steel Body Pdc Bit With Factory Price
  • 15 3/4 Inch 5 Wings Steel Body Pdc Bit With Factory Price

Short Description:

Size of Rock Bit 15 3/4 INCH
400 MM
 IADC Code S323
Thread Connection 7 5/8 API REG PIN
Nozzie quantity: 8R
WOB (Weight On Bit) 30-280 KN
RPM 150-600
Net Weight 140KG
Flow Rate L/S 25~38
Formation Suitable for soft to medium hard rock formations,not available in broken,fractured,strong abrasive formations.

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

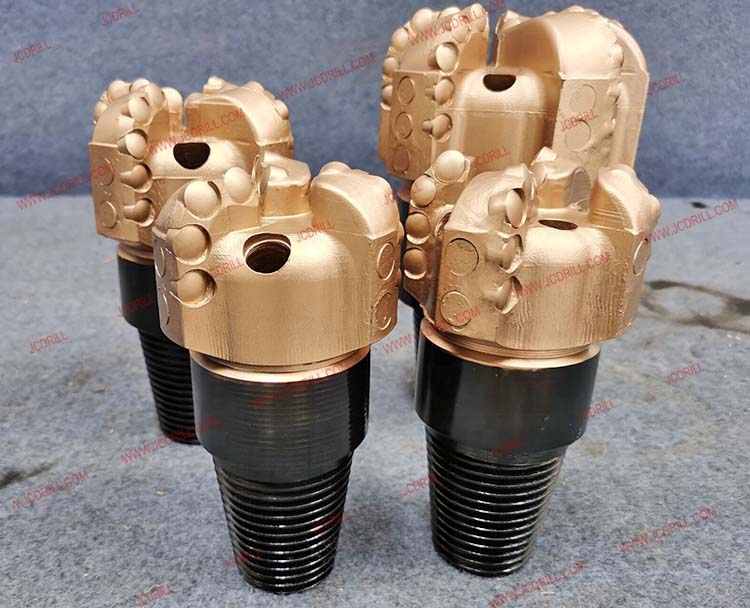

    JCDRILL BITS

    Polycrystalline diamond materials, for use in polycrystalline diamond compact (PDC) bits, are one of the most important material advances for oil drilling tools in recent years. Fixed-head bits rotate as one piece and contain no separately moving parts. When fixed-head bits use PDC cutters, they are commonly called PDC bits. The popularity of bits using PDC cutters has grown steadily,and they are nearly as common as roller-cone bits in many drilling applications.

    Matrix body PDC Drill Bits Specifications:

    Size

    (Inch)

    Size

    (mm)

    Std. API thread

    Approximate weight

     (kgs)

    2-3/8

    60

    Non-std.

    1.3

    2-1/2

    63.5

    Non-std.

    1.5

    3

    76

    Non-std.

    2

    3-1/2

    89

    Non-std.

    3.5

    3-7/8

    98.4

    2-3/8"

    5

    4

    102

    2-3/8"

    5.5

    4-1/4

    108

    2-3/8"

    6.5

    4-5/8

    117.5

    2-7/8"

    8

    5-1/4

    133

    2-7/8"

    11

    5-5/8

    142.9

    3-1/2"

    13

    5-7/8

    149.2

    3-1/2"

    14

    6

    152

    3-1/2"

    17

    6-1/8

    155.6

    3-1/2"

    18

    6-1/4

    159.3

    3-1/2"

    20

    6-1/2

    165

    3-1/2"

    22

    7-1/2

    190.5

    4-1/2"

    31

    7-5/8

    193.7

    4-1/2"

    32

    7-7/8

    200

    4-1/2"

    35

    8-1/2

    215.9

    4-1/2"

    42

    8-5/8

    219

    4-1/2"

    44

    8-3/4

    222.3

    4-1/2"

    45

    9-1/2

    241.3

    6-5/8"

    60

    9-5/8

    244.5

    6-5/8"

    65

    9-3/4

    247.7

    6-5/8"

    70

    9-7/8

    250.8

    6-5/8"

    75

    10-5/8

    270

    6-5/8"

    82

    11-5/8

    295

    6-5/8"

    90

    12-1/4

    311.2

    6-5/8"

    98

    13-5/8

    346.1

    6-5/8"

    134

    15-1/2

    394

    6-5/8"

    190

    16

    406.4

    6-5/8"

    200

    17-1/2

    444.5

    7-5/8"

    251

    20

    508

    7-5/8"

    300

    24

    610

    7-5/8"

    600

    26

    660.4

    7-5/8"

    700

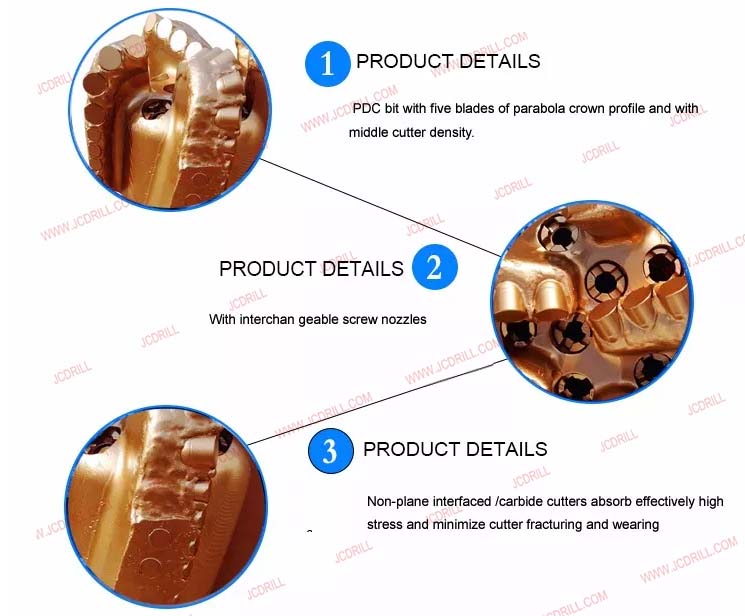

    JCDRILL PDC BITS FOR WELL DRILLING

    PDC BITS APPLICATION

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
