12 1/4 Inch With 5 Blades Steel Body Pdc Bit For Water And Oil Well Drilling

12 1/4 Inch With 5 Blades Steel Body Pdc Bit For Water And Oil Well Drilling Featured Image
  • 12 1/4 Inch With 5 Blades Steel Body Pdc Bit For Water And Oil Well Drilling
  • 12 1/4 Inch With 5 Blades Steel Body Pdc Bit For Water And Oil Well Drilling
  • 12 1/4 Inch With 5 Blades Steel Body Pdc Bit For Water And Oil Well Drilling

Short Description:

Size of Rock Bit 12 1/4 INCH
311 MM
 IADC Code S323
Thread Connection 6 5/8 API REG PIN
Nozzie quantity: 7R
WOB (Weight On Bit) 50-150 KN
RPM 80-800
Formation Suitable for soft to medium hard formation
Net Weight 85KG
WG kg 90kg
Flow Rate L/S 25~38

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    PDC Drill Bit

    High Rop

    Unique cutter arrangement and location can keep cutting dege sharp in the drilling to obtain the maximum ROP.

    Hard Formation Application

    Medium parabolic crown profile and heavy desity cutter layout provide the high ROP in high compressive strength and high abrasive formations.

    Multi-function Hydraulics

    Deep slot and straight blade design can get high ROP in medium hard to hard formation and can effectively cool the bit in hard and abrasive formations.
    Specification

    1. Bit Size: 4 1/2"-- 17 1/2''(114mm--444.5mm)
    2. Blades: 3--9 blades
    3. Nozzles: according to customers' requirement
    4. Cutters Size: 1313,1613,1616,1913,1916,1919
    5. OEM: OK, We can make kinds of PDC bits according to customers' requirements
    Material:  Carbide
    WOB(KN/mm) 0.35~0.90
    Rotary Speed 300~800 (rpm)
    Stock: we have enough stock for this type
    Delivery  time: 3-7 days after payment

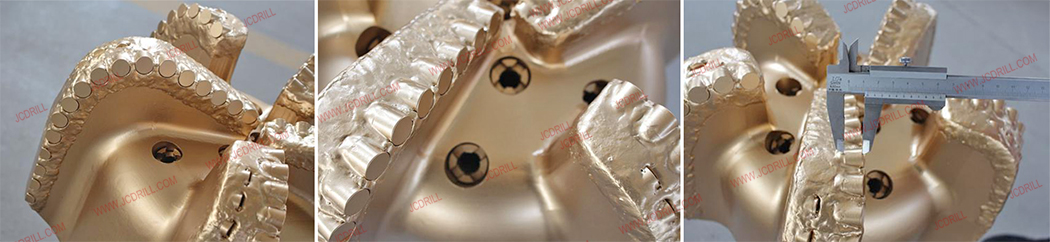

    PDC-Drill-bit

    Matrix body PDC Drill Bits:

    Product: Matrix body PDC drill bits

    Wings: 3 wings, 4 wings, 5 wings, 6 wings

    Condition: Brand new matrix body PDC drill bit

    Drilling formation: Soft to hard rock formation

    Application: Water well, oil well, ore well drilling

    Connection: API reg pin/ box thread

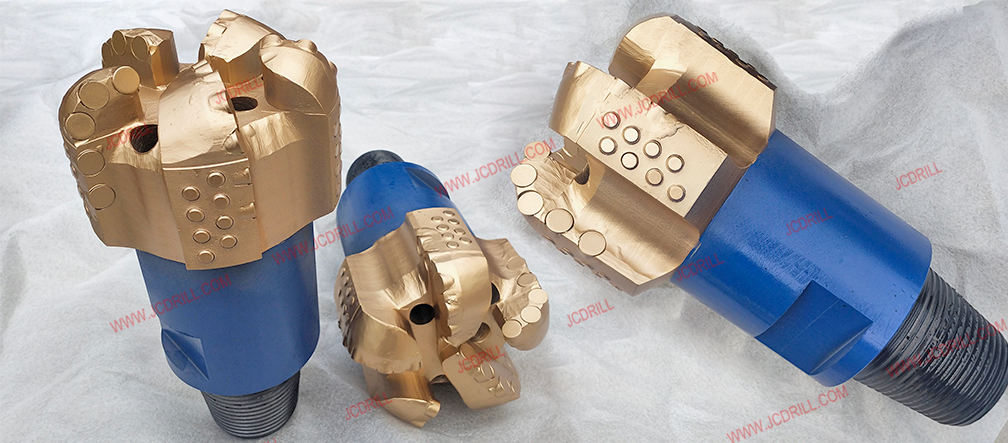

    165MM-PDC-BITS-FOR-WATER-WELL-DRILLING

    Matrix body PDC Drill Bits Specifications:

    Size

    (Inch)

    Size

    (mm)

    Std. API thread

    Approximate weight

     (kgs)

    2-3/8

    60

    Non-std.

    1.3

    2-1/2

    63.5

    Non-std.

    1.5

    3

    76

    Non-std.

    2

    3-1/2

    89

    Non-std.

    3.5

    3-7/8

    98.4

    2-3/8"

    5

    4

    102

    2-3/8"

    5.5

    4-1/4

    108

    2-3/8"

    6.5

    4-5/8

    117.5

    2-7/8"

    8

    5-1/4

    133

    2-7/8"

    11

    5-5/8

    142.9

    3-1/2"

    13

    5-7/8

    149.2

    3-1/2"

    14

    6

    152

    3-1/2"

    17

    6-1/8

    155.6

    3-1/2"

    18

    6-1/4

    159.3

    3-1/2"

    20

    6-1/2

    165

    3-1/2"

    22

    7-1/2

    190.5

    4-1/2"

    31

    7-5/8

    193.7

    4-1/2"

    32

    7-7/8

    200

    4-1/2"

    35

    8-1/2

    215.9

    4-1/2"

    42

    8-5/8

    219

    4-1/2"

    44

    8-3/4

    222.3

    4-1/2"

    45

    9-1/2

    241.3

    6-5/8"

    60

    9-5/8

    244.5

    6-5/8"

    65

    9-3/4

    247.7

    6-5/8"

    70

    9-7/8

    250.8

    6-5/8"

    75

    10-5/8

    270

    6-5/8"

    82

    11-5/8

    295

    6-5/8"

    90

    12-1/4

    311.2

    6-5/8"

    98

    13-5/8

    346.1

    6-5/8"

    134

    15-1/2

    394

    6-5/8"

    190

    16

    406.4

    6-5/8"

    200

    17-1/2

    444.5

    7-5/8"

    251

    20

    508

    7-5/8"

    300

    24

    610

    7-5/8"

    600

    26

    660.4

    7-5/8"

    700

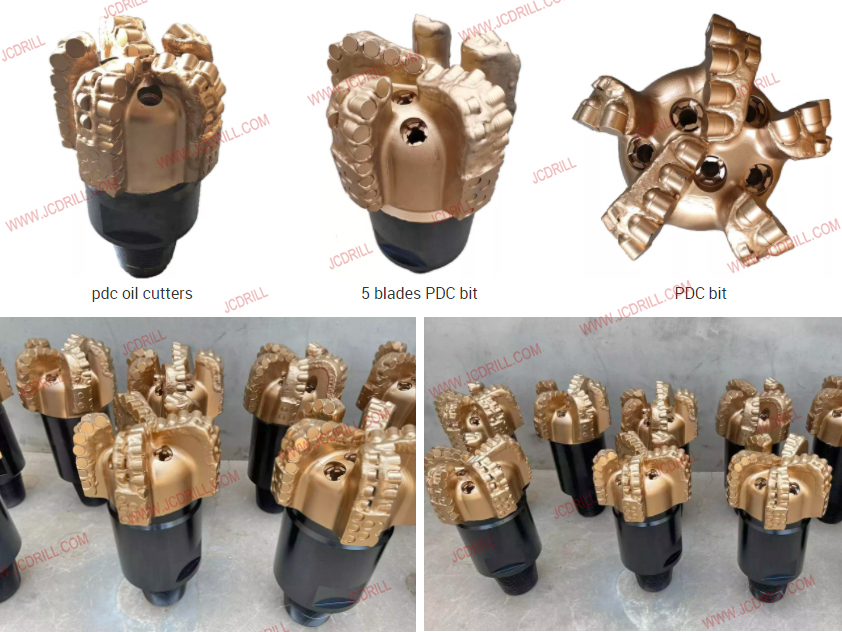

    jcdrill-pdc-drill-bit



    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
