11 5/8 Inch Iadc 537 Tci Tricone Rock Bit For Oil Water Well Drilling

Short Description:

Applicable Industries: Construction works , Energy & Mining
Size: 11 5/8”,295.3 mm
Thread type: 6 5/8″ PIN API REG
IADC 517/537/617/637
Weight (KG): 80
Brand Name: JCDRILL
Packing Size  350X350X500 mm
Material: High Manganese Steel
Bearing  O-Ring Sealed Journal Bearing
Normal WOB  0.35~1.05 KN/MM
Rotary Speed 120~50RPM
Packing: Wooden Case

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Detail

    Application

    The tricone bit produced by our company conforms to international drilling contractor association-IADC code
    According to pratical experiences of home and abroad
    We will recommend the weight on bit, rotary speed requirement, and air requirements to customers
    The weight on bit
    According to pratical experiences of home and abroad,The selection of drilling pressure should consider the physical and
    mechanical properties of rock and the drillability of rock, the bearing capacity of bit and the technical performance of drill
    rig.
    Rotary Speed Requirement
    Experience has shown that under such circumstances that the cuttings can be well removed from the hole, the RPM possesses of a proximate linear relationship with penetration rate within a certain range. As the RPM is increased, the penetration rate will increase with relation to formation characteristics.
    Air Requirements
    Compressed air is widely used for blowing cuttings in rotary blast hold drilling rig. It serves two important functions; One is
    to clean and remove cuttings from the hole bottom with sufficient air volume, and the other is to cool and flush the bearing
    surfaces of bit for increasing rotary speed and obtaining longer bit life.

    TRICONE-BITS-ADVANTAGE

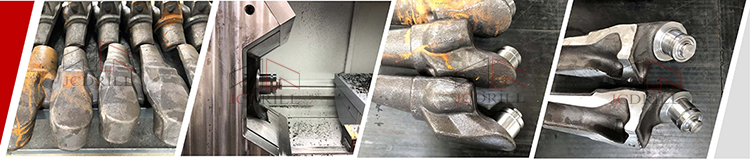

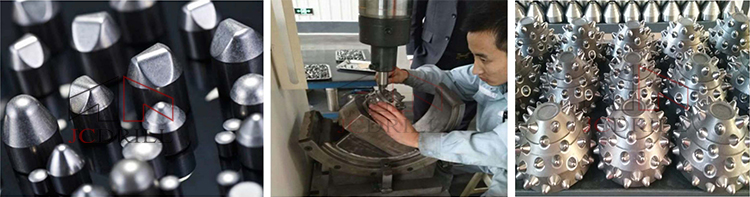

    water drilling tricone bits (1) water drilling tricone bits (2)

    Guidance of Tricone Bit Choice

    IADC WOB(KN/mm) RPM(r/min) APPLICABLE FORMATIONS
    114/116/117 0.3~0.75 180~60 Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
    124/126/127 0.3~0.85 180~60 Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
    134/135/136/137 0.3~0.95 150~60 Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
    214/215/216/217 0.35~0.95 150~60 Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
    227 0.35~0.95 150~50 Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
    Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

    Guidance of tricone Bits ChoiceTricone Bits Tooth Type
    Excellent Material 3 7/8  Tricone Bit Roller Cone Well Drilling Bit Roller Cones Cutter Bit

    Bits Size

    Bit Size API REG PIN Torque Weight
    Inch mm Inch KN.M Kgs
    3 3/8 85.7 2 3/8 4.1-4.7 4.0-6.0
    3 1/2 88.9 4.2-6.2
    3 7/8 98.4 4.8-6.8
    4 1/4 108 5.0-7.5
    4 1/2 114.3 5.4-8.0
    4 5/8 117.5 2 7/8 6.1-7.5 7.5-8.0
    4 3/4 120.7 7.5-8.0
    5 1/8 130.2 3 1/2 9.5-12.2 10.3-11.5
    5 1/4 133.4 10.7-12.0
    5 5/8 142.9 12.6-13.5
    5 7/8 149.2 13.2-13.5
    6 152.4 13.6-14.5
    6 1/8 155.6 14.0-15.0
    6 1/4 158.8 14.4-18.0
    6 1/2 165.1 14.5-20.0
    6 3/4 171.5 20.0-22.0
    7 1/2 190.5 4 1/2 16.3-21.7 28.0-32.0
    7 5/8 193.7 32.3-34.0
    7 7/8 200 33.2-35.0
    8 3/8 212.7 38.5-41.5
    8 1/2 215.9 39.0-42.0
    8 5/8 219.1 40.5-42.5
    8 3/4 222.3 40.8-43.0
    9 1/2 241.3 6 5/8 38-43.4 61.5-64.0
    9 5/8 244.5 61.8-65.0
    9 7/8 250.8 62.0-67.0
    10 254 68.0-75.0
    10 1/2 266.7 72.0-80.0
    10 5/8 269.9 72.0-80.0
    11 1/2 292.1 79.0-90.0
    11 5/8 295.3 79.0-90.0
    12 1/4 311.2 95.0-102.
    12 3/8 314.3 95.0-102.2
    12 1/2 317.5 96.0-103.0
    13 1/2 342.9 105.0-134.0
    13 5/8 346.1 108.0-137.0
    14 3/4 374.7 7 5/8 46.1-54.2 140.0-160.0
    15 381 145.0-165.0
    15 1/2 393.7 160.0-180.0
    16 406.4 200.0-220.0
    17 1/2 444.5 260.0-280.0
    26 660.4 725.0-780.0

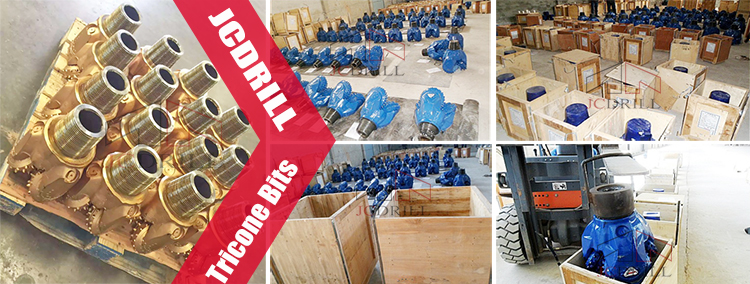

    Tricone bits shipment

    TRICONE-BITS-PACKAGE

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
