10 5/8 Inch Tci Tricone Drill Bit Iadc 537 Rock Bit Manufacturer Factory Price On Sale For Water Well Drilling

Short Description:

Applicable Industries: Construction works , Energy & Mining
Size: 10 5/8 inch,269.9mm
Thread type: 6 5/8″ PIN API REG
IADC 517/537/617/637
Weight (KG): 75
Brand Name: JCDRILL
Machine Type: Drilling Equipment
Material: High Manganese Steel
Processing Type: Forging
Usage: Well driling
MOQ: 1 Piece
Packing: Wooden Case

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Detail

    Application

    Tricone bits, which some may also call roller cone bits or tri-cone bits, The roller cone bit is the most widely used tool in petroleum drilling and geological drilling. Tricone bit has the function of impacting, crushing and shearing rock in formation, so it can adapt to soft, medium and hard formation. The cone bit can be divided into milling (steel teeth) cone bit and TCI cone bit according to the type of teeth.

    Characteristics

    1. High temperature heat treatment forged .

    2. Carbide teeth with high strength and toughness work more efficiently.

    3. Tooth palm lip hard welding surface with hard alloy ,Effectively prevent the drill bit wear and tear work.

    4. Head OD protection to effectively reduce head wear in abrasive formation and extend bit work.

    5.Directional jet enlarges lateral flow area and helpful bottom hole cleaning and increase of ROP.

    6. Lubricating system protection of bearing and seal system of bit extend bit work life.

    7. API REG Connection.

    TRICONE-BITS-ADVANTAGE

    Tricone bits Structure

    tricone-bits-structure

    Guidance of Tricone Bit Choice

    IADC WOB(KN/mm) RPM(r/min) APPLICABLE FORMATIONS
    114/116/117 0.3~0.75 180~60 Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
    124/126/127 0.3~0.85 180~60 Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
    134/135/136/137 0.3~0.95 150~60 Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
    214/215/216/217 0.35~0.95 150~60 Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
    227 0.35~0.95 150~50 Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
    Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

    Guidance of tricone Bits ChoiceTricone Bits Tooth Type
    Excellent Material 3 7/8  Tricone Bit Roller Cone Well Drilling Bit Roller Cones Cutter Bit

    Bits Size

    Bit Size API REG PIN Torque Weight
    Inch mm Inch KN.M Kgs
    3 3/8 85.7 2 3/8 4.1-4.7 4.0-6.0
    3 1/2 88.9 4.2-6.2
    3 7/8 98.4 4.8-6.8
    4 1/4 108 5.0-7.5
    4 1/2 114.3 5.4-8.0
    4 5/8 117.5 2 7/8 6.1-7.5 7.5-8.0
    4 3/4 120.7 7.5-8.0
    5 1/8 130.2 3 1/2 9.5-12.2 10.3-11.5
    5 1/4 133.4 10.7-12.0
    5 5/8 142.9 12.6-13.5
    5 7/8 149.2 13.2-13.5
    6 152.4 13.6-14.5
    6 1/8 155.6 14.0-15.0
    6 1/4 158.8 14.4-18.0
    6 1/2 165.1 14.5-20.0
    6 3/4 171.5 20.0-22.0
    7 1/2 190.5 4 1/2 16.3-21.7 28.0-32.0
    7 5/8 193.7 32.3-34.0
    7 7/8 200 33.2-35.0
    8 3/8 212.7 38.5-41.5
    8 1/2 215.9 39.0-42.0
    8 5/8 219.1 40.5-42.5
    8 3/4 222.3 40.8-43.0
    9 1/2 241.3 6 5/8 38-43.4 61.5-64.0
    9 5/8 244.5 61.8-65.0
    9 7/8 250.8 62.0-67.0
    10 254 68.0-75.0
    10 1/2 266.7 72.0-80.0
    10 5/8 269.9 72.0-80.0
    11 1/2 292.1 79.0-90.0
    11 5/8 295.3 79.0-90.0
    12 1/4 311.2 95.0-102.
    12 3/8 314.3 95.0-102.2
    12 1/2 317.5 96.0-103.0
    13 1/2 342.9 105.0-134.0
    13 5/8 346.1 108.0-137.0
    14 3/4 374.7 7 5/8 46.1-54.2 140.0-160.0
    15 381 145.0-165.0
    15 1/2 393.7 160.0-180.0
    16 406.4 200.0-220.0
    17 1/2 444.5 260.0-280.0
    26 660.4 725.0-780.0

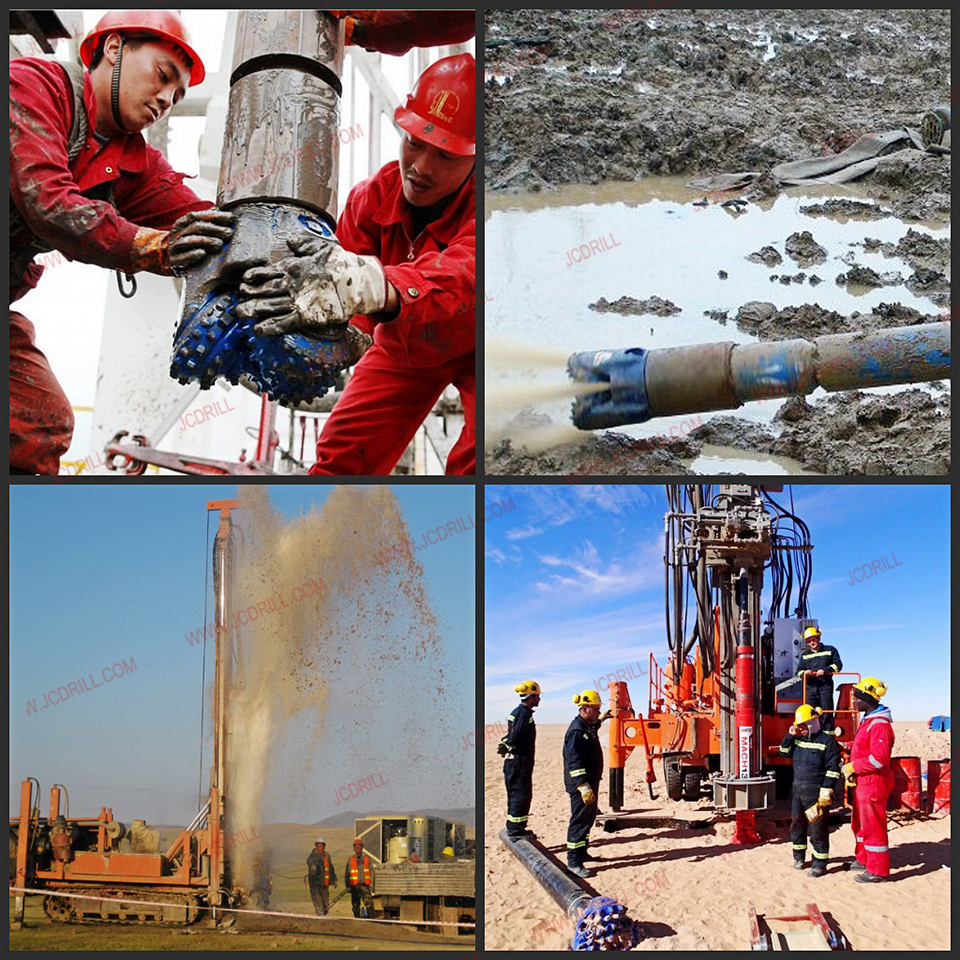

    TCI TRICONE BITS IN PROJECT

    tci-tricone-bit

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
